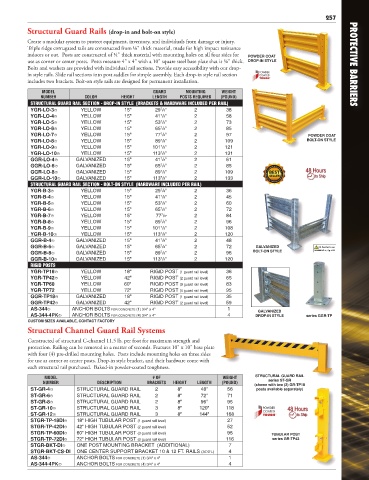

Page 251 - Vestil Catalog 112

257

Structural Guard Rails (drop-in and bolt-on style)
Create a modular system to protect equipment, inventory, and individuals from damage or injury.
Triple ridge corrugated rails are constructed from ⅛" thick material, made for high impact resistance
indoors or out. Posts are constructed of ¼" thick material with mounting holes on all four sides for POWDER COAT
use as corner or center posts. Posts measure 4" x 4" with a 10" square steel base plate that is ⅝" thick. DROP-IN STYLE
Bolts and washers are provided with individual rail sections. Provide easy accessibility with our drop- PROTECTIVE BARRIERS
in style rails. Slide rail sections into post saddles for simple assembly. Each drop-in style rail section
includes two brackets. Bolt-on style rails are designed for permanent installation.
MODEL GUARD MOUNTING WEIGHT
NUMBER COLOR HEIGHT LENGTH POSTS REQUIRED (POUND)
STRUCTURAL GUARD RAIL SECTION - DROP-IN STYLE (BRACKETS & HARDWARE INCLUDED PER RAIL)
YGR-LO-3� YELLOW 15" 29 /8" 2 38
7
7
YGR-LO-4� YELLOW 15" 41 /8" 2 58
7
YGR-LO-5� YELLOW 15" 53 /8" 2 73
7
YGR-LO-6� YELLOW 15" 65 /8" 2 85
7
YGR-LO-7� YELLOW 15" 77 /8" 2 97 POWDER COAT
7
YGR-LO-8� YELLOW 15" 89 /8" 2 109 BOLT-ON STYLE
YGR-LO-9� YELLOW 15" 101 /8" 2 121
7
7
YGR-LO-10� YELLOW 15" 113 /8" 2 131
GGR-LO-4� GALVANIZED 15" 41 /8" 2 61
7
7
GGR-LO-6� GALVANIZED 15" 65 /8" 2 85
7
GGR-LO-8� GALVANIZED 15" 89 /8" 2 109
7
GGR-LO-10� GALVANIZED 15" 113 /8" 2 133
STRUCTURAL GUARD RAIL SECTION - BOLT-ON STYLE (HARDWARE INCLUDED PER RAIL)
7
YGR-B-3� YELLOW 15" 29 /8" 2 36
7
YGR-B-4� YELLOW 15" 41 /8" 2 45
7
YGR-B-5� YELLOW 15" 53 /8" 2 60
7
YGR-B-6� YELLOW 15" 65 /8" 2 72
7
YGR-B-7� YELLOW 15" 77 /8" 2 84
7
YGR-B-8� YELLOW 15" 89 /8" 2 96
7
YGR-B-9� YELLOW 15" 101 /8" 2 108
YGR-B-10� YELLOW 15" 113 /8" 2 120
7
7
GGR-B-4� GALVANIZED 15" 41 /8" 2 48
7
GGR-B-6� GALVANIZED 15" 65 /8" 2 72 GALVANIZED CA Residents see
7
GGR-B-8� GALVANIZED 15" 89 /8" 2 96 BOLT-ON STYLE WARNING A, Pg. 459
7
GGR-B-10� GALVANIZED 15" 113 /8" 2 120
RIGID POSTS
YGR-TP18� YELLOW 18" RIGID POST (1 guard rail level) 36
YGR-TP42� YELLOW 42" RIGID POST (2 guard rail level) 65
YGR-TP60 YELLOW 60" RIGID POST (3 guard rail level) 83
YGR-TP72 YELLOW 72" RIGID POST (4 guard rail level) 95
GGR-TP18� GALVANIZED 18" RIGID POST (1 guard rail level) 35
GGR-TP42� GALVANIZED 42" RIGID POST (2 guard rail level) 59
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
GALVANIZED
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4 DROP-IN STYLE series GGR-TP
CUSTOM SIZES AVAILABLE, CONTACT FACTORY
Structural Channel Guard Rail Systems
Constructed of structural C-channel 11.5 lb. per foot for maximum strength and
protection. Railing can be removed in a matter of seconds. Features 10" x 10" base plate
with four (4) pre-drilled mounting holes. Posts include mounting holes on three sides
for use as corner or center posts. Drop-in style bracket, and their hardware come with
each structural rail purchased. Baked-in powder-coated toughness.
MODEL # OF WEIGHT STRUCTURAL GUARD RAIL
NUMBER DESCRIPTION BRACKETS HEIGHT LENGTH (POUND) series ST-GR
(shown with two (2) GR-TP18
ST-GR-4� STRUCTURAL GUARD RAIL 2 8" 48" 56 posts available separately)
ST-GR-6� STRUCTURAL GUARD RAIL 2 8" 72" 71
ST-GR-8� STRUCTURAL GUARD RAIL 2 8" 96" 95
ST-GR-10� STRUCTURAL GUARD RAIL 3 8" 120" 118
ST-GR-12� STRUCTURAL GUARD RAIL 3 8" 144" 168
STGR-TP-18DI� 18" HIGH TUBULAR POST (1 guard rail level) 27
STGR-TP-42DI� 42" HIGH TUBULAR POST (2 guard rail level) 52
STGR-TP-60DI� 60" HIGH TUBULAR POST (3 guard rail level) 95 TUBULAR POST
STGR-TP-72DI� 72" HIGH TUBULAR POST (3 guard rail level) 116 series GR-TP42
STGR-BKT-DI� ONE POST MOUNTING BRACKET (ADDITIONAL) 7
STGR-BKT-CS-DI ONE CENTER SUPPORT BRACKET 10 & 12 FT. RAILS (ADD'L) 4
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4
