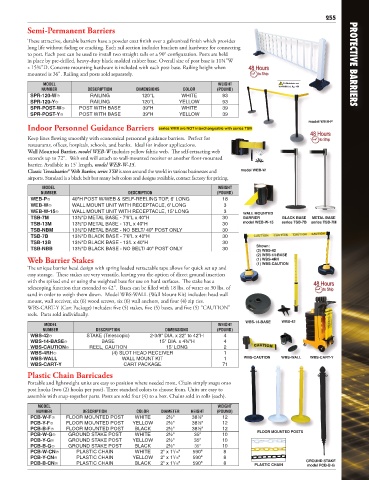

Page 249 - Vestil Catalog 112

255
Semi-Permanent Barriers

These attractive, durable barriers have a powder coat finish over a galvanized finish which provides
long life without fading or cracking. Each rail section includes brackets and hardware for connecting
to post. Each post can be used to install two straight rails or a 90° configuration. Posts are held
in place by pre-drilled, heavy-duty black molded rubber base. Overall size of post base is 11¾"W
x 15¾"D. Concrete mounting hardware is included with each post base. Railing height when PROTECTIVE BARRIERS
mounted is 36". Railing and posts sold separately.

MODEL WEIGHT CA Residents see
NUMBER DESCRIPTION DIMENSIONS COLOR (POUND) WARNING A, Pg. 459
SPR-120-W� RAILING 120"L WHITE 93
SPR-120-Y� RAILING 120"L YELLOW 93
SPR-POST-W� POST WITH BASE 39"H WHITE 39
SPR-POST-Y� POST WITH BASE 39"H YELLOW 39
model WEB-P
Indoor Personnel Guidance Barriers series WEB are NOT interchangeable with series TSB

Keep lines flowing smoothly with economical personnel guidance barriers. Perfect for
restaurants, offices, hospitals, schools, and banks. Ideal for indoor applications.
Wall Mounted Barrier, model WEB-W includes yellow fabric web. The self-retracting web
extends up to 72". Web end will attach to wall-mounted receiver or another floor-mounted
barrier. Available in 15' length, model WEB-W-15.
Classic Tensabarrier® Web Barrier, series TSB is seen around the world in various businesses and model WEB-W
airports. Standard is a black belt but many belt colors and designs available, contact factory for pricing.
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
WEB-P� 40"H POST W/WEB & SELF-REELING TOP, 6' LONG 18
WEB-W� WALL MOUNT UNIT WITH RECEPTACLE, 6' LONG 3
WEB-W-15� WALL MOUNT UNIT WITH RECEPTACLE, 15' LONG 3 WALL MOUNTED
TSB-7M 13½"D METAL BASE - 7'6"L x 40"H 30 BARRIER BLACK BASE METAL BASE
TSB-13M 13½"D METAL BASE - 13'L x 40"H 30 model WEB-W-15 series TSB-7B series TSB-7M
TSB-NBM 13½"D METAL BASE - NO BELT/ 40" POST ONLY 30
TSB-7B 13½"D BLACK BASE - 7'6"L x 40"H 30
TSB-13B 13½"D BLACK BASE - 13'L x 40"H 30 Shown:
TSB-NBB 13½"D BLACK BASE - NO BELT/ 40" POST ONLY 30 (2) WBS-42
(2) WBS-14-BASE
Web Barrier Stakes (1) WBS-4RH
The unique barrier head design with spring loaded retractable tape allows for quick set up and (1) WBS-CAUTION
easy storage. These stakes are very versatile, leaving you the option of direct ground insertion
with the spiked end or using the weighted base for use on hard surfaces. The stake has a
telescoping function that extended to 42". Bases can be filled with 18 lbs. of water or 30 lbs. of
sand in order to weigh them down. Model WBS-WALL (Wall Mount Kit) includes: head wall
mount, wall receiver, six (6) wood screws, six (6) wall anchors, and four (4) zip ties.
WBS-CART-Y (Cart Package) includes: five (5) stakes, five (5) bases, and five (5) "CAUTION"
reels. Parts sold individually.
WBS-14-BASE WBS-42
MODEL WEIGHT
NUMBER DESCRIPTION DIMENSIONS (POUND)
WBS-42� STAKE (Telescopic) 2-3/8" DIA. x 22" to 42"H 4
WBS-14-BASE� BASE 15" DIA. x 4¾"H 4
WBS-CAUTION� REEL, CAUTION 15' LONG 2
WBS-4RH� (4) SLOT HEAD RECEIVER 1
WBS-WALL WALL MOUNT KIT 1 WBS-CAUTION WBS-WALL WBS-CART-Y
WBS-CART-Y CART PACKAGE 71
Plastic Chain Barricades
Portable and lightweight units are easy to position where needed most. Chain simply snaps onto
post hooks (two (2) hooks per post). Three standard colors to choose from. Units are easy to
assemble with snap-together parts. Posts are sold four (4) to a box. Chains sold in rolls (each).
MODEL WEIGHT
NUMBER DESCRIPTION COLOR DIAMETER HEIGHT (POUND)
PCB-W-F� FLOOR MOUNTED POST WHITE 2½" 38½" 12
PCB-Y-F� FLOOR MOUNTED POST YELLOW 2½" 38½" 12
PCB-B-F� FLOOR MOUNTED POST BLACK 2½" 38½" 12
FLOOR MOUNTED POSTS
PCB-W-G� GROUND STAKE POST WHITE 2½" 35" 10
PCB-Y-G� GROUND STAKE POST YELLOW 2½" 35" 10
PCB-B-G� GROUND STAKE POST BLACK 2½" 35" 10
1
PCB-W-CN� PLASTIC CHAIN WHITE 2" x 1 /16" 590" 8
PCB-Y-CN� PLASTIC CHAIN YELLOW 2" x 1 /16" 590" 8
1
1
PCB-B-CN� PLASTIC CHAIN BLACK 2" x 1 /16" 590" 8 PLASTIC CHAIN GROUND STAKE
model PCB-B-G
