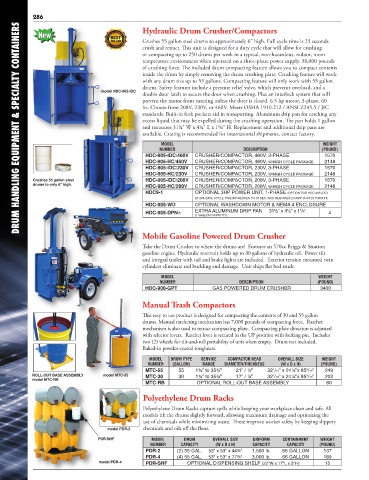

Page 280 - Vestil Catalog 112

286
DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
Hydraulic Drum Crusher/Compactors
New
Crushes 55 gallon steel drums to approximately 6" high. Full cycle time is 25 seconds
crush and retract. This unit is designed for a duty cycle that will allow for crushing
or compacting up to 250 drums per week in a typical, non-hazardous, indoor, room
temperature environment when operated on a three-phase power supply. 38,000 pounds
of crushing force. The included drum compacting feature allows you to compact contents
inside the drum by simply removing the drum crushing plate. Crushing feature will work
with any drum size up to 55 gallons. Compacting feature will only work with 55 gallon
drums. Safety features include a pressure relief valve, which prevents overload, and a
model HDC-905-IDC
double door latch to secure the door when crushing. Plus an interlock system that will
prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60
hz. Choose from 208V, 230V, or 460V. Meets OSHA 1910.212 / ANSI Z245.5 / JIC
standards. Built-in fork pockets aid in transporting. Aluminum drip pan for catching any
excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon
and measures 31½" W x 4½" L x 1 /8" H. Replacement and additional drip pans are
5
available. Crating is recommended for international shipments, contact factory.
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
HDC-905-IDC/460V CRUSHER/COMPACTOR, 460V, 3-PHASE 1570
HDC-905-HC/460V CRUSHER/COMPACTOR, 460V, W/HIGH CYCLE PACKAGE 2148
HDC-905-IDC/230V CRUSHER/COMPACTOR, 230V, 3-PHASE 1570
HDC-905-HC/230V CRUSHER/COMPACTOR, 230V, W/HIGH CYCLE PACKAGE 2148
Crushes 55 gallon steel HDC-905-IDC/208V CRUSHER/COMPACTOR, 208V, 3-PHASE 1570
drums to only 6" high. HDC-905-HC/208V CRUSHER/COMPACTOR, 208V, W/HIGH CYCLE PACKAGE 2148
HDC9-1 OPTIONAL 3HP POWER UNIT, 1-PHASE (OPTION FOR HDC-905-IDC)
AT 208-230V, CYCLE TIME INCREASES TO 70 SEC. AND REQUIRES 20 AMP SUPPLY CIRCUIT.
HDC-905-WD OPTIONAL WASHDOWN MOTOR & NEMA 4 ENCLOSURE
5
HDC-905-DPN EXTRA ALUMINUM DRIP PAN 31½" x 4½" x 1 /8" 4
(1 GALLON CAPACITY)
Mobile Gasoline Powered Drum Crusher

Take the Drum Crusher to where the drums are! Features an 570cc Briggs & Stratton
gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt
and integral trailer with tail and brake lights are included. Exterior tension mounted twin
cylinders eliminate rod buckling and damage. Unit ships flat bed truck.
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
HDC-900-GPT GAS POWERED DRUM CRUSHER 3400

Manual Trash Compactors

This easy to use product is designed for compacting the contents of 30 and 55 gallon
drums. Manual ratcheting mechanism has 7,000 pounds of compacting force. Ratchet
mechanism is also used to retract compacting plate. Compacting plate direction is adjusted
with selector levers. Ratchet lever is secured in the UP position with locking pin. Includes
two (2) wheels for tilt-and-roll portability of unit when empty. Drum not included.
Baked-in powder-coated toughness.

MODEL DRUM TYPE SERVICE COMPACTOR HEAD OVERALL SIZE WEIGHT
NUMBER (GALLON) RANGE DIAMETER/THICKNESS (W x D x H) (POUND)
MTC-55 55 1¼" to 35¾" 21" / ¼" 32 /16" x 24¼"x 85 /16" 249
9
1
ROLL-OUT BASE ASSEMBLY model MTC-55 MTC-30 30 1¼" to 35¾" 17" / ¼" 32 /16" x 24¼"x 85 /16" 202
1
9
model MTC-RB
MTC-RB OPTIONAL ROLL-OUT BASE ASSEMBLY 60
Polyethylene Drum Racks
Polyethylene Drum Racks capture spills while keeping your workplace clean and safe. All
models tilt the drums slightly forward, allowing maximum drainage and optimizing the
use of chemicals while minimizing waste. These improve worker safety by keeping slippery
model PDR-2 chemicals and oils off the floor.
PDR-SHF MODEL DRUM OVERALL SIZE UNIFORM CONTAINMENT WEIGHT
NUMBER CAPACITY (W x D x H) CAPACITY CAPACITY (POUND)
PDR-2 (2) 55 GAL. 53" x 53" x 44¾" 1,500 lb. 66 GALLON 137
PDR-4 (4) 55 GAL. 53" x 53" x 77¾" 3,000 lb. 66 GALLON 189
model PDR-4 PDR-SHF OPTIONAL DISPENSING SHELF (22"W x 17"L x 5"H) 15
