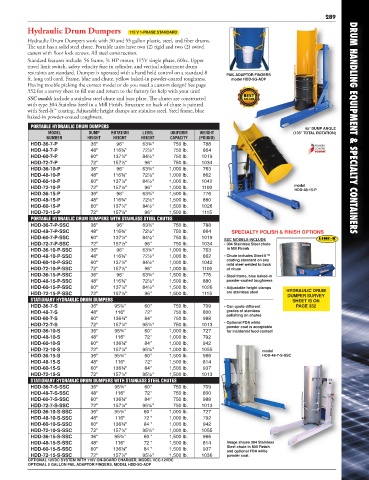

Page 283 - Vestil Catalog 112

289
Hydraulic Drum Dumpers 115 V 1-PHASE STANDARD

Hydraulic Drum Dumpers work with 30 and 55 gallon plastic, steel, and fiber drums.
The unit has a solid steel chute. Portable units have two (2) rigid and two (2) swivel
casters with floor lock screws. All steel construction.
Standard features include: 56 frame, ¾ HP motor, 115V single phase, 60hz. Upper
travel limit switch, safety velocity fuse in cylinder, and vertical adjustment drum
restraints are standard. Dumper is operated with a hand held control on a standard 8 PAIL ADAPTOR FINGERS
ft. long coil cord. Frame, blue and chute, yellow baked-in powder-coated toughness. model HDD-5G-ADP
Having trouble picking the correct model or do you need a custom design? See page
332 for a survey sheet to fill out and return to the factory for help with your unit!
SSC models include a stainless steel chute and base plate. The chutes are constructed
with type 304 Stainless Steel in a Mill Finish. Structure on back of chute is painted
with Steel-It™ coating. Adjustable height clamps are stainless steel. Steel frame, blue
baked-in powder-coated toughness.
PORTABLE HYDRAULIC DRUM DUMPERS 45° DUMP ANGLE DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
MODEL DUMP ROTATION LEVEL UNIFORM WEIGHT (135° TOTAL ROTATION)
NUMBER HEIGHT HEIGHT HEIGHT CAPACITY (POUND)
HDD-36-7-P 36" 96" 63¾" 750 lb. 788
HDD-48-7-P 48" 116¾" 72½" 750 lb. 864
HDD-60-7-P 60" 137¼" 84½" 750 lb. 1019
HDD-72-7-P 72" 157½" 96" 750 lb. 1034
HDD-36-10-P 36" 96" 63¾" 1,000 lb. 763
HDD-48-10-P 48" 116¾" 72½" 1,000 lb. 862
HDD-60-10-P 60" 137¼" 84½" 1,000 lb. 1042
HDD-72-10-P 72" 157½" 96" 1,000 lb. 1100 model
HDD-48-15-P
HDD-36-15-P 36" 96" 63¾" 1,500 lb. 776
HDD-48-15-P 48" 116¾" 72½" 1,500 lb. 880
HDD-60-15-P 60" 137¼" 84½" 1,500 lb. 1026
HDD-72-15-P 72" 157½" 96" 1,500 lb. 1115
PORTABLE HYDRAULIC DRUM DUMPERS WITH STAINLESS STEEL CHUTES
HDD-36-7-P-SSC 36" 96" 63¾" 750 lb. 788
HDD-48-7-P-SSC 48" 116¾" 72½" 750 lb. 864 SPECIALTY POLISH & FINISH OPTIONS
HDD-60-7-P-SSC 60" 137¼" 84½" 750 lb. 1019 SSC MODELS INCLUDE
HDD-72-7-P-SSC 72" 157½" 96" 750 lb. 1034 • 304 Stainless Steel chute
HDD-36-10-P-SSC 36" 96" 63¾" 1,000 lb. 763 in Mill Finish
HDD-48-10-P-SSC 48" 116¾" 72½" 1,000 lb. 862 • Chute includes Steel-It™
HDD-60-10-P-SSC 60" 137¼" 84½" 1,000 lb. 1042 coating standard on any
mild steel welded to back
HDD-72-10-P-SSC 72" 157½" 96" 1,000 lb. 1100 of chute
HDD-36-15-P-SSC 36" 96" 63¾" 1,500 lb. 776 • Steel frame, blue baked-in
HDD-48-15-P-SSC 48" 116¾" 72½" 1,500 lb. 880 powder-coated toughness
HDD-60-15-P-SSC 60" 137¼" 84½" 1,500 lb. 1026 • Adjustable height clamps HYDRAULIC DRUM
HDD-72-15-P-SSC 72" 157½" 96" 1,500 lb. 1115 are stainless steel DUMPER SURVEY
STATIONARY HYDRAULIC DRUM DUMPERS SHEET IS ON
HDD-36-7-S 36" 95¾" 60" 750 lb. 709 • Can quote different PAGE 332
HDD-48-7-S 48" 116" 72" 750 lb. 800 grades of stainless
polishing on chutes
HDD-60-7-S 60" 136¾" 84" 750 lb. 988
HDD-72-7-S 72" 157¼" 95¼" 750 lb. 1013 • Optional FDA white
powder coat is acceptable
HDD-36-10-S 36" 95¾" 60" 1,000 lb. 727 for incidental food contact
HDD-48-10-S 48" 116" 72" 1,000 lb. 792
HDD-60-10-S 60" 136¾" 84" 1,000 lb. 942
HDD-72-10-S 72" 157¼" 95¼" 1,000 lb. 1055 model
HDD-36-15-S 36" 95¾" 60" 1,500 lb. 966 HDD-48-7-S-SSC
HDD-48-15-S 48" 116" 72" 1,500 lb. 814
HDD-60-15-S 60" 136¾" 84" 1,500 lb. 937
HDD-72-15-S 72" 157¼" 95½" 1,500 lb. 1013
STATIONARY HYDRAULIC DRUM DUMPERS WITH STAINLESS STEEL CHUTES
HDD-36-7-S-SSC 36" 95¾" 60" 750 lb. 709
HDD-48-7-S-SSC 48" 116" 72" 750 lb. 800
HDD-60-7-S-SSC 60" 136¾" 84" 750 lb. 988
HDD-72-7-S-SSC 72" 157¼" 95¼" 750 lb. 1013
HDD-36-10-S-SSC 36" 95¾" 60 " 1,000 lb. 727
HDD-48-10-S-SSC 48" 116" 72 " 1,000 lb. 792
HDD-60-10-S-SSC 60" 136¾" 84 " 1,000 lb. 942
HDD-72-10-S-SSC 72" 157¼" 95¼" 1,000 lb. 1055
HDD-36-15-S-SSC 36" 95¾" 60 " 1,500 lb. 966
HDD-48-15-S-SSC 48" 116" 72 " 1,500 lb. 814 Image shows 304 Stainless
HDD-60-15-S-SSC 60" 136¾" 84 " 1,500 lb. 937 Steel chute in Mill Finish
and optional FDA white
HDD-72-15-S-SSC 72" 157¼" 95½" 1,500 lb. 1036 powder coat.
OPTIONAL 12VDC SYSTEM WITH 115V ON-BOARD CHARGER, MODEL VCC-12VDC
OPTIONAL 5 GALLON PAIL ADAPTOR FINGERS, MODEL HDD-5G-ADP
