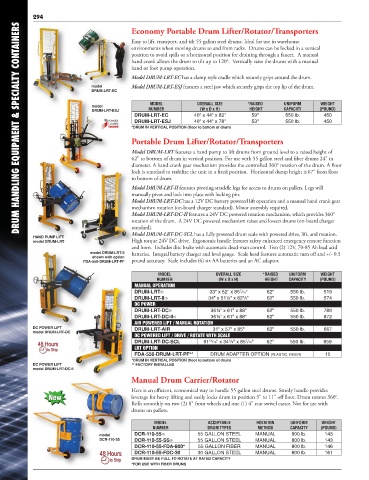

Page 288 - Vestil Catalog 112
P. 288
294
DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
Economy Portable Drum Lifter/Rotator/Transporters
Easy to lift, transport, and tilt 55 gallon steel drums. Ideal for use in warehouse
environments when moving drums to and from racks. Drums can be locked in a vertical
position to avoid spills or a horizontal position for draining through a faucet. A manual
hand crank allows the drum to tilt up to 120°. Vertically raise the drums with a manual
hand or foot pump operation.
Model DRUM-LRT-EC has a clamp style cradle which securely grips around the drum.
model Model DRUM-LRT-ESJ features a steel jaw which securely grips the top lip of the drum.
DRUM-LRT-EC
MODEL OVERALL SIZE *RAISED UNIFORM WEIGHT
model
DRUM-LRT-ESJ NUMBER (W x D x H) HEIGHT CAPACITY (POUND)
DRUM-LRT-EC 40" x 44" x 82" 59" 550 lb. 450
DRUM-LRT-ESJ 40" x 44" x 78" 53" 550 lb. 450
*DRUM IN VERTICAL POSITION (floor to bottom of drum)
Portable Drum Lifter/Rotator/Transporters
Model DRUM-LRT features a hand pump to lift drums from ground level to a raised height of
62" to bottom of drum in vertical position. For use with 55 gallon steel and fiber drums 24" in
diameter. A hand crank gear mechanism provides the controlled 360° rotation of the drum. A floor
lock is standard to stabilize the unit in a fixed position. Horizontal dump height is 67" from floor
to bottom of drum.
Model DRUM-LRT-II features pivoting straddle legs for access to drums on pallets. Legs will
manually pivot and lock into place with locking pin.
Model DRUM-LRT-DC has a 12V DC battery powered lift operation and a manual hand crank gear
mechanism rotation (on-board charger standard). Minor assembly required.
Model DRUM-LRT-DC-II features a 24V DC powered rotation mechanism, which provides 360°
rotation of the drum. A 24V DC powered mechanism raises and lowers drums (on-board charger
standard).
Model DRUM-LRT-DC-SCL has a fully powered drum scale with powered drive, lift, and rotation.
HAND PUMP LIFT
model DRUM-LRT High torque 24V DC drive. Ergonomic handle features safety enhanced emergency remote function
and horn. Includes disc brake with automatic dead-man control. Two (2) 12V, 70-85 Ah lead acid
model DRUM-LRT-II batteries. Integral battery charger and level gauge. Scale head features automatic turn off and +/- 0.5
shown with option
FDA-550-DRUM-LRT-PF pound accuracy. Scale includes (6) six AA batteries and an AC adaptor.
MODEL OVERALL SIZE *RAISED UNIFORM WEIGHT
NUMBER (W x D x H) HEIGHT CAPACITY (POUND)
MANUAL OPERATION
DRUM-LRT 33" x 52" x 85 /16" 62" 550 lb. 519
7
DRUM-LRT-II 34" x 51½" x 82 /8" 62" 550 lb. 574
5
DC POWER
DRUM-LRT-DC 36¼" x 61" x 88" 62" 550 lb. 789
DRUM-LRT-DC-II 36¼" x 61" x 88" 62" 550 lb. 872
AIR POWERED LIFT / MANUAL ROTATION
DC POWER LIFT DRUM-LRT-AIR 31" x 57" x 85" 62" 550 lb. 667
model DRUM-LRT-DC
DC POWERED LIFT / DRIVE / ROTATE WITH SCALE
DRUM-LRT-DC-SCL 61 /16" x 34 /8" x 85 /16" 62" 550 lb. 859
13
5
7
LRT OPTION
FDA-550-DRUM-LRT-PF** DRUM ADAPTER OPTION (PLASTIC, FIBER) 15
*DRUM IN VERTICAL POSITION (floor to bottom of drum)
DC POWER LIFT ** FACTORY INSTALLED
model DRUM-LRT-DC-II
Manual Drum Carrier/Rotator
Here is an efficient, economical way to handle 55 gallon steel drums. Sturdy handle provides
New leverage for heavy lifting and easily locks drum in position 5" to 11" off floor. Drum rotates 360°.
Rolls smoothly on two (2) 8" front wheels and one (1) 4" rear swivel caster. Not for use with
drums on pallets.
MODEL ACCEPTABLE ROTATION UNIFORM WEIGHT
NUMBER DRUM TYPES METHOD CAPACITY (POUND)
model DCR-110-55 55 GALLON STEEL MANUAL 800 lb. 143
DCR-110-55 DCR-110-55-SS 55 GALLON STEEL MANUAL 800 lb. 143
DCR-110-55-FDA-800* 55 GALLON FIBER MANUAL 800 lb. 146
DCR-110-55-FDC-30 30 GALLON STEEL MANUAL 800 lb. 161
DRUM MUST BE FULL TO ROTATE AT RATED CAPACITY
*FOR USE WITH FIBER DRUMS
