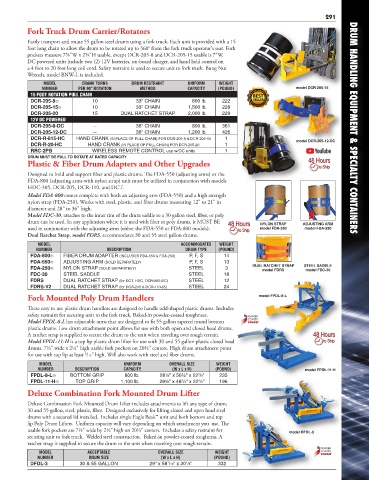

Page 285 - Vestil Catalog 112

291
Fork Truck Drum Carrier/Rotators

Easily transport and rotate 55 gallon steel drums using a fork truck. Each unit is provided with a 15
foot long chain to allow the drum to be rotated up to 360° from the fork truck operator's seat. Fork
pockets measure 7⅝"W x 2⅝"H usable, except DCR-205-8 and DCR-205-15 usable is 7"W.
DC powered units include two (2) 12V batteries, on-board charger, and hand held control on
a 4 foot to 20 foot long coil cord. Safety restraint is used to secure unit to fork truck. Bung Nut
Wrench, model BNW-I, is included.
MODEL CRANK TURNS DRUM RESTRAINT UNIFORM WEIGHT
NUMBER PER 90° ROTATION METHOD CAPACITY (POUND) model DCR-205-15
15 FOOT ROTATION PULL CHAIN
DCR-205-8 10 33" CHAIN 800 lb. 222
DCR-205-15 10 33" CHAIN 1,500 lb. 228
DCR-205-20 15 DUAL RATCHET STRAP 2,000 lb. 229
12V DC POWERED
DCR-205-8-DC -- 36" CHAIN 800 lb. 361 DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
DCR-205-12-DC -- 36" CHAIN 1,200 lb. 426
DCR-R-815-HC HAND CRANK (IN PLACE OF PULL CHAIN) FOR DCR-205-8 & DCR-205-15 1 model DCR-205-12-DC
DCR-R-20-HC HAND CRANK (IN PLACE OF PULL CHAIN) FOR DCR-205-20 1
RRC-2PB WIRELESS REMOTE CONTROL use w/DC units 1
DRUM MUST BE FULL TO ROTATE AT RATED CAPACITY
Plastic & Fiber Drum Adapters and Other Upgrades
Designed to hold and support fiber and plastic drums. The FDA-550 (adjusting arms) or the
FDA-800 (adjusting arms with nylon strap) unit must be utilized in conjunction with models
HDC-305, DCR-205, DCR-110, and DCT.
Model FDA-800 comes complete with both an adjusting arm (FDA-550) and a high strength
nylon strap (FDA-250). Works with steel, plastic, and fiber drums measuring 12" to 21" in
diameter and 28" to 36" high.
Model FDC-30, attaches to the inner rim of the drum saddle so a 30 gallon steel, fiber, or poly
drum can be used. In any application where it is used with fiber or poly drums, it MUST BE NYLON STRAP ADJUSTING ARM
used in conjunction with the adjusting arms (either the FDA-550 or FDA-800 models). model FDA-250 model FDA-550
Dual Ratchet Strap, model FDRS, accommodates 30 and 55 steel gallon drums.
MODEL ACCOMMODATES WEIGHT
NUMBER DESCRIPTION DRUM TYPE (POUND)
FDA-800 FIBER DRUM ADAPTER (INCLUDES FDA-550 & FDA-250) P, F, S 14
FDA-550 ADJUSTING ARM (SOLD SEPARATELY) P, F, S 13
DUAL RATCHET STRAP STEEL SADDLE
FDA-250 NYLON STRAP (SOLD SEPARATELY) STEEL 3 model FDRS model FDC-30
FDC-30 STEEL SADDLE STEEL 18
FDRS DUAL RATCHET STRAP (for DCT, HDC, DCR-205-DC) STEEL 12
FDRS-V2 DUAL RATCHET STRAP (for DCR-205 & DCR-110-55) STEEL 24
Fork Mounted Poly Drum Handlers model FPDL-8-L
These easy to use plastic drum handlers are designed to handle odd-shaped plastic drums. Includes
safety restraint for securing unit to the fork truck. Baked-in powder-coated toughness.
Model FPDL-8-L has adjustable arms that are designed to fit 55 gallon tapered round bottom
plastic drums. Low drum attachment point allows for use with both open and closed head drums.
A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain.
Model FPDL-11-H is a top lip plastic drum lifter for use with 30 and 55 gallon plastic closed head
drums. 7½" wide x 2½" high usable fork pockets on 20½" centers. High drum attachment point
for use with top lip at least /16" high. Will also work with steel and fiber drums.
3
MODEL UNIFORM OVERALL SIZE WEIGHT
NUMBER DESCRIPTION CAPACITY (W x L x H) (POUND) model FPDL-11-H
3
FPDL-8-L BOTTOM GRIP 800 lb. 28½" x 56¼" x 22 /8" 235
3
3
FPDL-11-H TOP GRIP 1,100 lb. 28½" x 48 /8" x 22 /8" 196
Deluxe Combination Fork Mounted Drum Lifter
Deluxe Combination Fork Mounted Drum Lifter includes attachments to lift any type of drum;
30 and 55 gallon, steel, plastic, fiber. Designed exclusively for lifting closed and open head steel
drums with a secured lid installed. Includes single Eagle Beak™ unit and both bottom and top
lip Poly Drum Lifters. Uniform capacity will vary depending on which attachment you use. The
usable fork pockets are 7½" wide by 2½" high on 20½" centers. Includes a safety restraint for model DFDL-3
securing unit to fork truck. Welded steel construction. Baked-in powder-coated toughness. A
ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain.
MODEL ACCEPTABLE OVERALL SIZE WEIGHT
NUMBER DRUM SIZE (W x L x H) (POUND)
DFDL-3 30 & 55 GALLON 29" x 58 /16" x 30 /8" 332
7
1
