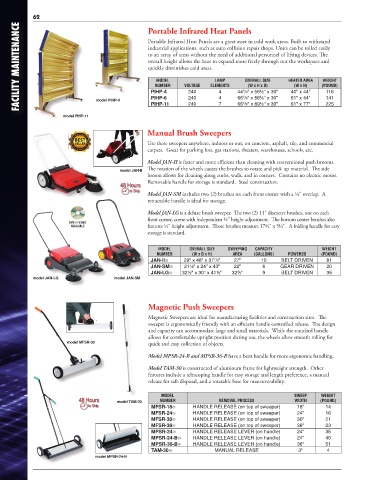

Page 56 - Vestil Catalog 112

62 Portable Infrared Heat Panels
FACILITY MAINTENANCE FACILITIES MAINTENANCE industrial applications, such as auto collision repair shops. Units can be rolled easily

Portable Infrared Heat Panels are a great asset in cold work areas. Built to withstand
to an array of areas without the need of additional personnel of lifting devices. The
overall height allows the heat to expand more freely through out the workspace and
quickly diminishes cold areas.

OVERALL SIZE
MODEL
LAMP
HEATED AREA
WEIGHT
ELEMENTS
VOLTAGE
NUMBER
(W x H)
(W x H x D)
(POUND)
PIHP-4
5
44 /8" x 56½" x 30"
40" x 44"
116
240
4
PIHP-6
5
61" x 44"
66 /8" x 56½" x 30"
240
4
141
model PIHP-4
PIHP-11
5
7
240
model PIHP-11
Manual Brush Sweepers 66 /8" x 89½" x 30" 61" x 77" 225
Use these sweepers anywhere, indoors or out, on concrete, asphalt, tile, and commercial
carpets. Great for parking lots, gas stations, theaters, warehouses, schools, etc.
Model JAN-II is faster and more efficient than cleaning with conventional push brooms.
model JAN-II The rotation of the wheels causes the brushes to rotate and pick up material. The side
broom allows for cleaning along curbs, walls, and in corners. Contains no electric motor.
Removable handle for storage is standard. Steel construction.
Model JAN-SM includes two (2) brushes on each front corner with a ¼" overlap. A
retractable handle is ideal for storage.
Model JAN-LG is a deluxe brush sweeper. The two (2) 11" diameter brushes, one on each
front corner, come with independent ½" height adjustment. The bottom center brushes also
DVD or VIDEO
AVAILABLE features ½" height adjustment. Those brushes measure 17½" x 5½". A folding handle for easy
storage is standard.
MODEL OVERALL SIZE SWEEPING CAPACITY WEIGHT
NUMBER (W x D x H) AREA (GALLONS) POWERED (POUND)
7
JAN-II� 29" x 48" x 37 /8" 27" 10 BELT DRIVEN 81
JAN-SM� 21¼" x 24" x 43" 22" 6 GEAR DRIVEN 20
JAN-LG� 32½" x 30" x 41½" 32½" 9 BELT DRIVEN 35
model JAN-LG model JAN-SM
Magnetic Push Sweepers
Magnetic Sweepers are ideal for manufacturing facilities and construction sites. The
sweeper is ergonomically friendly with an efficient handle controlled release. The design
and capacity can accommodate large and small materials. While the standard handle
allows for comfortable upright position during use, the wheels allow smooth rolling for
model MFSR-30 quick and easy collection of objects.
Model MPSR-24-B and MPSR-36-B have a bent handle for more ergonomic handling.
Model TAM-30 is constructed of aluminum frame for lightweight strength. Other
features include a telescoping handle for easy storage and length preference, a manual
release for safe disposal, and a rotatable base for maneuverability.

MODEL SWEEP WEIGHT
model TAM-30 NUMBER REMOVAL PROCESS WIDTH (POUND)
MFSR-18� HANDLE RELEASE (on top of sweeper) 18" 14
MFSR-24� HANDLE RELEASE (on top of sweeper) 24" 16
MFSR-30� HANDLE RELEASE (on top of sweeper) 30" 21
MFSR-36� HANDLE RELEASE (on top of sweeper) 36" 23
MPSR-24� HANDLE RELEASE LEVER (on handle) 24" 35
MPSR-24-B� HANDLE RELEASE LEVER (on handle) 24" 40
MPSR-36-B� HANDLE RELEASE LEVER (on handle) 36" 51
TAM-30� MANUAL RELEASE 3" 4
model MPSR-24-B
