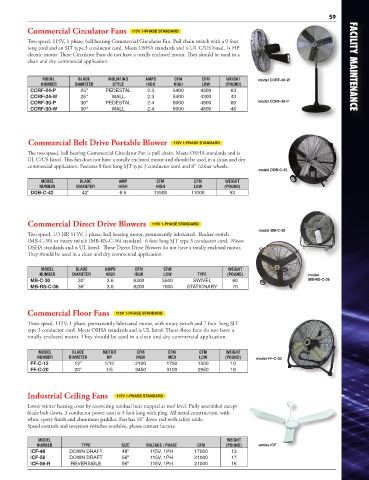

Page 53 - Vestil Catalog 112

59
Commercial Circulator Fans 115V 1-PHASE STANDARD

Two speed, 115V, 1 phase, ball bearing Commercial Circulator Fan. Pull chain switch with a 9 foot
long cord and an SJT type 3 conductor cord. Meets OSHA standards and is UL C/US listed. ¼ HP
electric motor. These Circulator Fans do not have a totally enclosed motor. They should be used in a
clean and dry commercial application. FACILITY MAINTENANCE

MODEL BLADE MOUNTING AMPS CFM CFM WEIGHT model CCRF-30-W
NUMBER DIAMETER STYLE HIGH HIGH LOW (POUND)
CCRF-24-P 25" PEDESTAL 2.3 5400 4300 63
CCRF-24-W 25" WALL 2.3 5400 4300 43
CCRF-30-P 30" PEDESTAL 2.4 6000 4800 66 model CCRF-30-P
CCRF-30-W 30" WALL 2.4 6000 4800 46

Commercial Belt Drive Portable Blower 115V 1-PHASE STANDARD
The two speed, ball bearing Commercial Circulator Fan is pull chain. Meets OSHA standards and is
UL C/US listed. This fan does not have a totally enclosed motor and should be used in a clean and dry
commercial application. Features 8 foot long SJT type 3 conductor cord and 8" rubber wheels.
model DDB-C-42
MODEL BLADE AMP CFM CFM WEIGHT
NUMBER DIAMETER HIGH HIGH LOW (POUND)
DDB-C-42 42" 6.5 13500 11000 93

Commercial Direct Drive Blowers 115V 1-PHASE STANDARD
model MB-C-30
Two speed, 1/3 HP, 115V, 1 phase, ball bearing motor, permanently lubricated. Rocker switch
(MB-C-30) or rotary switch (MB-RS-C-36) standard. 6 foot long SJT type 3 conductor cord. Meets
OSHA standards and is UL listed. These Direct Drive Blowers do not have a totally enclosed motor.
They should be used in a clean and dry commercial application.

MODEL BLADE AMPS CFM CFM WEIGHT
NUMBER DIAMETER HIGH HIGH LOW TYPE (POUND) model
MB-C-30 30" 3.6 6300 5500 SWIVEL 60 MB-RS-C-36
MB-RS-C-36 36" 3.6 8200 7000 STATIONARY 70

Commercial Floor Fans 115V 1-PHASE STANDARD
Three speed, 115V, 1 phase, permanently lubricated motor, with rotary switch and 7 foot long SJT
type 3 conductor cord. Meets OSHA standards and is UL listed. These floor fans do not have a
totally enclosed motor. They should be used in a clean and dry commercial application.

MODEL BLADE MOTOR CFM CFM CFM WEIGHT
NUMBER DIAMETER HP HIGH MED LOW (POUND) model FF-C-20
FF-C-12 12" 1/12 2100 1750 1500 10
FF-C-20 20" 1/5 3450 3100 2950 18

Industrial Ceiling Fans 115V 1-PHASE STANDARD
Lower winter heating costs by recovering residual heat trapped at roof level. Fully assembled except
blade bolt down, 3 conductor power cord is 3 foot long with plug. All metal construction, with
white epoxy finish and aluminum paddles. Fan has 18" down rod with safety cable.
Speed controls and reversion switches available, please contact factory.

MODEL WEIGHT
NUMBER TYPE SIZE VOLTAGE / PHASE CFM (POUND) series ICF
ICF-48 DOWN DRAFT 48" 115V, 1PH 17000 13
ICF-56 DOWN DRAFT 56" 115V, 1PH 21000 17
ICF-56-R REVERSIBLE 56" 115V, 1PH 21000 16
