Narrow Scissor Lift Tables

- - - -

Description
Model Chart
PDF's
Image Gallery

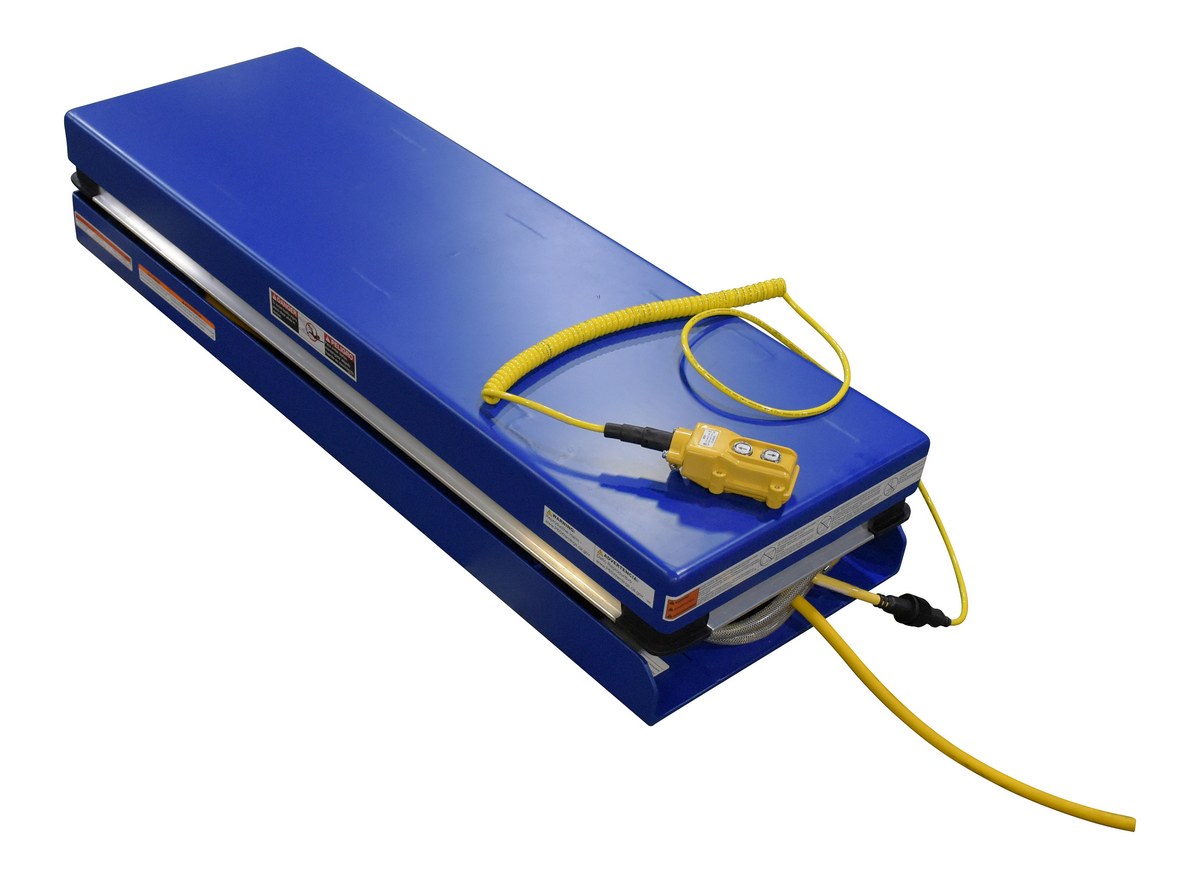

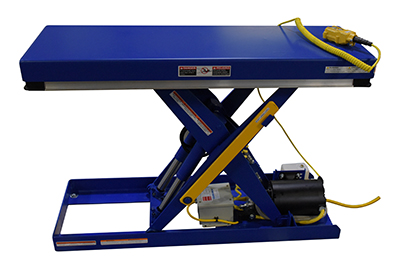

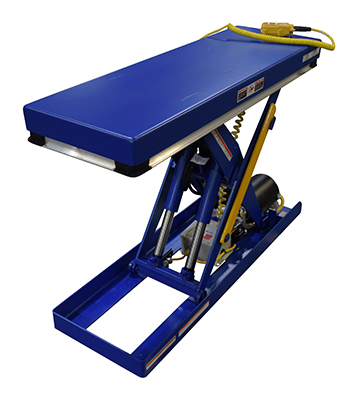

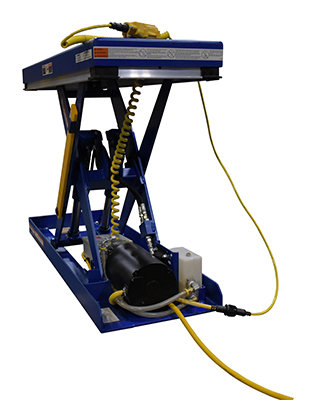

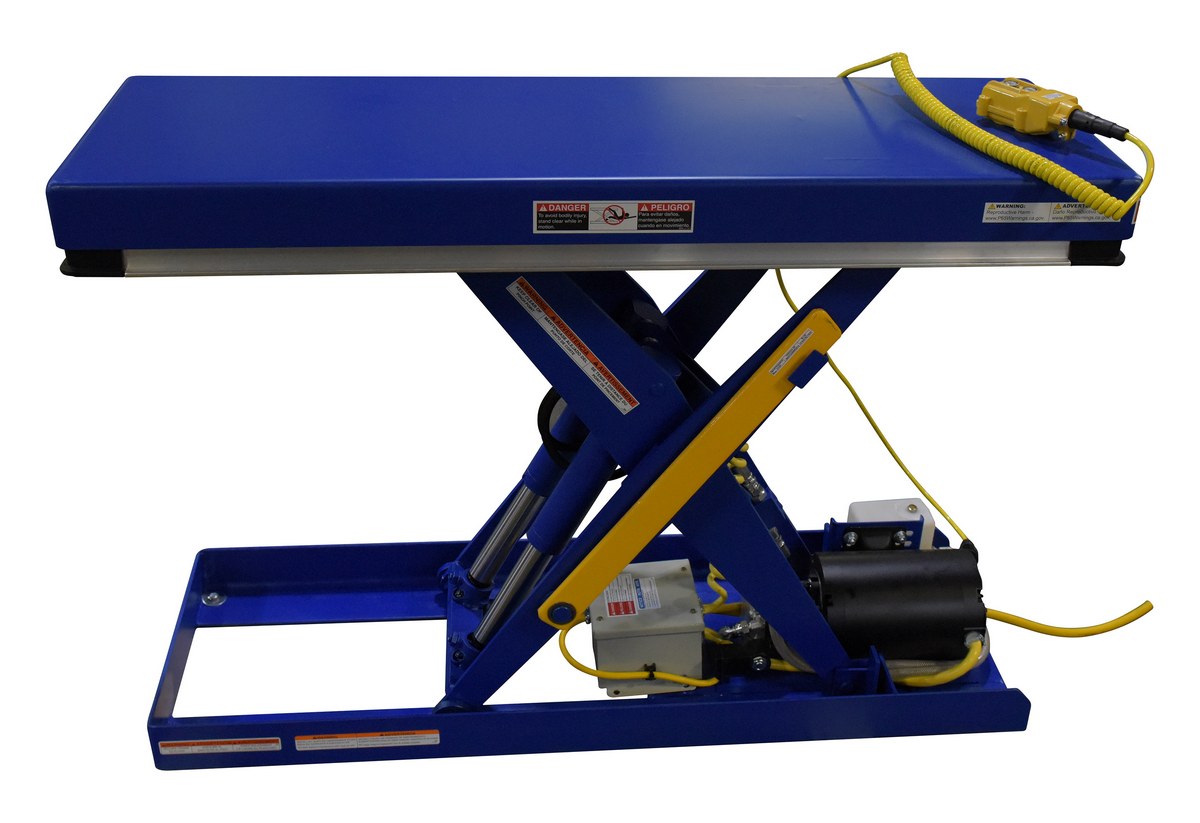

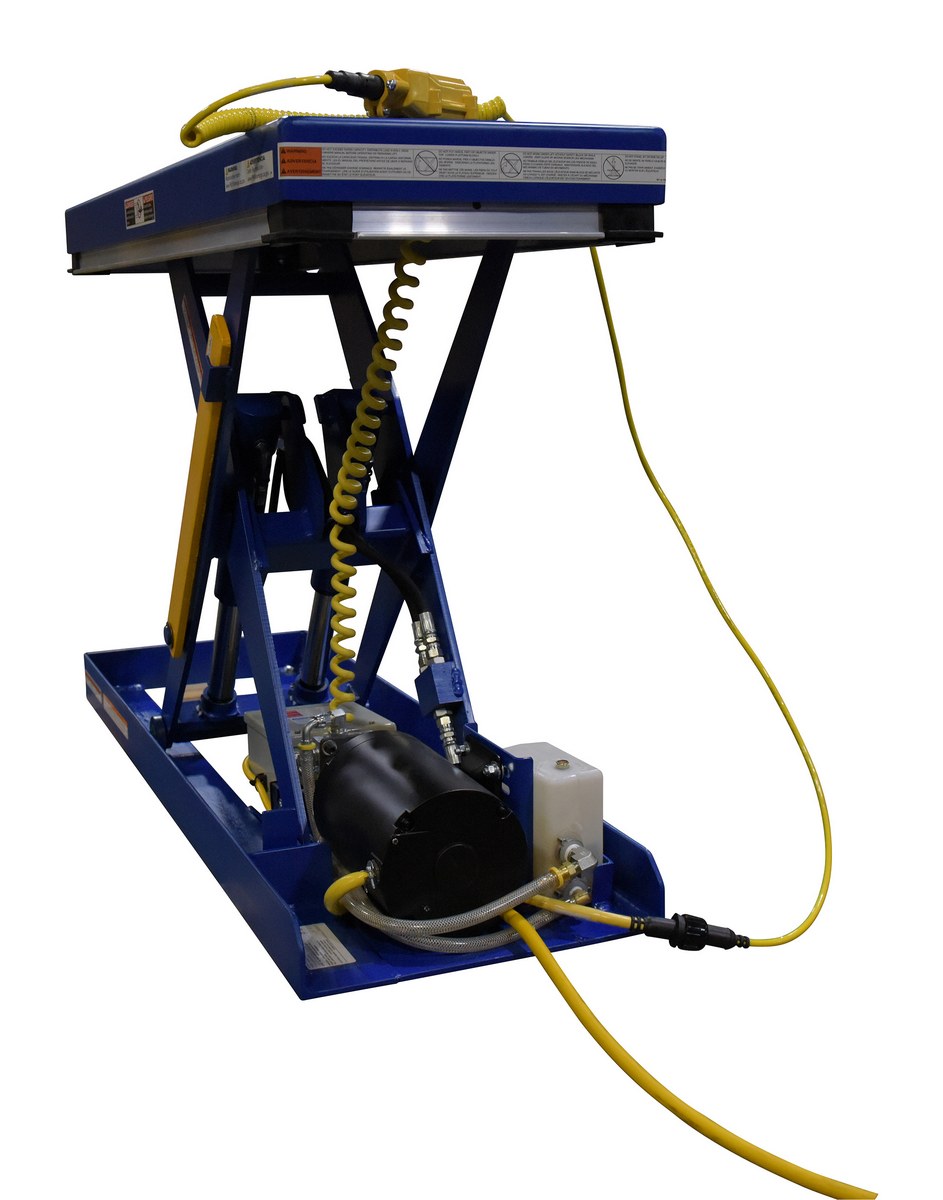

EHLT-N-1648-2-32_A.jpg EHLT-N-1648-2-32_B.jpg EHLT-N-1648-2-32_C.jpg EHLT-N-1648-2-32_D.jpg

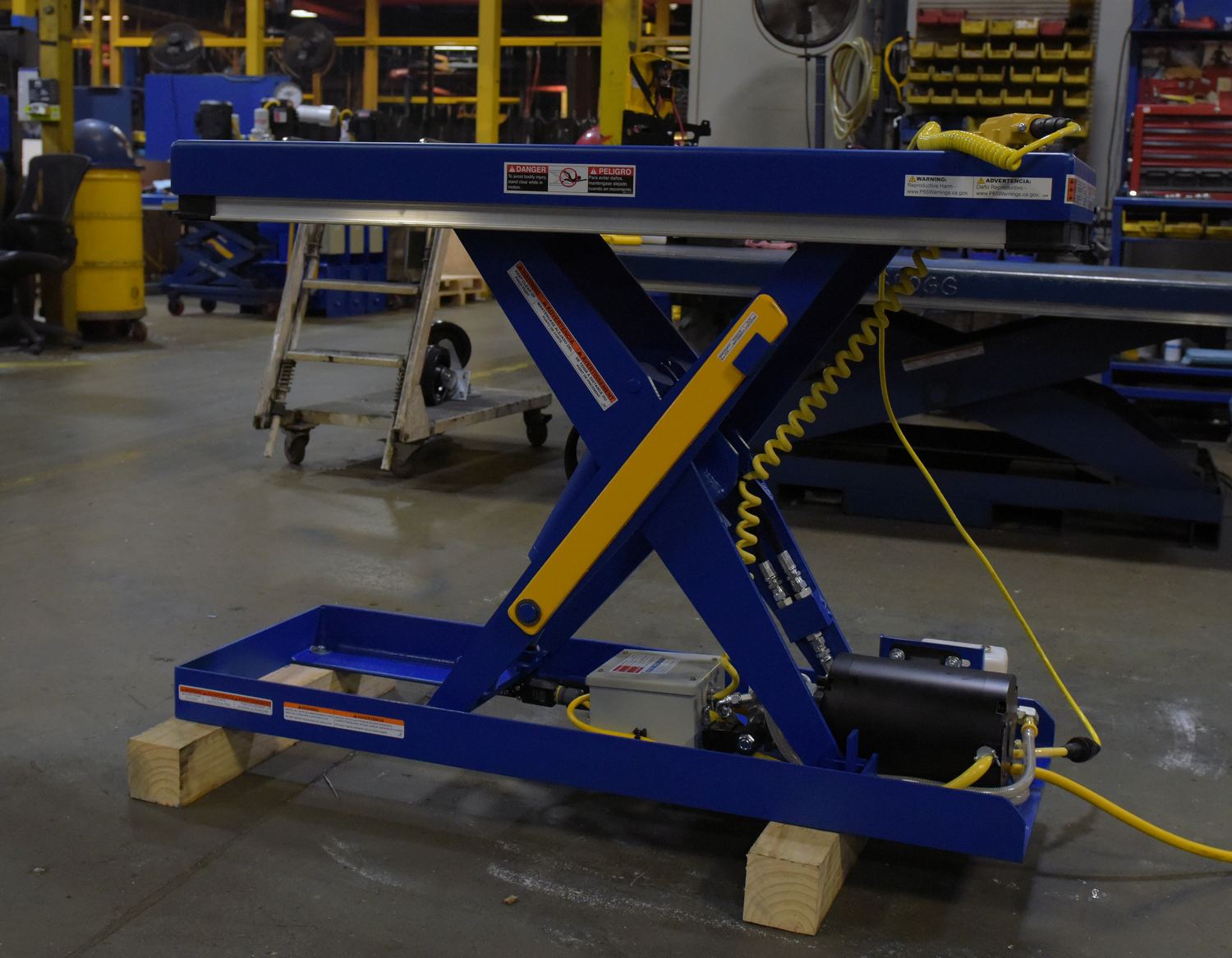

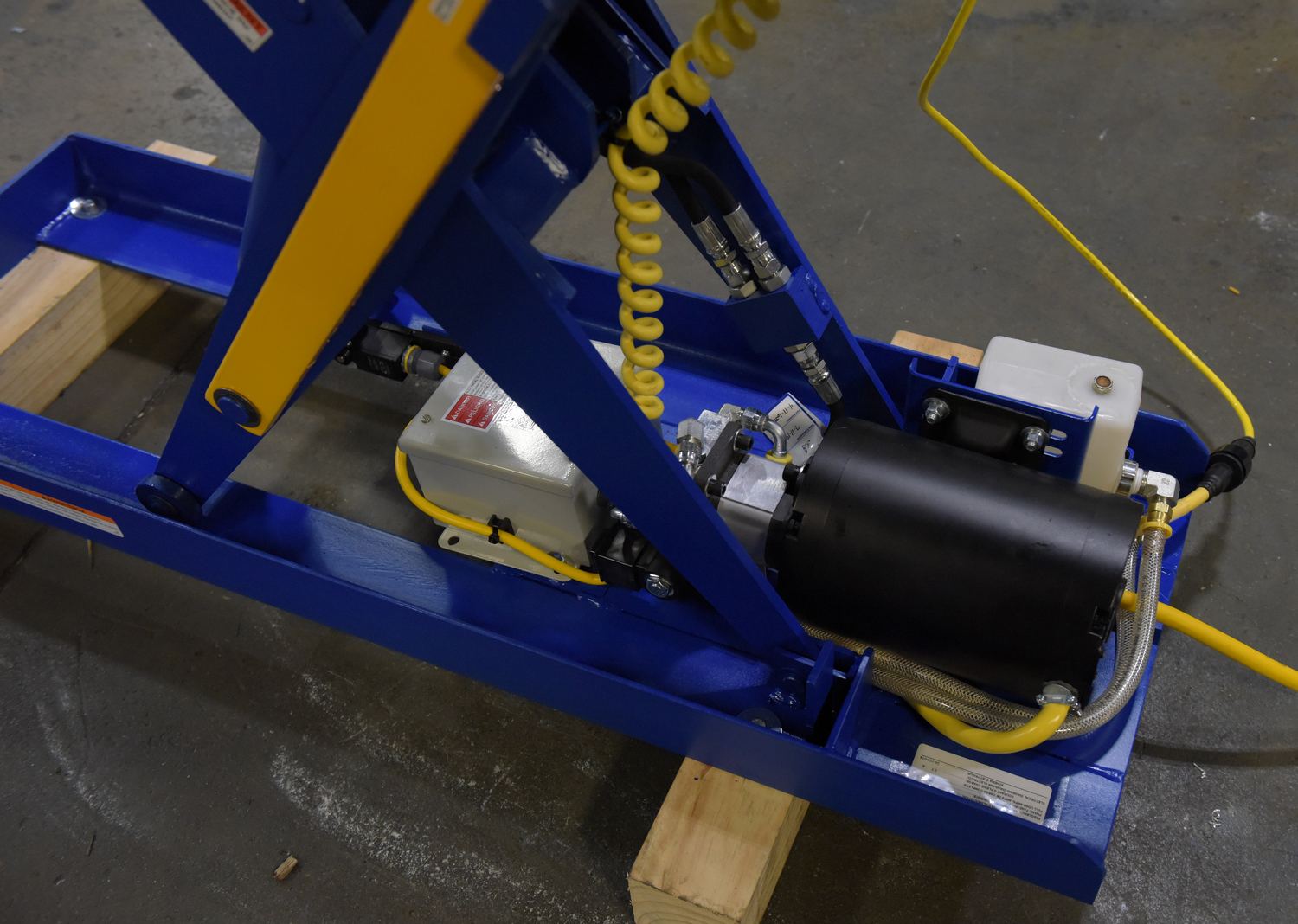

EHLT-N-1648-2-32_1.jpg EHLT-N-1648-2-32_2.jpg
Narrow Scissor Lift Tables

model: EHLT-N-1648-2-32



Featured Ergonomic Solutions


High Rise Lift Trucks
Electric Linear Actuated Table Top Scissor Lift Table
Hydraulic Roll Lifter & Roller Work Positioner
Tote/ Skid Lifters
Economy Semi-Automatic Electric Pallet Trucks
Electric Pallet Truck (Pegasolift)
Roll Material Transporter with DC Powered Lift Feature
Portable Electric Hydraulic Lift Table w/ Attached Hoist
Ergonomic Power Assist Pallet Trucks
model chart

Product Family Overview

Print Friendly
Narrow Scissor Lift Tables
SERIES: EHLT-N

The Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.

  • Electric toe guard protects pinch points while lowering for maximum safety
  • Internal safety velocity fuse maintains platform height in case of hose or fitting failure
  • Displacement-style hydraulic cylinders for maximum strength
  • Standard 56 frame electric motor is a fully enclosed with optional voltages available

The Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.

  • Electric toe guard protects pinch points while lowering for maximum safety
  • Internal safety velocity fuse maintains platform height in case of hose or fitting failure
  • Displacement-style hydraulic cylinders for maximum strength
  • Standard 56 frame electric motor is a fully enclosed with optional voltages available

Other Lift & Tilt Tables

 Integral Scale for Scissor Tables Portable Scissor Lift Tables Rotary Air/Hydraulic Scissor Lift Tables Lift & Tilt Scissor Tables

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHLT-N-1648-1-32
EHLT-N-1648-1-321 Year Limited WarrantySteel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 1000 Lb. Capacity BlueUniform Static Capacity (lb.): 1,000
Raised Height (in.): 32		359
EHLT-N-1648-2-32
EHLT-N-1648-2-321 Year Limited WarrantySteel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 2000 Lb. Capacity BlueUniform Static Capacity (lb.): 2,000
Raised Height (in.): 32		362

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EHLT-N-1648-1-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,000
Raised Height (in.): 32
Uniform Static Capacity (lb.): 1,000
Raised Height (in.): 32

EHLT-N-1648-2-32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2,000
Raised Height (in.): 32
Uniform Static Capacity (lb.): 2,000
Raised Height (in.): 32
Narrow Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


EHLT, EHLTD & PST, 24-126-120
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHLT-N-1648-1-32

EHLT-N-1648-2-32

Testing Certificates


EHLT-N-1648-1-32

EHLT-N-1648-2-32

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLT-N-1648-1-32
Hydraulic Oil SDS Sheet for: EHLT-N-1648-2-32

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
