109

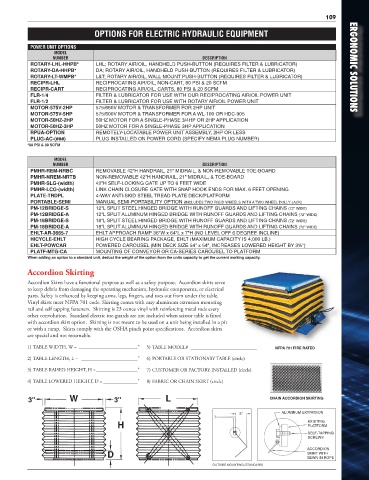

OPTIONS FOR ELECTRIC HYDRAULIC EQUIPMENT

POWER UNIT OPTIONS
MODEL
NUMBER DESCRIPTION
ROTARY-LHL-HHPB* LHL; ROTARY AIR/OIL, HANDHELD PUSH-BUTTON (REQUIRES FILTER & LUBRICATOR) ERGONOMIC SOLUTIONS
ROTARY-DA-HHPB* DA; ROTARY AIR/OIL, HANDHELD PUSH-BUTTON (REQUIRES FILTER & LUBRICATOR)
ROTARY-LT-WMPB* L&T; ROTARY AIR/OIL, WALL-MOUNT PUSH-BUTTON (REQUIRES FILTER & LUBRICATOR)
RECIPR-LHL RECIPROCATING AIR/OIL, NON-CART, 80 PSI & 20 SCFM
RECIPR-CART RECIPROCATING AIR/OIL, CARTS, 80 PSI & 20 SCFM
FLR-1/4 FILTER & LUBRICATOR FOR USE WITH OUR RECIPROCATING AIR/OIL POWER UNIT
FLR-1/2 FILTER & LUBRICATOR FOR USE WITH ROTARY AIR/OIL POWER UNIT
MOTOR-575V-2HP 575/660V MOTOR & TRANSFORMER FOR 2HP UNIT
MOTOR-575V-5HP 575/600V MOTOR & TRANSFORMER FOR A WL-100 OR HDC-905
MOTOR-50HZ-2HP 50HZ MOTOR FOR A SINGLE-PHASE 3/4HP OR 2HP APPLICATION
MOTOR-50HZ-3HP 50HZ MOTOR FOR A SINGLE-PHASE 3HP APPLICATION
RPUA-OPTION REMOTELY-LOCATABLE POWER UNIT ASSEMBLY, 2HP OR LESS
PLUG-AC-(###) PLUG INSTALLED ON POWER CORD (SPECIFY NEMA PLUG NUMBER)
*80 PSI & 80 SCFM

MODEL
NUMBER DESCRIPTION
PMHR-REM-NRBC REMOVABLE 42"H HANDRAIL, 21" MIDRAIL, & NON-REMOVABLE TOE-BOARD
PMHR-NREM-NRTB NON-REMOVABLE 42"H HANDRAIL, 21" MIDRAIL, & TOE-BOARD
PMHR-SLG-(width) 42"H SELF-LOCKING GATE UP TO 6 FEET WIDE
PMHR-LCG-(width) LINK CHAIN CLOSURE GATE WITH SNAP HOOK ENDS FOR MAX. 6 FEET OPENING
PLATE-TRDPL 4-WAY ANTI-SKID STEEL TREAD PLATE DECK/PLATFORM
PORTABLE-SEMI MANUAL SEMI-PORTABILITY OPTION (INCLUDES TWO RIGID WHEELS WITH A TWO WHEEL DOLLY JACK)
PM-12BRIDGE-S 12"L SPLIT STEEL HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
PM-12BRIDGE-A 12"L SPLIT ALUMINUM HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
PM-18BRIDGE-S 18"L SPLIT STEEL HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
PM-18BRIDGE-A 18"L SPLIT ALUMINUM HINGED BRIDGE WITH RUNOFF GUARDS AND LIFTING CHAINS (72" WIDE)
EHLT-AR-3665-7 EHLT APPROACH RAMP 36"W x 64"L x 7"H (NO LEVEL OFF 6 DEGREE INCLINE)
HICYCLE-EHLT HIGH CYCLE BEARING PACKAGE, EHLT (MAXIMUM CAPACITY IS 4,000 LB.)
EHLT-POWCAR POWERED CAROUSEL (MIN DECK SIZE 54" x 54", INCREASES LOWERED HEIGHT BY 3½")
PLATF-MTG-CA MOUNTING OF CONVEYOR OR CA-SERIES CAROUSEL TO PLATFORM
When adding an option to a standard unit, deduct the weight of the option from the units capacity to get the current working capacity.
Accordion Skirting

Accordion Skirts have a functional purpose as well as a safety purpose. Accordion skirts serve
to keep debris from damaging the operating mechanism, hydraulic components, or electrical
parts. Safety is enhanced by keeping arms, legs, fingers, and toes out from under the table.
Vinyl skirts meet NFPA 701 code. Skirting comes with easy aluminum extrusion mounting
rail and self tapping fasteners. Skirting is 23 ounce vinyl with reinforcing metal rods every
other convolution. Standard electric toe-guards are not included when scissor table is fitted
with accordion skirt option. Skirting is not meant to be used on a unit being installed in a pit
or with a ramp. Skirts comply with the OSHA pinch point specifications. Accordion skirts
are special and not returnable.
1) TABLE WIDTH, W = ________________________" 5) TABLE MODEL# ___________________________ NFPA 701 FIRE RATED
2) TABLE LENGTH, L = _______________________" 6) PORTABLE OR STATIONARY TABLE (circle)

3) TABLE RAISED HEIGHT, H = _________________" 7) CUSTOMER OR FACTORY INSTALLED (circle)
4) TABLE LOWERED HEIGHT, D = ______________" 8) FABRIC OR CHAIN SKIRT (circle)

3" W 3" L CHAIN ACCORDION SKIRTING

3" ALUMINUM EXTRUSION
H EXISTING
PLATFORM
SELF-TAPPING
SCREWS
ACCORDION
D SKIRT WITH
SEWN IN ROPE
OUTSIDE MOUNTING (STANDARD)
