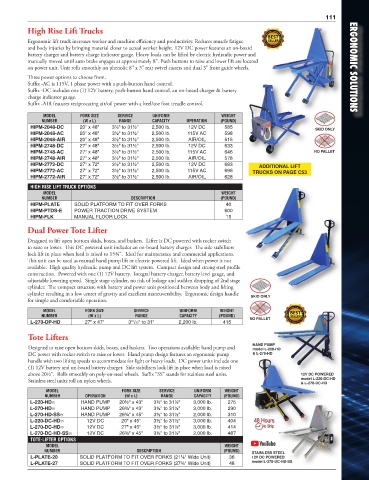

High Rise Lift Trucks

Ergonomic lift truck increases worker and machine efficiency and productivity. Reduces muscle fatigue
and body injuries by bringing material closer to actual worker height. 12V DC power features an on-board
battery charger and battery charge indicator gauge. Heavy loads can be lifted by electric hydraulic power and
manually moved until auto brake engages at approximately 8". Push buttons to raise and lower lift are located
on power unit. Unit rolls smoothly on phenolic 8" x 3" rear swivel casters and dual 3" front guide wheels. ERGONOMIC SOLUTIONS
Three power options to choose from.
Suffix -AC is 115V, 1 phase power with a push-button hand control.
Suffix -DC includes one (1) 12V battery, push-button hand control, an on-board charger & battery
charge indicator gauge.
Suffix -AIR features reciprocating air/oil power with a heel/toe foot treadle control.

MODEL FORK SIZE SERVICE UNIFORM WEIGHT
NUMBER (W x L) RANGE CAPACITY OPERATION (POUND)
HIPM-2048-DC 20" x 48" 3½" to 31½" 2,500 lb. 12V DC 585 SKID ONLY
HIPM-2048-AC 20" x 48" 3½" to 31½" 2,500 lb. 115V AC 598
HIPM-2048-AIR 20" x 48" 3½" to 31½" 2,500 lb. AIR/OIL 515
HIPM-2748-DC 27" x 48" 3½" to 31½" 2,500 lb. 12V DC 633
HIPM-2748-AC 27" x 48" 3½" to 31½" 2,500 lb. 115V AC 646 NO PALLET
HIPM-2748-AIR 27" x 48" 3½" to 31½" 2,500 lb. AIR/OIL 578
HIPM-2772-DC 27" x 72" 3½" to 31½" 2,500 lb. 12V DC 683 ADDITIONAL LIFT
HIPM-2772-AC 27" x 72" 3½" to 31½" 2,500 lb. 115V AC 696 TRUCKS ON PAGE C53
HIPM-2772-AIR 27" x 72" 3½" to 31½" 2,500 lb. AIR/OIL 628
HIGH RISE LIFT TRUCK OPTIONS
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
HIPM-PLATE SOLID PLATFORM TO FIT OVER FORKS 40
HIPM-PTDS-E POWER TRACTION DRIVE SYSTEM 600
HIPM-FLK MANUAL FLOOR LOCK 15
Dual Power Tote Lifter
Designed to lift open bottom skids, boxes, and baskets. Lifter is DC powered with rocker switch
to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers
lock lift in place when load is raised to 15¾". Ideal for maintenance and commercial applications.
This unit can be used as manual hand pump lift or electric powered lift. Ideal when power is not
available. High quality hydraulic pump and DC lift system. Compact design and strong steel profile
construction. Powered with one (1) 12V battery. Integral battery charger, battery level gauge, and
adjustable lowering speed. Single stage cylinder, no risk of leakage and sudden dropping of 2nd stage
cylinder. The compact structure with battery and power unit positioned between body and lifting
cylinder resulting in a low center of gravity and excellent maneuverability. Ergonomic design handle SKID ONLY
for simple and comfortable operation.

MODEL FORK SIZE SERVICE UNIFORM WEIGHT
NUMBER (W x L) RANGE CAPACITY (POUND)
L-270-DP-HD 27" x 47" 3 /32" to 31" 2,200 lb. 415 NO PALLET
11
Tote Lifters
Designed to raise open bottom skids, boxes, and baskets. Two operations available: hand pump and HAND PUMP
model L-220-HD
DC power with rocker switch to raise or lower. Hand pump design features an ergonomic pump & L-270-HD
handle with two lifting speeds to accommodate for light or heavy loads. DC power units include one
(1) 12V battery and on-board battery charger. Side stabilizers lock lift in place when load is raised
above 20½". Rolls smoothly on poly-on-steel wheels. Suffix "SS" stands for stainless steel units. 12V DC POWERED
Stainless steel units roll on nylon wheels. model L-220-DC-HD
& L-270-DC-HD
MODEL FORK SIZE SERVICE UNIFORM WEIGHT
NUMBER OPERATION (W x L) RANGE CAPACITY (POUND)
L-220-HD� HAND PUMP 20½" x 43" 3½" to 31½" 3,000 lb. 275
L-270-HD� HAND PUMP 26¾" x 43" 3½" to 31½" 3,000 lb. 290
L-270-HD-SS� HAND PUMP 26¾" x 45" 3½" to 31½" 2,000 lb. 310
L-220-DC-HD� 12V DC 20" x 45" 3½" to 31½" 3,000 lb. 404
L-270-DC-HD� 12V DC 27" x 45" 3½" to 31½" 3,000 lb. 414
L-270-DC-HD-SS� 12V DC 26¾" x 45" 3½" to 31½" 2,000 lb. 487
TOTE-LIFTER OPTIONS
MODEL WEIGHT
NUMBER DESCRIPTION (POUND) STAINLESS STEEL
L-PLATE-20 SOLID PLATFORM TO FIT OVER FORKS (21¼" Wide Unit) 36 12V DC POWERED
L-PLATE-27 SOLID PLATFORM TO FIT OVER FORKS (27¾" Wide Unit) 48 model L-270-DC-HD-SS
