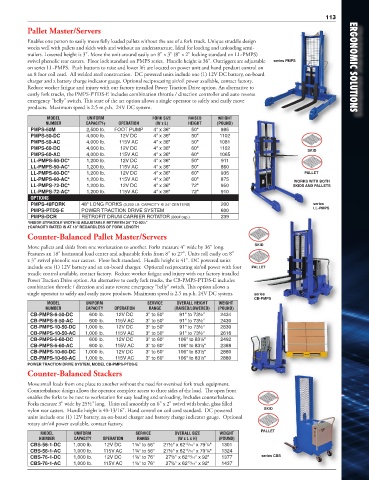

Page 107 - Vestil Catalog 112

113
Pallet Master/Servers

Enables one person to easily move fully loaded pallets without the use of a fork truck. Unique straddle design
works well with pallets and skids with and without an understructure. Ideal for loading and unloading semi-
trailers. Lowered height is 3". Move the unit around easily on 8" x 3" (8" x 2" locking standard on LL-PMPS)
swivel phenolic rear casters. Floor lock standard on PMPS series. Handle height is 36". Outriggers are adjustable series PMPS
on series LL-PMPS. Push buttons to raise and lower lift are located on power unit and hand pendant control on ERGONOMIC SOLUTIONS
an 8 foot coil cord. All welded steel construction. DC powered units include one (1) 12V DC battery, on-board
charger and a battery charge indicator gauge. Optional reciprocating air/oil power available, contact factory.
Reduce worker fatigue and injury with our factory installed Power Traction Drive option. An alternative to
costly fork trucks, the PMPS-PTDS-E includes combination throttle / direction controller and auto reverse
emergency "belly" switch. This state of the art option allows a single operator to safely and easily move
products. Maximum speed is 2.5 m.p.h. 24V DC system.

MODEL UNIFORM FORK SIZE RAISED WEIGHT
NUMBER CAPACITY† OPERATION (W x L) HEIGHT (POUND)
PMPS-50M 2,500 lb. FOOT PUMP 4" x 36" 50" 985
PMPS-50-DC 4,000 lb. 12V DC 4" x 36" 50" 1102
PMPS-50-AC 4,000 lb. 115V AC 4" x 36" 50" 1081
PMPS-60-DC 4,000 lb. 12V DC 4" x 36" 60" 1102 SKID
PMPS-60-AC 4,000 lb. 115V AC 4" x 36" 60" 1065
LL-PMPS-50-DC* 1,200 lb. 12V DC 4" x 36" 50" 911
LL-PMPS-50-AC* 1,200 lb. 115V AC 4" x 36" 50" 860
LL-PMPS-60-DC* 1,200 lb. 12V DC 4" x 36" 60" 935 PALLET
LL-PMPS-60-AC* 1,200 lb. 115V AC 4" x 36" 60" 875 WORKS WITH BOTH
LL-PMPS-72-DC* 1,200 lb. 12V DC 4" x 36" 72" 950 SKIDS AND PALLETS
LL-PMPS-72-AC* 1,200 lb. 115V AC 4" x 36" 72" 910
OPTIONS
PMPS-48FORK 48" LONG FORKS (3,200 LB. CAPACITY @ 24" CENTERS) 200 series
PMPS-PTDS-E POWER TRACTION DRIVE SYSTEM 600 LL-PMPS
PMPS-DCR RETROFIT DRUM CARRIER ROTATOR (800# cap.) 239
*INSIDE STRADDLE WIDTH IS ADJUSTABLE BETWEEN 34" TO 50½"
†CAPACITY RATED IS AT 18" REGARDLESS OF FORK LENGTH
Counter-Balanced Pallet Master/Servers

Move pallets and skids from one workstation to another. Forks measure 4" wide by 36" long. SKID
Features an 18" horizontal load center and adjustable forks from 8" to 27". Units roll easily on 8"
x 3" swivel phenolic rear casters. Floor lock standard. Handle height is 41". DC powered units
include one (1) 12V battery and an on-board charger. Optional reciprocating air/oil power with foot PALLET
treadle control available, contact factory. Reduce worker fatigue and injury with our factory installed
Power Traction Drive option. An alternative to costly fork trucks, the CB-PMPS-PTDS-E includes
combination throttle / direction and auto reverse emergency "belly" switch. This option allows a
single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system. series
CB-PMPS
MODEL UNIFORM SERVICE OVERALL HEIGHT WEIGHT
NUMBER CAPACITY OPERATION RANGE (RAISED/LOWERED) (POUND)
CB-PMPS-6-50-DC 600 lb. 12V DC 3" to 50" 91" to 73½" 2434
CB-PMPS-6-50-AC 600 lb. 115V AC 3" to 50" 91" to 73½" 2430
CB-PMPS-10-50-DC 1,000 lb. 12V DC 3" to 50" 91" to 73½" 2830
CB-PMPS-10-50-AC 1,000 lb. 115V AC 3" to 50" 91" to 73½" 2616
CB-PMPS-6-60-DC 600 lb. 12V DC 3" to 60" 106" to 83½" 2492
CB-PMPS-6-60-AC 600 lb. 115V AC 3" to 60" 106" to 83½" 2388
CB-PMPS-10-60-DC 1,000 lb. 12V DC 3" to 60" 106" to 83½" 2880
CB-PMPS-10-60-AC 1,000 lb. 115V AC 3" to 60" 106" to 83½" 2880
POWER TRACTION DRIVE SYSTEM, MODEL CB-PMPS-PTDS-E
Counter-Balanced Stackers

Move small loads from one place to another without the need for oversized fork truck equipment.
Counterbalance design allows the operator complete access to three sides of the load. The open front
enables the forks to be next to workstation for easy loading and unloading. Includes counterbalance.
Forks measure 3" wide by 25½" long. Units roll smoothly on 6" x 2" swivel with brake, glass filled
nylon rear casters. Handle height is 40-13/16". Hand control on coil cord standard. DC powered SKID
units include one (1) 12V battery, an on-board charger and battery charge indicator gauge. Optional
rotary air/oil power available, contact factory.
MODEL UNIFORM SERVICE OVERALL SIZE WEIGHT PALLET
NUMBER CAPACITY OPERATION RANGE (W x L x H) (POUND)
CBS-56-1-DC 1,000 lb. 12V DC 1¼" to 56" 27½" x 62 /16" x 79 /8" 1301
13
7
CBS-56-1-AC 1,000 lb. 115V AC 1¼" to 56" 27½" x 62 /16" x 79 /8" 1324
7
13
CBS-76-1-DC 1,000 lb. 12V DC 1¼" to 76" 27½" x 62 /16" x 92" 1377 series CBS
13
CBS-76-1-AC 1,000 lb. 115V AC 1¼" to 76" 27½" x 62 /16" x 92" 1437
13
