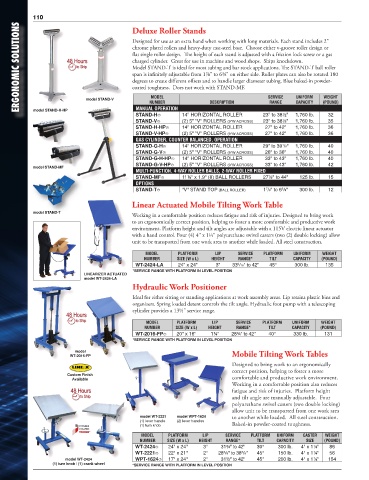

Page 104 - Vestil Catalog 112

110 Deluxe Roller Stands
ERGONOMIC SOLUTIONS chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or

Designed for use as an extra hand when working with long materials. Each stand includes 2"
flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas
charged cylinder. Great for use in machine and wood shops. Ships knockdown.
Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller
span is infinitely adjustable from 1⅞" to 6⅜" on either side. Roller plates can also be rotated 180
degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-
coated toughness. Does not work with STAND-MF.
MODEL
UNIFORM
SERVICE
WEIGHT
model STAND-V
DESCRIPTION
RANGE
NUMBER
MANUAL OPERATION
model STAND-H-HP
32
1,760 lb.
STAND-H� 14" HORIZONTAL ROLLER 23" to 38½" CAPACITY (POUND)
STAND-V� (2) 5" "V" ROLLERS (9"W ACROSS) 23" to 38½" 1,760 lb. 35
STAND-H-HP� 14" HORIZONTAL ROLLER 27" to 42" 1,760 lb. 36
STAND-V-HP� (2) 5" "V" ROLLERS (9"W ACROSS) 27" to 42" 1,760 lb. 36
GAS CYLINDER, COUNTER BALANCED, OPERATION
STAND-G-H� 14" HORIZONTAL ROLLER 29" to 39 /8" 1,760 lb. 40
1
STAND-G-V� (2) 5" "V" ROLLERS (9"W ACROSS) 26" to 36" 1,760 lb. 40
STAND-G-H-HP� 14" HORIZONTAL ROLLER 33" to 43" 1,760 lb. 40
STAND-G-V-HP� (2) 5" "V" ROLLERS (9"W ACROSS) 33" to 43" 1,760 lb. 42
model STAND-MF
MULTI-FUNCTION, 4-WAY ROLLER BALLS, 2-WAY ROLLER FIXED
STAND-MF� 11¼" x 1.9" (8) BALL ROLLERS 27½" to 44" 125 lb. 15
OPTIONS
7
3
STAND-T� "V" STAND TOP (BALL ROLLER) 1 /8" to 6 /8" 300 lb. 12
Linear Actuated Mobile Tilting Work Table
model STAND-T
Working in a comfortable position reduces fatigue and risk of injuries. Designed to bring work
to an ergonomically correct position, helping to foster a more comfortable and productive work
environment. Platform height and tilt angles are adjustable with a 115V electric linear actuator
with a hand control. Four (4) 4" x 1¼" polyurethane swivel casters (two (2) double locking) allow
unit to be transported from one work area to another while loaded. All steel construction.
MODEL PLATFORM LIP SERVICE PLATFORM UNIFORM WEIGHT
NUMBER SIZE (W x L) HEIGHT RANGE* TILT CAPACITY (POUND)
WT-2424-LA 24" x 24" 3" 33 /16" to 42" 45° 300 lb. 135
9
*SERVICE RANGE WITH PLATFORM IN LEVEL POSITION
LINEARIZER ACTUATED
model WT-2424-LA
Hydraulic Work Positioner
Ideal for either sitting or standing applications at work assembly areas. Lip retains plastic bins and
organizers. Spring loaded detent controls the tilt angle. Hydraulic foot pump with a telescoping
cylinder provides a 13¼" service range.
MODEL PLATFORM LIP SERVICE PLATFORM UNIFORM WEIGHT
NUMBER SIZE (W x L) HEIGHT RANGE* TILT CAPACITY (POUND)
WT-2016-FP� 20" x 16" 1¼" 28¾" to 42" 40° 330 lb. 131
*SERVICE RANGE WITH PLATFORM IN LEVEL POSITION
model Mobile Tilting Work Tables
WT-2016-FP
Designed to bring work to an ergonomically
correct position, helping to foster a more
Custom Finish
Available comfortable and productive work environment.
Working in a comfortable position also reduces
fatigue and risk of injuries. Platform height
and tilt angle are manually adjustable. Four
polyurethane swivel casters (two double locking)
allow unit to be transported from one work area
model WT-2221 model WPT-1624 to another while loaded. All steel construction.
(1) lever handle (2) lever handles
(1) turn knob Baked-in powder-coated toughness.
MODEL PLATFORM LIP SERVICE PLATFORM UNIFORM CASTER WEIGHT
NUMBER SIZE (W x L) HEIGHT RANGE* TILT CAPACITY SIZE (POUND)
WT-2424� 24" x 24" 3" 31¾" to 42" 30° 300 lb. 4" x 1¼" 86
3
3
WT-2221� 22" x 21" 2" 28 /8" to 38 /8" 45° 150 lb. 4" x 1¼" 56
model WT-2424 WPT-1624� 17" x 24" 2" 31½" to 42" 45° 200 lb. 4" x 1¼" 154
(1) turn knob / (1) crank wheel *SERVICE RANGE WITH PLATFORM IN LEVEL POSITION
