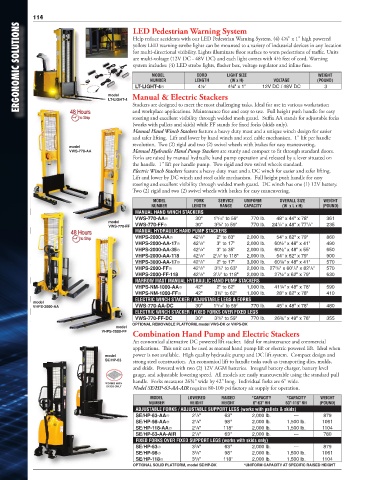

Page 108 - Vestil Catalog 112

114 LED Pedestrian Warning System
ERGONOMIC SOLUTIONS yellow LED warning strobe lights can be mounted to a variety of industrial devices in any location

Help reduce accidents with our LED Pedestrian Warning System. (4) 4¾" x 1" high powered

for multi-directional visibility. Lights illuminate floor surface to warn pedestrians of traffic. Units
are multi-voltage (12V DC - 48V DC) and each light comes with 4½ feet of cord. Warning
system includes: (4) LED strobe lights, flasher box, voltage regulator and inline fuse.
LIGHT SIZE
CORD
WEIGHT
MODEL
(W x H)
VOLTAGE
(POUND)
LENGTH
NUMBER
LT-LIGHT-4�
4½'
12V DC / 48V DC
4¾" x 1"
3
Manual & Electric Stackers
model
LT-LIGHT-4
Stackers are designed to meet the most challenging tasks. Ideal for use in various workstation
and workplace applications. Maintenance free and easy to use. Full height push handle for easy
steering and excellent visibility through welded mesh guard. Suffix AA stands for adjustable forks
(works with pallets and skids) while FF stands for fixed forks (skids only).
Manual Hand Winch Stackers feature a heavy duty mast and a unique winch design for easier
and safer lifting. Lift and lower by hand winch and steel cable mechanism. 1" lift per handle
revolution. Two (2) rigid and two (2) swivel wheels with brakes for easy maneuvering.
model
VWS-770-AA Manual Hydraulic Hand Pump Stackers are sturdy and compact to fit through standard doors.
Forks are raised by manual hydraulic hand pump operation and released by a lever situated on
the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.
Electric Winch Stackers feature a heavy duty mast and a DC winch for easier and safer lifting.
Lift and lower by DC winch and steel cable mechanism. Full height push handle for easy
steering and excellent visibility through welded mesh guard. DC winch has one (1) 12V battery.
Two (2) rigid and two (2) swivel wheels with brakes for easy maneuvering.
MODEL FORK SERVICE UNIFORM OVERALL SIZE WEIGHT
NUMBER LENGTH RANGE CAPACITY (W x L x H) (POUND)
MANUAL HAND WINCH STACKERS
9
VWS-770-AA� 30" 1 /16" to 59" 770 lb. 48" x 44" x 78" 361
model
1
1
3
VWS-770-FF VWS-770-FF� 30" 3 /8" to 59" 770 lb. 24 /2" x 48" x 77 /2" 235
MANUAL HYDRAULIC HAND PUMP STACKERS
1
VHPS-2000-AA� 42 /8" 2" to 63" 2,000 lb. 54" x 62" x 79" 860
VHPS-2000-AA-17� 42 /8" 3" to 17" 2,000 lb. 60½" x 48" x 41" 490
1
VHPS-2000-AA-35� 42 /8" 3" to 35" 2,000 lb. 60½" x 48" x 55" 650
1
VHPS-2000-AA-118 42 /8" 2 /8" to 118" 2,000 lb. 54" x 62" x 79" 900
1
1
1
VHPS-3000-AA-17� 42 /8" 2" to 17" 3,000 lb. 60¼" x 48" x 41" 570
1
1
3
1
3
VHPS-2000-FF� 42 /8" 3 /4" to 63" 2,000 lb. 27 /8" x 60 /4" x 82 /4" 570
VHPS-2000-FF-118 42 /8" 3 /2" to 118" 2,000 lb. 27½" x 62" x 79" 630
1
1
NARROW MAST MANUAL HYDRAULIC HAND PUMP STACKERS
VHPS-NM-1000-AA� 42" 2" to 62" 1,000 lb. 41¼" x 48" x 78" 590
VHPS-NM-1000-FF� 42" 3½" to 62" 1,000 lb. 28" x 62" x 78" 410
ELECTRIC WINCH STACKER / ADJUSTABLE LEGS & FORKS
model
9
VHPS-2000-AA VWS-770-AA-DC 30" 1 /16" to 59" 770 lb. 45" x 48" x 78" 480
ELECTRIC WINCH STACKER / FIXED FORKS OVER FIXED LEGS
VWS-770-FF-DC 30" 3 /8" to 59" 770 lb. 26¾" x 49" x 78" 355
3
OPTIONAL REMOVABLE PLATFORM, model VWS-DK or VHPS-DK
model
Combination Hand Pump and Electric Stackers
VHPS-2000-FF
An economical alternative DC powered lift stacker. Ideal for maintenance and commercial
applications. This unit can be used as manual hand pump lift or electric powered lift. Ideal when
model power is not available. High quality hydraulic pump and DC lift system. Compact design and
SE/HP-63 strong steel construction. An economical lift to handle tasks such as transporting dies, molds,
and skids. Powered with two (2) 12V AGM batteries. Integral battery charger, battery level
gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull
handle. Forks measures 26¾" wide by 42" long. Individual forks are 6" wide.
WORKS WITH
SKIDS ONLY Model SE/HP-63-AA-AIR requires 80-100 psi factory air supply for operation.
MODEL LOWERED RAISED *CAPACITY *CAPACITY WEIGHT
NUMBER HEIGHT HEIGHT 0"-63" RH 63"-118" RH (POUND)
ADJUSTABLE FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
1
SE/HP-63-AA� 2 /8" 63" 2,000 lb. --- 879
1
SE/HP-98-AA� 2 /8" 98" 2,000 lb. 1,500 lb. 1061
SE/HP-118-AA� 2 /8" 118" 2,000 lb. 1,500 lb. 1104
1
SE/HP-63-AA-AIR 2 /8" 63" 2,000 lb. --- 780
1
FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
3
SE/HP-63� 3 /8" 63" 2,000 lb. --- 879
3
SE/HP-98� 3 /8" 98" 2,000 lb. 1,500 lb. 1061
3
SE/HP-118� 3 /8" 118" 2,000 lb. 1,500 lb. 1104
OPTIONAL SOLID PLATFORM, model SE/HP-DK *UNIFORM CAPACITY AT SPECIFIC RAISED HEIGHT
