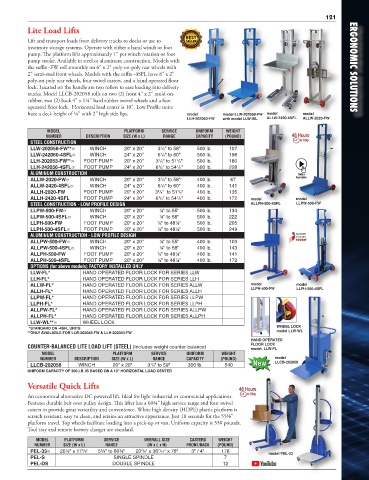

Lite Load Lifts

Lift and transport loads from delivery trucks to docks or use to
inventory storage systems. Operate with either a hand winch or foot
pump. The platform lifts approximately 1" per winch rotation or foot
pump stroke. Available in steel or aluminum construction. Models with
the suffix -FW roll smoothly on 6" x 2" poly-on-poly rear wheels with ERGONOMIC SOLUTIONS
2" semi-steel front wheels. Models with the suffix -4SFL have 8" x 2"
poly-on-poly rear wheels, four swivel casters, and a hand operated floor
lock. Located on the handle are two rollers to ease loading into delivery
trucks. Model LLCB-202058 rolls on two (2) front 4" x 2" mold-on-
rubber, two (2) back 4" x 1¼" hard rubber swivel wheels and a foot
operated floor lock. Horizontal load center is 10". Low Profile units
have a deck height of ¼" with 2" high side lips. model model LLW-202058-FW model model
LLH-202053-FW with model LLW-WL ALLW-2420-4SFL ALLW-2020-FW
MODEL PLATFORM SERVICE UNIFORM WEIGHT
NUMBER DESCRIPTION SIZE (W x L) RANGE CAPACITY (POUND)
STEEL CONSTRUCTION
1
LLW-202058-FW**� WINCH 20" x 20" 3 /8" to 58" 500 lb. 107
1
LLW-242060-4SFL� WINCH 24" x 20" 6 /8" to 60" 500 lb. 198
1
1
LLH-202053-FW**� FOOT PUMP 20" x 20" 3 /8" to 51 /8" 500 lb. 180
1
1
LLH-242056-4SFL� FOOT PUMP 24" x 20" 6 /8" to 54 /8" 500 lb. 228
ALUMINUM CONSTRUCTION
1
ALLW-2020-FW� WINCH 20" x 20" 3 /8" to 58" 400 lb. 67
1
ALLW-2420-4SFL� WINCH 24" x 20" 6 /8" to 60" 400 lb. 141
ALLH-2020-FW FOOT PUMP 20" x 20" 3 /8" to 51 /8" 400 lb. 135
1
1
ALLH-2420-4SFL FOOT PUMP 24" x 20" 6 /8" to 54 /8" 400 lb. 172 model model
1
1
STEEL CONSTRUCTION - LOW PROFILE DESIGN ALLPH-500-4SFL LLPW-500-FW
LLPW-500-FW� WINCH 20" x 20" ¼" to 55" 500 lb. 134
LLPW-500-4SFL� WINCH 20" x 20" ¼" to 58" 500 lb. 222
LLPH-500-FW FOOT PUMP 20" x 20" ¼" to 48¼" 500 lb. 205
LLPH-500-4SFL� FOOT PUMP 20" x 20" ¼" to 48¼" 500 lb. 249
ALUMINUM CONSTRUCTION - LOW PROFILE DESIGN
ALLPW-500-FW� WINCH 20" x 20" ¼" to 55" 400 lb. 103
ALLPW-500-4SFL� WINCH 20" x 20" ¼" to 58" 400 lb. 143
ALLPH-500-FW FOOT PUMP 20" x 20" ¼" to 48¼" 400 lb. 141
ALLPH-500-4SFL FOOT PUMP 20" x 20" ¼" to 48¼" 400 lb. 172
OPTIONS (for above models) FACTORY INSTALLED ONLY
LLW-FL* HAND OPERATED FLOOR LOCK FOR SERIES LLW
LLH-FL* HAND OPERATED FLOOR LOCK FOR SERIES LLH
ALLW-FL* HAND OPERATED FLOOR LOCK FOR SERIES ALLW model model
ALLH-FL* HAND OPERATED FLOOR LOCK FOR SERIES ALLH LLPH-500-FW LLPH-500-4SFL
LLPW-FL* HAND OPERATED FLOOR LOCK FOR SERIES LLPW
LLPH-FL* HAND OPERATED FLOOR LOCK FOR SERIES LLPH
ALLPW-FL* HAND OPERATED FLOOR LOCK FOR SERIES ALLPW
ALLPH-FL* HAND OPERATED FLOOR LOCK FOR SERIES ALLPH
LLW-WL**� WHEEL LOCK
*STANDARD ON -4SFL UNITS WHEEL LOCK
**ONLY AVAILABLE FOR LLW-202058-FW & LLH-202053-FW model LLW-WL
HAND OPERATED
FLOOR LOCK
COUNTER-BALANCED LITE LOAD LIFT (STEEL) (Includes weight counter-balance) model, LLW-FL
MODEL PLATFORM SERVICE UNIFORM WEIGHT
NUMBER DESCRIPTION SIZE (W x L) RANGE CAPACITY (POUND) model
LLCB-202058 WINCH 20" x 20" 3 /8" to 59" 300 lb. 540 New LLCB-202058
1
UNIFORM CAPACITY OF 300 LB. IS BASED ON A 10" HORIZONTAL LOAD CENTER
Versatile Quick Lifts
An economical alternative DC powered lift. Ideal for light industrial or commercial applications.
Features durable belt over pulley design. This lifter has a 60¾" high service range and four swivel
casters to provide great versatility and convenience. White high density (HDPE) plastic platform is
scratch resistant, easy to clean, and retains an attractive appearance. Just 18 seconds for the 55⅜"
platform travel. Top wheels facilitate loading into a pick-up or van. Uniform capacity is 330 pounds.
Tool tray and remote battery charger are standard.
MODEL PLATFORM SERVICE OVERALL SIZE CASTERS WEIGHT
NUMBER SIZE (W x L) RANGE (W x L x H) FRONT/BACK (POUND)
5
PEL-33� 20½" x 17 /8" 5 /8" to 60¾" 20 /8" x 36 /16" x 76" 3" / 4" 178 model PEL-33
3
7
3
PEL-S SINGLE SPINDLE 7
PEL-DS DOUBLE SPINDLE 12
