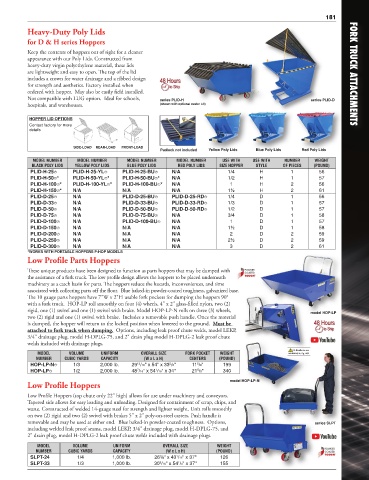

Page 175 - Vestil Catalog 112

181

Heavy-Duty Poly Lids
for D & H series Hoppers
Keep the contents of hoppers out of sight for a cleaner
appearance with our Poly Lids. Constructed from
heavy-duty virgin polyethylene material, these lids
are lightweight and easy to open. The top of the lid FORK TRUCK ATTACHMENTS
includes a crown for water drainage and a ribbed design
for strength and aesthetics. Factory installed when
ordered with hopper. May also be easily field installed.
Not compatible with LUG option. Ideal for schools, series PLID-H series PLID-D
hospitals, and warehouses. (shown with optional caster kit)

HOPPER LID OPTIONS
Contact factory for more
details

SIDE-LOAD REAR-LOAD FRONT-LOAD
Padlock not included Yellow Poly Lids Blue Poly Lids Red Poly Lids
MODEL NUMBER MODEL NUMBER MODEL NUMBER MODEL NUMBER USE WITH USE WITH NUMBER WEIGHT
BLACK POLY LIDS YELLOW POLY LIDS BLUE POLY LIDS RED POLY LIDS SIZE HOPPER STYLE OF PIECES (POUND)
PLID-H-25� PLID-H-25-YL� PLID-H-25-BU� N/A 1/4 H 1 56
PLID-H-50�* PLID-H-50-YL�* PLID-H-50-BU�* N/A 1/2 H 1 57
PLID-H-100�* PLID-H-100-YL�* PLID-H-100-BU�* N/A 1 H 2 56
PLID-H-150�* N/A N/A N/A 1½ H 2 61
PLID-D-25� N/A PLID-D-25-BU� PLID-D-25-RD� 1/4 D 1 56
PLID-D-33� N/A PLID-D-33-BU� PLID-D-33-RD� 1/3 D 1 57
PLID-D-50� N/A PLID-D-50-BU� PLID-D-50-RD� 1/2 D 1 57
PLID-D-75� N/A PLID-D-75-BU� N/A 3/4 D 1 58
PLID-D-100� N/A PLID-D-100-BU� N/A 1 D 1 57
PLID-D-150� N/A N/A N/A 1½ D 1 58
PLID-D-200� N/A N/A N/A 2 D 2 59
PLID-D-250� N/A N/A N/A 2½ D 2 59
PLID-D-300� N/A N/A N/A 3 D 2 61
*WORKS WITH PORTABLE HOPPERS P-HOP MODELS
Low Profile Parts Hoppers
These unique products have been designed to function as parts hoppers that may be dumped with
the assistance of a fork truck. The low profile design allows the hoppers to be placed underneath
machinery as a catch basin for parts. The hoppers reduce the hazards, inconveniences, and time
associated with collecting parts off the floor. Blue baked-in powder-coated toughness, galvanized base.
The 10 gauge parts hoppers have 7"W x 2"H usable fork pockets for dumping the hoppers 90°
with a fork truck. HOP-LP roll smoothly on four (4) wheels, 4" x 2" glass-filled nylon, two (2)
rigid, one (1) swivel and one (1) swivel with brake. Model HOP-LP-N rolls on three (3) wheels, model HOP-LP
two (2) rigid and one (1) swivel with brake. Includes a removable push handle. Once the material
is dumped, the hopper will return to the locked position when lowered to the ground. Must be
attached to fork truck when dumping. Options, including leak proof chute welds, model LEKP,
3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2 leak proof chute
welds included with drainage plugs.
CA Residents see
MODEL VOLUME UNIFORM OVERALL SIZE FORK POCKET WEIGHT WARNING A, Pg. 459
NUMBER CUBIC YARDS CAPACITY (W x L x H) CENTERS (POUND)
5
13
5
HOP-LP-N� 1/3 2,000 lb. 29 /16" x 54" x 33 /8" 11 /8" 199
7
5
1
HOP-LP� 1/2 2,000 lb. 48 /16" x 54 /16" x 34" 21 /8" 340
Low Profile Hoppers model HOP-LP-N
Low Profile Hoppers (top chute only 22" high) allows for use under machinery and conveyors.
Tapered side allows for easy loading and unloading. Designed for containment of scrap, chips, and
waste. Constructed of welded 14-gauge steel for strength and lighter weight. Unit rolls smoothly
on two (2) rigid and two (2) swivel with brakes 5" x 2" poly-on-steel casters. Push handle is
removable and may be used at either end. Blue baked-in powder-coated toughness. Options, series SLPT
including welded leak proof seams, model LEKP, 3/4" drainage plug, model H-DPLG-75, and
2" drain plug, model H-DPLG-2 leak proof chute welds included with drainage plugs.
MODEL VOLUME UNIFORM OVERALL SIZE WEIGHT
NUMBER CUBIC YARDS CAPACITY (W x L x H) (POUND)
SLPT-24 1/4 1,000 lb. 26¼" x 43 /16" x 37" 126
1
SLPT-33 1/3 1,000 lb. 30 /16" x 54 /4" x 37" 155
3
1
