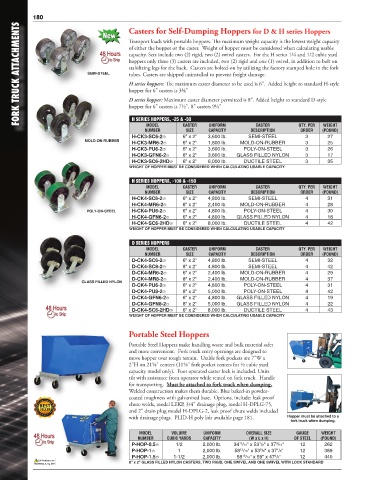

180 New Casters for Self-Dumping Hoppers for D & H series Hoppers
FORK TRUCK ATTACHMENTS SEMI-STEEL of either the hopper or the caster. Weight of hopper must be considered when calculating usable

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity
capacity. Sets include two (2) rigid, two (2) swivel casters. For the H series 1/4 and 1/2 cubic yard
hoppers only three (3) casters are included, two (2) rigid and one (1) swivel, in addition to bolt on
stabilizing legs for the back. Casters are bolted-on by utilizing the factory stamped hole in the fork
tubes. Casters are shipped uninstalled to prevent freight damage.
H series hoppers: The maximum caster diameter to be used is 6". Added height to standard H-style
hopper for 6" casters is 3¾"
D series hopper: Maximum caster diameter permitted is 8". Added height to standard D-style
hopper for 6" casters is 7½", 8" casters 9½"

H SERIES HOPPERS, -25 & -50
MODEL
WEIGHT
CASTER
NUMBER CASTER UNIFORM DESCRIPTION QTY. PER (POUND)
SIZE
ORDER
CAPACITY
H-CK3-SC6-2� 6" x 2" 3,600 lb. SEMI-STEEL 3 27
MOLD-ON-RUBBER
H-CK3-MR6-2� 6" x 2" 1,800 lb. MOLD-ON-RUBBER 3 25
H-CK3-PU6-2� 6" x 2" 3,600 lb. POLY-ON-STEEL 3 26
H-CK3-GFN6-2� 6" x 2" 3,600 lb. GLASS FILLED NYLON 3 17
H-CK3-SC6-2HD� 6" x 2" 6,000 lb. DUCTILE STEEL 3 35
WEIGHT OF HOPPER MUST BE CONSIDERED WHEN CALCULATING USABLE CAPACITY
H SERIES HOPPERS, -100 & -150
MODEL CASTER UNIFORM CASTER QTY. PER WEIGHT
NUMBER SIZE CAPACITY DESCRIPTION ORDER (POUND)
H-CK4-SC6-2� 6" x 2" 4,800 lb. SEMI-STEEL 4 31
H-CK4-MR6-2� 6" x 2" 2,400 lb. MOLD-ON-RUBBER 4 28
POLY-ON-STEEL H-CK4-PU6-2� 6" x 2" 4,800 lb. POLY-ON-STEEL 4 30
H-CK4-GFN6-2� 6" x 2" 4,800 lb. GLASS FILLED NYLON 4 18
H-CK4-SC6-2HD� 6" x 2" 8,000 lb. DUCTILE STEEL 4 42
WEIGHT OF HOPPER MUST BE CONSIDERED WHEN CALCULATING USABLE CAPACITY
D SERIES HOPPERS
MODEL CASTER UNIFORM CASTER QTY. PER WEIGHT
NUMBER SIZE CAPACITY DESCRIPTION ORDER (POUND)
D-CK4-SC6-2� 6" x 2" 4,800 lb. SEMI-STEEL 4 32
D-CK4-SC8-2� 8" x 2" 4,800 lb. SEMI-STEEL 4 42
D-CK4-MR6-2� 6" x 2" 2,400 lb. MOLD-ON-RUBBER 4 29
D-CK4-MR8-2� 8" x 2" 2,400 lb. MOLD-ON-RUBBER 4 37
GLASS FILLED NYLON
D-CK4-PU6-2� 6" x 2" 4,800 lb. POLY-ON-STEEL 4 31
D-CK4-PU8-2� 8" x 2" 5,000 lb. POLY-ON-STEEL 4 42
D-CK4-GFN6-2� 6" x 2" 4,800 lb. GLASS FILLED NYLON 4 19
D-CK4-GFN8-2� 8" x 2" 5,000 lb. GLASS FILLED NYLON 4 22
D-CK4-SC6-2HD� 6" x 2" 8,000 lb. DUCTILE STEEL 4 43
WEIGHT OF HOPPER MUST BE CONSIDERED WHEN CALCULATING USABLE CAPACITY

Portable Steel Hoppers

Portable Steel Hoppers make handling waste and bulk material safer
and more convenient. Fork truck entry openings are designed to
move hopper over rough terrain. Usable fork pockets are 7"W x
2"H on 21⅝" centers (11⅝" fork pocket centers for ½ cubic yard
capacity model only). Foot operated caster lock is included. Units
tilt with assistance from operator while seated on fork truck. Handle
for transporting. Must be attached to fork truck when dumping.
Welded construction makes them durable. Blue baked-in powder-
coated toughness with galvanized base. Options, include: leak proof
chute welds, model LEKP, 3/4" drainage plug, model H-DPLG-75,
and 2" drain plug model H-DPLG-2, leak proof chute welds included
with drainage plugs. PLID-H poly lids available page 181. Hopper must be attached to a
fork truck when dumping.

MODEL VOLUME UNIFORM OVERALL SIZE GAUGE WEIGHT
NUMBER CUBIC YARDS CAPACITY (W x L x H) OF STEEL (POUND)
7
3
13
P-HOP-0.5� 1/2 2,000 lb. 34 /16" x 53 /8" x 37 /16" 12 262
5
P-HOP-1� 1 2,000 lb. 58 /16" x 53 /8" x 37 /8" 12 389
13
1
13
P-HOP-1.5� 1-1/2 2,000 lb. 58 /16" x 59" x 47 /8" 12 440
5
CA Residents see 8" x 2" GLASS FILLED NYLON CASTERS, TWO RIGID, ONE SWIVEL AND ONE SWIVEL WITH LOCK STANDARD
WARNING A, Pg. 459
