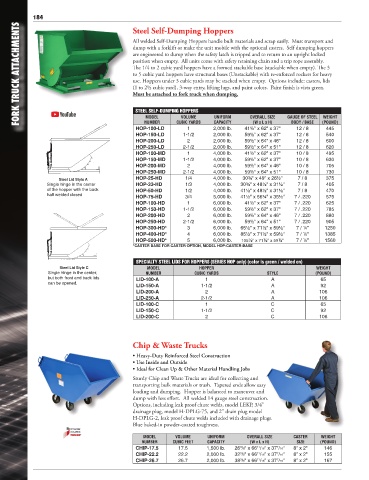

184 Steel Self-Dumping Hoppers
FORK TRUCK ATTACHMENTS dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers

All welded Self-Dumping Hoppers handle bulk materials and scrap easily. Must transport and
are engineered to dump when the safety latch is tripped and to return to an upright locked
position when empty. All units come with safety retaining chain and a trip rope assembly.
The 1/4 to 2 cubic yard hoppers have a formed stackable base (stackable when empty). The 3
to 5 cubic yard hoppers have structural bases (Unstackable) with re-enforced rockers for heavy
use. Hoppers under 3 cubic yards may be stacked when empty. Options include: casters, lids
(1 to 2½ cubic yard), 3-way entry, lifting lugs, and paint colors. Paint finish is vista green.
Must be attached to fork truck when dumping.

STEEL SELF-DUMPING HOPPERS
WEIGHT
MODEL
VOLUME
UNIFORM
OVERALL SIZE
CAPACITY
NUMBER
BODY / BASE
(W x L x H)
HOP-100-LD CUBIC YARDS 2,000 lb. 41½" x 62" x 37" GAUGE OF STEEL (POUND)
1
12 / 8
445
HOP-150-LD 1-1/2 2,000 lb. 59½" x 62" x 37" 12 / 8 540
HOP-200-LD 2 2,000 lb. 59½" x 64" x 46" 12 / 8 600
HOP-250-LD 2-1/2 2,000 lb. 59½" x 64" x 51" 12 / 8 620
HOP-100-MD 1 4,000 lb. 41½" x 62" x 37" 10 / 8 495
HOP-150-MD 1-1/2 4,000 lb. 59½" x 62" x 37" 10 / 8 630
HOP-200-MD 2 4,000 lb. 59½" x 64" x 46" 10 / 8 705
HOP-250-MD 2-1/2 4,000 lb. 59½" x 64" x 51" 10 / 8 730
Steel Lid Style A HOP-25-HD 1/4 4,000 lb. 30¾" x 49" x 26½" 7 / 8 375
Single hinge in the center HOP-33-HD 1/3 4,000 lb. 30¾" x 48½" x 31½" 7 / 8 405
of the hopper with the back HOP-50-HD 1/2 4,000 lb. 41½" x 48½" x 31½" 7 / 8 470
half welded closed HOP-75-HD 3/4 5,000 lb. 41½" x 56¾" x 35½" 7 / .220 575
HOP-100-HD 1 6,000 lb. 41½" x 62" x 37" 7 / .220 625
HOP-150-HD 1-1/2 6,000 lb. 59½" x 62" x 37" 7 / .220 785
HOP-200-HD 2 6,000 lb. 59½" x 64" x 46" 7 / .220 880
HOP-250-HD 2-1/2 6,000 lb. 59½" x 64" x 51" 7 / .220 905
HOP-300-HD* 3 6,000 lb. 65½" x 71½" x 59½" 7 / ¼" 1250
HOP-400-HD* 4 6,000 lb. 85½" x 71½" x 59½" 7 / ¼" 1385
HOP-500-HD* 5 6,000 lb. 105½" x 71½" x 59½" 7 / ¼" 1560
*CASTER BASE FOR CASTER OPTION, MODEL HOP-CASTER-BASE
SPECIALTY STEEL LIDS FOR HOPPERS (SERIES HOP only) (color is green / welded on)
Steel Lid Style C MODEL HOPPER WEIGHT
Single hinge in the center, NUMBER CUBIC YARDS STYLE (POUND)
but both front and back lids LID-100-A 1 A 65
can be opened.
LID-150-A 1-1/2 A 92
LID-200-A 2 A 106
LID-250-A 2-1/2 A 106
LID-100-C 1 C 65
LID-150-C 1-1/2 C 92
LID-200-C 2 C 106

Chip & Waste Trucks

• Heavy-Duty Reinforced Steel Construction
• Use Inside and Outside
• Ideal for Clean Up & Other Material Handling Jobs
Sturdy Chip and Waste Trucks are ideal for collecting and
transporting bulk materials or trash. Tapered ends allow easy
loading and dumping. Hopper is balanced to maneuver and
dump with less effort. All welded 14 gauge steel construction.
Options, including leak proof chute welds, model LEKP, 3/4"
drainage plug, model H-DPLG-75, and 2" drain plug model
H-DPLG-2, leak proof chute welds included with drainage plugs.
Blue baked-in powder-coated toughness.
MODEL VOLUME UNIFORM OVERALL SIZE CASTER WEIGHT
NUMBER CUBIC FEET CAPACITY (W x L x H) SIZE (POUND)
CHIP-17.5 17.5 1,500 lb. 26 /8" x 66 /16" x 37 /16" 8" x 2" 146
3
7
11
CHIP-22.2 22.2 2,000 lb. 32 /8" x 66 /16" x 37 /16" 8" x 2" 155
7
11
3
CHIP-26.7 26.7 2,000 lb. 38 /8" x 66 /16" x 37 /16" 8" x 2" 167
11
7
3
