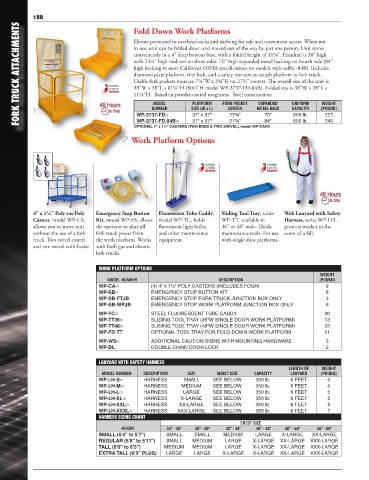

Page 182 - Vestil Catalog 112

188 Fold Down Work Platforms
FORK TRUCK ATTACHMENTS in use, unit can be folded down and moved out of the way by just one person. Unit stores

Elevate personnel to overhead racks and shelving for safe and convenient access. When not
conveniently in a 4" deep bottom base, with a folded height of 11⅝". Handrail is 38" high
with 23½" high mid-rail on three sides. 70" high expanded metal backing on fourth side (84"
high backing to meet California OSHA specifications on models with suffix -84B). Includes
diamond plate platform, tine lock, and a safety restraint to attach platform to fork truck.
Usable fork pockets measure 7⅞"W x 3⅜"H on 27¾" centers. The overall size of the unit is
38"W x 38"L x 81¼"H (80½"H model WP-3737-FD-84B). Folded size is 38"W x 38"L x
11⅝"H. Baked-in powder-coated toughness. Steel construction.
FORK POCKET
WEIGHT
EXPANDED
PLATFORM
MODEL
NUMBER
CAPACITY
METAL BACK
CENTER
SIZE (W x L)
37" x 37"
70"
WP-3737-FD�
227
600 lb.
27¾"
27¾"
84"
245
37" x 37"
600 lb.
WP-3737-FD-84B�
OPTIONAL 4" x 1½" CASTERS (TWO RIGID & TWO SWIVEL), model WP-CAFD UNIFORM (POUND)
Work Platform Options
4" x 1¼" Poly-on-Poly Emergency Stop Button Fluorescent Tube Caddy, Sliding Tool Tray, series Web Lanyard with Safety
Casters, model WP-CA, Kit, model WP-SB, allows model WP-TC, holds WP-TT, available in Harness, series WP-LH,
allows you to move unit the operator to shut off fluorescent light bulbs 36" or 48" wide. Holds protects worker in the
without the use of a fork fork truck power from and other maintenance maintenance tools. For use event of a fall.
truck. Two swivel casters the work platform. Works equipment. with single door platforms.
and two swivel with brake. with both gas and electric
fork trucks.

WORK PLATFORM OPTIONS
WEIGHT
MODEL NUMBER DESCRIPTION (POUND)
WP-CA� (4) 4" x 1¼" POLY CASTERS (INCLUDES FOUR) 9
WP-SB� EMERGENCY STOP BUTTON KIT 8
WP-SB-FTJB EMERGENCY STOP FORK TRUCK JUNCTION BOX ONLY 3
WP-SB-WPJB EMERGENCY STOP WORK PLATFORM JUNCTION BOX ONLY 6
WP-TC� STEEL FLUORESCENT TUBE CADDY 30
WP-TT36� SLIDING TOOL TRAY (36"W SINGLE DOOR WORK PLATFORM) 13
WP-TT48� SLIDING TOOL TRAY (48"W SINGLE DOOR WORK PLATFORM) 22
WP-FD-TT OPTIONAL TOOL TRAY FOR FOLD-DOWN WORK PLATFORM 21
WP-WS� ADDITIONAL CAUTION SIGNS WITH MOUNTING HARDWARE 3
WP-DL DOUBLE CHAIN DOOR LOCK 2

LANYARD WITH SAFETY HARNESS
LENGTH OF WEIGHT
MODEL NUMBER DESCRIPTION SIZE WAIST SIZE CAPACITY LANYARD (POUND)
WP-LH-S� HARNESS SMALL SEE BELOW 350 lb. 6 FEET 5
WP-LH-M� HARNESS MEDIUM SEE BELOW 350 lb. 6 FEET 5
WP-LH-L� HARNESS LARGE SEE BELOW 350 lb. 6 FEET 5
WP-LH-XL� HARNESS X-LARGE SEE BELOW 350 lb. 6 FEET 5
WP-LH-XXL� HARNESS XX-LARGE SEE BELOW 350 lb. 6 FEET 5
WP-LH-XXXL� HARNESS XXX-LARGE SEE BELOW 350 lb. 6 FEET 7
HARNESS SIZING CHART
CHEST SIZE
HEIGHT 34" - 36" 38" - 40" 42" - 44" 46" - 48" 50" - 54" 56" - 60"
SMALL (5'4" to 5'7") SMALL SMALL MEDIUM LARGE X-LARGE XX-LARGE
REGULAR (5'8" to 5'11") SMALL MEDIUM LARGE X-LARGE XX-LARGE XXX-LARGE
TALL (6'0" to 6'3") MEDIUM MEDIUM LARGE X-LARGE XX-LARGE XXX-LARGE
EXTRA TALL (6'3" PLUS) LARGE LARGE X-LARGE X-LARGE XX-LARGE XXX-LARGE
