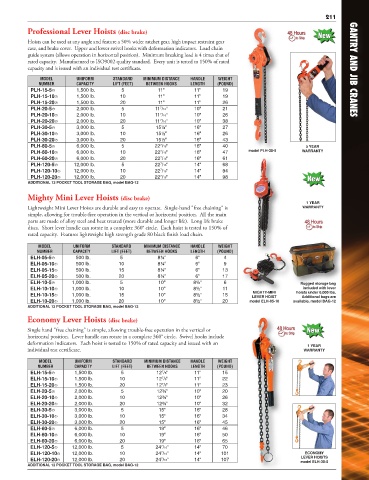

Page 205 - Vestil Catalog 112

211

Professional Lever Hoists (disc brake) New
Hoists can be used at any angle and feature a 50% wider ratchet gear, high impact restraint gear
case, and brake cover. Upper and lower swivel hooks with deformation indicators. Load chain
guide system (allows operation in horizontal position). Minimum breaking load is 4 times that of
rated capacity. Manufactured to ISO9002 quality standard. Every unit is tested to 150% of rated
capacity and is issued with an individual test certificate. GANTRY AND JIB CRANES

MODEL UNIFORM STANDARD MINIMUM DISTANCE HANDLE WEIGHT
NUMBER CAPACITY LIFT (FEET) BETWEEN HOOKS LENGTH (POUND)
PLH-15-5� 1,500 lb. 5 11" 11" 19
PLH-15-10� 1,500 lb. 10 11" 11" 19
PLH-15-20� 1,500 lb. 20 11" 11" 26
7
PLH-20-5� 2,000 lb. 5 11 /16" 10" 21
7
PLH-20-10� 2,000 lb. 10 11 /16" 10" 26
7
PLH-20-20� 2,000 lb. 20 11 /16" 10" 38
PLH-30-5� 3,000 lb. 5 15½" 16" 27
PLH-30-10� 3,000 lb. 10 15½" 16" 26
PLH-30-20� 3,000 lb. 20 15½" 16" 43
PLH-60-5� 6,000 lb. 5 22 /16" 16" 40 5 YEAR
7
7
PLH-60-10� 6,000 lb. 10 22 /16" 16" 47 model PLH-30-5 WARRANTY
7
PLH-60-20� 6,000 lb. 20 22 /16" 16" 61
7
PLH-120-5� 12,000 lb. 5 22 /16" 14" 68
7
PLH-120-10� 12,000 lb. 10 22 /16" 14" 94
7
PLH-120-20� 12,000 lb. 20 22 /16" 14" 98 New
ADDITIONAL 12 POCKET TOOL STORAGE BAG, model BAG-12
Mighty Mini Lever Hoists (disc brake)
1 YEAR
Lightweight Mini Lever Hoists are durable and easy to operate. Single-hand "free chaining" is WARRANTY
simple, allowing for trouble-free operation in the vertical or horizontal position. All the main
parts are made of alloy steel and heat treated (more durable and longer life). Long life brake
discs. Short lever handle can rotate in a complete 360° circle. Each hoist is tested to 150% of
rated capacity. Features lightweight high strength grade 80 black finish load chain.
MODEL UNIFORM STANDARD MINIMUM DISTANCE HANDLE WEIGHT
NUMBER CAPACITY LIFT (FEET) BETWEEN HOOKS LENGTH (POUND)
ELH-05-5� 500 lb. 5 8¼" 6" 4
ELH-05-10� 500 lb. 10 8¼" 6" 9
ELH-05-15� 500 lb. 15 8¼" 6" 13
ELH-05-20� 500 lb. 20 8¼" 6" 17
ELH-10-5� 1,000 lb. 5 10" 8½" 6 Rugged storage bag
ELH-10-10� 1,000 lb. 10 10" 8½" 11 included with lever
MIGHTY-MINI hoists under 6,000 lbs.
ELH-10-15� 1,000 lb. 15 10" 8½" 15 LEVER HOIST Additional bags are
ELH-10-20� 1,000 lb. 20 10" 8½" 20 model ELH-05-10 available, model BAG-12
ADDITIONAL 12 POCKET TOOL STORAGE BAG, model BAG-12

Economy Lever Hoists (disc brake)
Single hand "free chaining" is simple, allowing trouble-free operation in the vertical or New
horizontal position. Lever handle can rotate in a complete 360° circle. Swivel hooks include
deformation indicators. Each hoist is tested to 150% of rated capacity and issued with an 1 YEAR
individual test certificate. WARRANTY
MODEL UNIFORM STANDARD MINIMUM DISTANCE HANDLE WEIGHT
NUMBER CAPACITY LIFT (FEET) BETWEEN HOOKS LENGTH (POUND)
7
ELH-15-5� 1,500 lb. 5 12 /8" 11" 15
7
ELH-15-10� 1,500 lb. 10 12 /8" 11" 22
7
ELH-15-20� 1,500 lb. 20 12 /8" 11" 23
ELH-20-5� 2,000 lb. 5 12¾" 10" 20
ELH-20-10� 2,000 lb. 10 12¾" 10" 26
ELH-20-20� 2,000 lb. 20 12¾" 10" 32
ELH-30-5� 3,000 lb. 5 15" 16" 28
ELH-30-10� 3,000 lb. 10 15" 16" 34
ELH-30-20� 3,000 lb. 20 15" 16" 45
ELH-60-5� 6,000 lb. 5 19" 16" 46
ELH-60-10� 6,000 lb. 10 19" 16" 50
ELH-60-20� 6,000 lb. 20 19" 16" 65
7
ELH-120-5� 12,000 lb. 5 24 /16" 14" 70
7
ELH-120-10� 12,000 lb. 10 24 /16" 14" 101 ECONOMY
LEVER HOISTS
7
ELH-120-20� 12,000 lb. 20 24 /16" 14" 107 model ELH-30-5
ADDITIONAL 12 POCKET TOOL STORAGE BAG, model BAG-12
