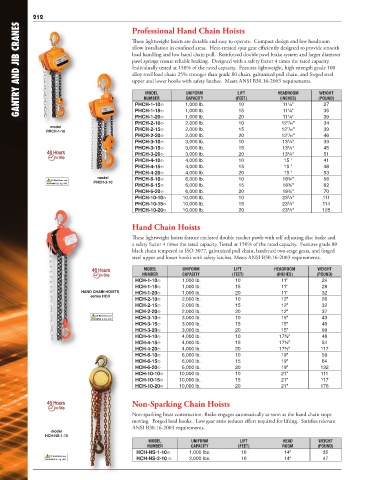

Page 206 - Vestil Catalog 112

212 Professional Hand Chain Hoists
GANTRY AND JIB CRANES allow installation in confined areas. Heat-treated spur gear efficiently designed to provide smooth

These lightweight hoists are durable and easy to operate. Compact design and low headroom
load handling and low hand chain pull. Reinforced double pawl brake system and larger diameter
pawl springs ensure reliable braking. Designed with a safety factor 4 times the rated capacity.
Individually tested at 150% of the rated capacity. Features lightweight, high strength grade 100
alloy steel load chain 25% stronger than grade 80 chain, galvanized pull chain, and forged steel
upper and lower hooks with safety latches. Meets ANSI B30.16-2003 requirements.
MODEL
WEIGHT
UNIFORM
LIFT
HEADROOM
CAPACITY
NUMBER
27
10
11¼"
PHCH-1-10�
35
1,000 lb.
15
11¼"
PHCH-1-15�
11¼"
PHCH-1-20�
39
1,000 lb.
20
7
34
PHCH-2-10� 1,000 lb. (FEET) (INCHES) (POUND)
12 /16"
10
2,000 lb.
model 7
PHCH-1-10 PHCH-2-15� 2,000 lb. 15 12 /16" 39
7
PHCH-2-20� 2,000 lb. 20 12 /16" 46
3
PHCH-3-10� 3,000 lb. 10 13 /8" 39
3
PHCH-3-15� 3,000 lb. 15 13 /8" 45
3
PHCH-3-20� 3,000 lb. 20 13 /8" 51
PHCH-4-10� 4,000 lb. 10 15 " 41
PHCH-4-15� 4,000 lb. 15 15 " 48
PHCH-4-20� 4,000 lb. 20 15 " 53
model 6,000 lb. 10 18¾" 56
CA Residents see PHCH-3-10 PHCH-6-10�
WARNING A, Pg. 459
PHCH-6-15� 6,000 lb. 15 18¾" 62
PHCH-6-20� 6,000 lb. 20 18¾" 70
5
PHCH-10-10� 10,000 lb. 10 23 /8" 111
5
PHCH-10-15� 10,000 lb. 15 23 /8" 114
5
PHCH-10-20� 10,000 lb. 20 23 /8" 125
Hand Chain Hoists
These lightweight hoists feature enclosed double ratchet pawls with self adjusting disc brake and
a safety factor 4 times the rated capacity. Tested at 150% of the rated capacity. Features grade 80
black chain tempered to ISO 3077, galvanized pull chain, hardened two-stage gears, and forged
steel upper and lower hooks with safety latches. Meets ANSI B30.16-2003 requirements.
MODEL UNIFORM LIFT HEADROOM WEIGHT
NUMBER CAPACITY (FEET) (INCHES) (POUND)
HCH-1-10� 1,000 lb. 10 11" 24
HCH-1-15� 1,000 lb. 15 11" 28
HAND CHAIN HOISTS HCH-1-20� 1,000 lb. 20 11" 32
series HCH
HCH-2-10� 2,000 lb. 10 12" 26
HCH-2-15� 2,000 lb. 15 12" 32
HCH-2-20� 2,000 lb. 20 12" 37
CA Residents see
WARNING A, Pg. 459 HCH-3-10� 3,000 lb. 10 15" 43
HCH-3-15� 3,000 lb. 15 15" 49
HCH-3-20� 3,000 lb. 20 15" 99
HCH-4-10� 4,000 lb. 10 17½" 48
HCH-4-15� 4,000 lb. 15 17½" 54
HCH-4-20� 4,000 lb. 20 17½" 117
HCH-6-10� 6,000 lb. 10 19" 59
HCH-6-15� 6,000 lb. 15 19" 64
HCH-6-20� 6,000 lb. 20 19" 132
HCH-10-10� 10,000 lb. 10 21" 111
HCH-10-15� 10,000 lb. 15 21" 117
HCH-10-20� 10,000 lb. 20 21" 176
Non-Sparking Chain Hoists
Non-sparking brass construction. Brake engages automatically as soon as the hand chain stops
moving. Forged load hooks. Low gear ratio reduces effort required for lifting. Satisfies relevant
ANSI B30.16-2003 requirements.
model
HCH-NS-1-10
MODEL UNIFORM LIFT HEAD WEIGHT
NUMBER CAPACITY (FEET) ROOM (POUND)
HCH-NS-1-10� 1,000 lbs. 10 14" 35
CA Residents see
WARNING A, Pg. 459 HCH-NS-2-10 � 2,000 lbs. 10 14" 47
