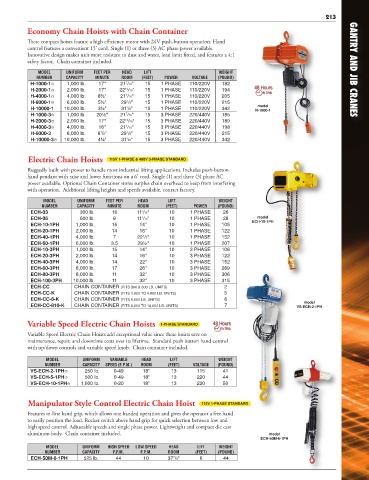

Page 207 - Vestil Catalog 112

213
Economy Chain Hoists with Chain Container

These compact hoists feature a high efficiency motor with 24V push-button operation. Hand
control features a convenient 15' cord. Single (1) or three (3) AC phase power available.
Innovative design makes unit more resistant to dust and water, load limit fitted, and features a 4:1
safety factor. Chain container included.
MODEL UNIFORM FEET PER HEAD LIFT WEIGHT GANTRY AND JIB CRANES
NUMBER CAPACITY MINUTE ROOM (FEET) POWER VOLTAGE (POUND)
7
H-1000-1� 1,000 lb. 17" 21 /16" 15 1 PHASE 110/220V 182
13
H-2000-1� 2,000 lb. 17" 22 /16" 15 1 PHASE 110/220V 194
7
H-4000-1� 4,000 lb. 8½" 21 /16" 15 1 PHASE 110/220V 205
1
H-6000-1� 6,000 lb. 5½" 29 /8" 15 1 PHASE 110/220V 215
model
H-10000-1 10,000 lb. 3½" 31 /8" 15 1 PHASE 110/220V 342 H-1000-1
1
7
H-1000-3� 1,000 lb. 20½" 21 /16" 15 3 PHASE 220/440V 185
13
H-2000-3� 2,000 lb. 17" 22 /16" 15 3 PHASE 220/440V 189
7
H-4000-3� 4,000 lb. 16" 21 /16" 15 3 PHASE 220/440V 198
H-6000-3 6,000 lb. 6 /8" 29 /8" 15 3 PHASE 220/440V 215
1
7
1
H-10000-3� 10,000 lb. 4¼" 31 /8" 15 3 PHASE 220/440V 342
Electric Chain Hoists 115V 1-PHASE & 460V 3-PHASE STANDARD
Ruggedly built with power to handle most industrial lifting applications. Includes push-button
hand pendant with raise and lower functions on a 6' cord. Single (1) and three (3) phase AC
power available. Optional Chain Container stores surplus chain overhead to keep from interfering
with operation. Additional lifting heights and speeds available, contact factory.
MODEL UNIFORM FEET PER HEAD LIFT WEIGHT
NUMBER CAPACITY MINUTE ROOM (FEET) POWER (POUND)
ECH-03 300 lb. 16 11 /16" 10 1 PHASE 26
1
ECH-06 600 lb. 8 11 /16" 10 1 PHASE 28 ECH-10-1PH
model
1
ECH-10-1PH 1,000 lb. 15 14" 10 1 PHASE 105
ECH-20-1PH 2,000 lb. 14 16" 10 1 PHASE 122
ECH-40-1PH 4,000 lb. 7 22 /2" 10 1 PHASE 152
1
ECH-60-1PH 6,000 lb. 3.5 29½" 10 1 PHASE 207
ECH-10-3PH 1,000 lb. 15 14" 10 3 PHASE 106
ECH-20-3PH 2,000 lb. 14 16" 10 3 PHASE 122
ECH-40-3PH 4,000 lb. 14 22" 10 3 PHASE 152
ECH-60-3PH 6,000 lb. 17 26" 10 3 PHASE 269
ECH-80-3PH 8,000 lb. 11 32" 10 3 PHASE 306
ECH-100-3PH 10,000 lb. 11 32" 10 3 PHASE 315
ECH-CC CHAIN CONTAINER (FITS 300 & 600 LB. UNITS) 2
ECH-CC-K CHAIN CONTAINER (FITS 1,000 TO 4,000 LB. UNITS) 5
ECH-CC-6-K CHAIN CONTAINER (FITS 6,000 LB. UNITS) 6 model
ECH-CC-810-K CHAIN CONTAINER (FITS 8,000 TO 10,000 LB. UNITS) 7 VS-ECH-2-1PH
Variable Speed Electric Chain Hoists 1-PHASE STANDARD
Variable Speed Electric Chain Hoists add exceptional value since these hoists save on
maintenance, repair, and downtime costs over its lifetime. Standard push button hand control
with up/down controls and variable speed knob. Chain container included.

MODEL UNIFORM VARIABLE HEAD LIFT WEIGHT
NUMBER CAPACITY SPEED (F.P.M.) ROOM (FEET) VOLTAGE (POUND)
VS-ECH-2-1PH� 250 lb. 0-49 18" 13 115 41
VS-ECH-5-1PH� 500 lb. 0-49 18" 13 220 44
VS-ECH-10-1PH� 1,000 lb. 0-20 18" 13 220 50

Manipulator Style Control Electric Chain Hoist 115V 1-PHASE STANDARD

Features in-line hand grip, which allows one handed operation and gives the operator a free hand
to easily position the load. Rocker switch above hand grip for quick selection between low and
high speed control. Adjustable speeds and single phase power. Lightweight and compact die cast
aluminum body. Chain container included. model
ECH-50M-6-1PH
MODEL UNIFORM HIGH SPEED LOW SPEED HEAD LIFT WEIGHT
NUMBER CAPACITY F.P.M. F.P.M. ROOM (FEET) (POUND)
ECH-50M-6-1PH 525 lb. 44 10 37 /8" 6 44
