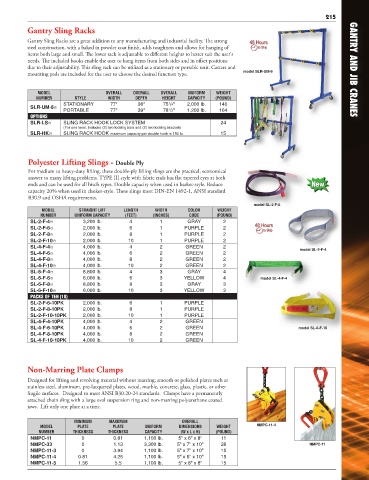

Page 209 - Vestil Catalog 112

215
Gantry Sling Racks

Gantry Sling Racks are a great addition to any manufacturing and industrial facility. The strong
steel construction, with a baked in powder coat finish, adds toughness and allows for hanging of
items both large and small. The lower rack is adjustable to different heights to better suit the user's
needs. The included hooks enable the user to hang items from both sides and in offset positions
due to their adjustability. This sling rack can be utilized as a stationary or portable unit. Casters and GANTRY AND JIB CRANES
mounting pads are included for the user to choose the desired function type. model SLR-UM-6

MODEL OVERALL OVERALL OVERALL UNIFORM WEIGHT
NUMBER STYLE WIDTH DEPTH HEIGHT CAPACITY (POUND)
STATIONARY 77" 36" 75 /4" 2,000 lb. 140
1
SLR-UM-6�
PORTABLE 77" 39" 78 /2" 1,200 lb. 164
1
OPTIONS
SLR-LS� SLING RACK HOOK LOCK SYSTEM 24
(For one level, includes (2) two locking bars and (2) two locking brackets
SLR-HK� SLING RACK HOOK maximum capacity per double hook is 150 lb. 15

Polyester Lifting Slings - Double Ply
For medium to heavy-duty lifting, these double-ply lifting slings are the practical, economical
answer to many lifting problems. TYPE III style with fabric ends has flat tapered eyes at both
ends and can be used for all hitch types. Double capacity when used in basket-style. Reduce New
capacity 20% when used in choker-style. These slings meet DIN-EN 1492-1, ANSI standard
B30.9 and OSHA requirements.
model SL-2-F-8
MODEL STRAIGHT LIFT LENGTH WIDTH COLOR WEIGHT
NUMBER UNIFORM CAPACITY (FEET) (INCHES) CODE (POUND)
SL-2-F-4� 3,200 lb. 4 1 GRAY 2
SL-2-F-6� 2,000 lb. 6 1 PURPLE 2
SL-2-F-8� 2,000 lb. 8 1 PURPLE 2
SL-2-F-10� 2,000 lb. 10 1 PURPLE 2
SL-4-F-4� 4,000 lb. 4 2 GREEN 2
model SL-2-F-4
SL-4-F-6� 4,000 lb. 6 2 GREEN 2
SL-4-F-8� 4,000 lb. 8 2 GREEN 2
SL-4-F-10� 4,000 lb. 10 2 GREEN 2
SL-6-F-4� 8,800 lb. 4 3 GRAY 4
SL-6-F-6� 6,000 lb. 6 3 YELLOW 4 model SL-4-F-4
SL-6-F-8� 8,800 lb. 8 3 GRAY 3
SL-6-F-10� 6,000 lb. 10 3 YELLOW 3
PACKS OF TEN (10)
SL-2-F-6-10PK 2,000 lb. 6 1 PURPLE
SL-2-F-8-10PK 2,000 lb. 8 1 PURPLE
SL-2-F-10-10PK 2,000 lb. 10 1 PURPLE
SL-4-F-4-10PK 4,000 lb. 4 2 GREEN
SL-4-F-6-10PK 4,000 lb. 6 2 GREEN model SL-6-F-10
SL-4-F-8-10PK 4,000 lb. 8 2 GREEN
SL-4-F-10-10PK 4,000 lb. 10 2 GREEN

Non-Marring Plate Clamps

Designed for lifting and revolving material without marring; smooth or polished plates such as
stainless steel, aluminum, pre-lacquered plates, wood, marble, concrete, glass, plastic, or other
fragile surfaces. Designed to meet ANSI B30.20-24 standards. Clamps have a permanently
attached chain sling with a large oval suspension ring and non-marring polyurethane coated
jaws. Lift only one plate at a time.

MINIMUM MAXIMUM OVERALL
MODEL PLATE PLATE UNIFORM DIMENSIONS WEIGHT NMPC-11-4
NUMBER THICKNESS THICKNESS CAPACITY (W x L x H) (POUND)
NMPC-11 0 0.81 1,100 lb. 5" x 6" x 8" 11
NMPC-33 0 1.13 3,300 lb. 5" x 7" x 10" 26 NMPC-11
NMPC-11-3 0 3.94 1,100 lb. 5" x 7" x 10" 15
NMPC-11-4 0.81 4.25 1,100 lb. 5" x 6" x 10" 15
NMPC-11-5 1.56 5.5 1,100 lb. 5" x 8" x 8" 15
