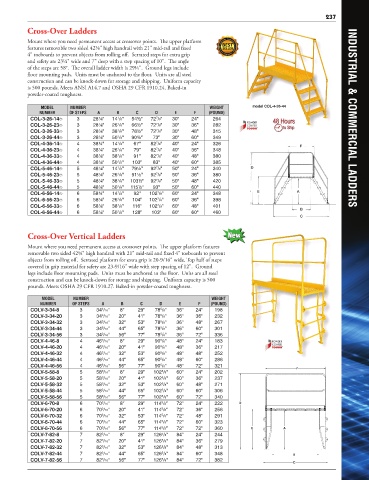

Page 231 - Vestil Catalog 112

237
Cross-Over Ladders

Mount where you need permanent access at crossover points. The upper platform
features removable two sided 42⅝" high handrail with 21" mid-rail and fixed
4" toeboards to prevent objects from rolling off. Serrated steps for extra grip
and safety are 23½" wide and 7" deep with a step spacing of 10". The angle
of the steps are 58°. The overall ladder width is 29¼". Ground legs include
floor mounting pads. Units must be anchored to the floor. Units are all steel
construction and can be knock-down for storage and shipping. Uniform capacity
is 500 pounds. Meets ANSI A14.7 and OSHA 29 CFR 1910.24. Baked-in
powder-coated toughness.

MODEL NUMBER WEIGHT model COL-4-36-44
NUMBER OF STEPS A B C D E F (POUND)
7
1
COL-3-26-14� 3 28¼" 14 /8" 54½" 72 /8" 30" 24" 264 INDUSTRIAL & COMMERCIAL LADDERS
COL-3-26-23� 3 28¼" 26 /8" 66½" 72 /8" 30" 36" 282
7
1
7
COL-3-26-33� 3 28¼" 38 /8" 78½" 72 /8" 30" 48" 315
1
1
COL-3-26-44� 3 28¼" 50 /8" 90½" 73" 30" 60" 349
1
7
COL-4-36-14� 4 38¼" 14 /8" 67" 82 /8" 40" 24" 326
1
7
COL-4-36-23� 4 38¼" 26 /8" 79" 82 /8" 40" 36" 348
1
7
COL-4-36-33� 4 38¼" 38 /8" 91" 82 /8" 40" 48" 380
1
COL-4-36-44� 4 38¼" 50 /8" 103" 83" 40" 60" 385
1
7
COL-5-46-14� 5 48¼" 14 /8" 79½" 92 /8" 50" 24" 340
1
7
COL-5-46-23� 5 48¼" 26 /8" 91½" 92 /8" 50" 36" 380
7
1
COL-5-46-33� 5 48¼" 38 /8" 103½" 92 /8" 50" 48" 420
1
COL-5-46-44� 5 48¼" 50 /8" 115½" 93" 50" 60" 440
7
1
COL-6-56-14� 6 58¼" 14 /8" 92" 102 /8" 60" 24" 348
7
1
COL-6-56-23� 6 58¼" 26 /8" 104" 102 /8" 60" 36" 398
COL-6-56-33� 6 58¼" 38 /8" 116" 102 /8" 60" 48" 401
7
1
1
COL-6-56-44� 6 58¼" 50 /8" 128" 103" 60" 60" 460
Cross-Over Vertical Ladders New
Mount where you need permanent access at crossover points. The upper platform features
removable two sided 42⅝" high handrail with 21" mid-rail and fixed 4" toeboards to prevent
objects from rolling off. Serrated platform for extra grip is 20-9/16" wide. Top half of steps
covered in grip material for safety are 23-9/16" wide with step spacing of 12". Ground
legs include floor mounting pads. Units must be anchored to the floor. Units are all steel
construction and can be knock-down for storage and shipping. Uniform capacity is 500
pounds. Meets OSHA 29 CFR 1910.27. Baked-in powder-coated toughness.
MODEL NUMBER WEIGHT
NUMBER OF STEPS A B C D E F (POUND)
COLV-3-34-8 3 34 /16" 8" 29" 78 /8" 36" 24" 198
3
5
COLV-3-34-20 3 34 /16" 20" 41" 78 /8" 36" 36" 232
3
5
COLV-3-34-32 3 34 /16" 32" 53" 78 /8" 36" 48" 267
5
3
COLV-3-34-44 3 34 /16" 44" 65" 78 /8" 36" 60" 301
5
3
COLV-3-34-56 3 34 /16" 56" 77" 78 /8" 36" 72" 336
5
3
COLV-4-46-8 4 46 /16" 8" 29" 90 /8" 48" 24" 183
5
3
COLV-4-46-20 4 46 /16" 20" 41" 90 /8" 48" 36" 217
5
3
COLV-4-46-32 4 46 /16" 32" 53" 90 /8" 48" 48" 252
5
3
COLV-4-46-44 4 46 /16" 44" 65" 90 /8" 48" 60" 286
5
3
COLV-4-46-56 4 46 /16" 56" 77" 90 /8" 48" 72" 321 F
3
5
COLV-5-58-8 5 58 /16" 8" 29" 102 /8" 60" 24" 202
3
5
COLV-5-58-20 5 58 /16" 20" 41" 102 /8" 60" 36" 237
3
5
COLV-5-58-32 5 58 /16" 32" 53" 102 /8" 60" 48" 271
5
3
COLV-5-58-44 5 58 /16" 44" 65" 102 /8" 60" 60" 306
5
3
COLV-5-58-56 5 58 /16" 56" 77" 102 /8" 60" 72" 340
3
5
COLV-6-70-8 6 70 /16" 8" 29" 114 /8" 72" 24" 222 D
3
5
COLV-6-70-20 6 70 /16" 20" 41" 114 /8" 72" 36" 256
3
5
COLV-6-70-32 6 70 /16" 32" 53" 114 /8" 72" 48" 291
5
3
COLV-6-70-44 6 70 /16" 44" 65" 114 /8" 72" 60" 323
5
3
COLV-6-70-56 6 70 /16" 56" 77" 114 /8" 72" 72" 360 E A
3
5
COLV-7-82-8 7 82 /16" 8" 29" 126 /8" 84" 24" 244
5
3
COLV-7-82-20 7 82 /16" 20" 41" 126 /8" 84" 36" 279
5
3
COLV-7-82-32 7 82 /16" 32" 53" 126 /8" 84" 48" 313
3
5
COLV-7-82-44 7 82 /16" 44" 65" 126 /8" 84" 60" 348 B
5
3
COLV-7-82-56 7 82 /16" 56" 77" 126 /8" 84" 72" 382 C
3
5
