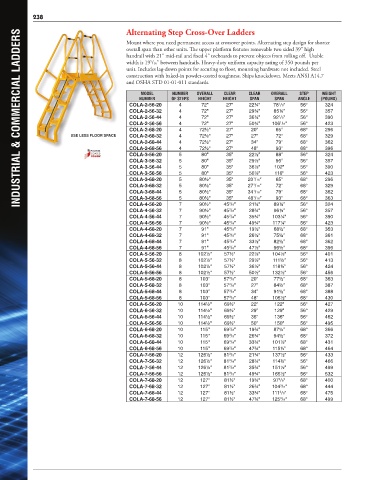

Page 232 - Vestil Catalog 112

238

Alternating Step Cross-Over Ladders
INDUSTRIAL & COMMERCIAL LADDERS
Mount where you need permanent access at crossover points. Alternating step design for shorter
overall span than other units. The upper platform features removable two sided 39" high
handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Usable
width is 19 /16" between handrails. Heavy-duty uniform capacity rating of 350 pounds per
5
unit. Includes lag-down points for securing to floor, mounting hardware not included. Steel
construction with baked-in powder-coated toughness. Ships knockdown. Meets ANSI A14.7
and OSHA STD 01-01-011 standards.
MODEL NUMBER OVERALL CLEAR CLEAR OVERALL STEP WEIGHT
NUMBER OF STEPS HEIGHT HEIGHT SPAN SPAN ANGLE (POUND)
COLA-2-56-20 4 72" 27" 22¼" 78 / 8" 56° 324
1
COLA-2-56-32 4 72" 27" 29¼" 85¼" 56° 357
COLA-2-56-44 4 72" 27" 36¼" 92 / 8" 56° 390
1
COLA-2-56-56 4 72" 27" 50¼" 106 / 8" 56° 423
1
COLA-2-68-20 4 72½" 27" 20" 65" 68° 296
USE LESS FLOOR SPACE COLA-2-68-32 4 72½" 27" 27" 72" 68° 329
COLA-2-68-44 4 72½" 27" 34" 79" 68° 362
COLA-2-68-56 4 72½" 27" 48" 93" 68° 396
COLA-3-56-20 5 80" 35" 22½" 88" 56° 324
COLA-3-56-32 5 80" 35" 29½" 95" 56° 357
COLA-3-56-44 5 80" 35" 36½" 102" 56° 390
COLA-3-56-56 5 80" 35" 50½" 116" 56° 423
COLA-3-68-20 5 80½" 35" 20 / 16" 65" 68° 296
1
COLA-3-68-32 5 80½" 35" 27 / 16" 72" 68° 329
1
COLA-3-68-44 5 80½" 35" 34 / 16" 79" 68° 362
1
COLA-3-68-56 5 80½" 35" 48 / 16" 93" 68° 363
1
COLA-4-56-20 7 90½" 45 / 8" 21¾" 89¼" 56° 324
3
COLA-4-56-32 7 90½" 45 / 8" 28¾" 96¼" 56° 357
3
COLA-4-56-44 7 90½" 45 / 8" 35¾" 103¼" 56° 390
3
COLA-4-56-56 7 90½" 45 / 8" 49¾" 117¼" 56° 423
3
COLA-4-68-20 7 91" 45 / 8" 19½" 68½" 68° 353
3
COLA-4-68-32 7 91" 45 / 8" 26½" 75½" 68° 361
3
COLA-4-68-44 7 91" 45 / 8" 33½" 82½" 68° 362
3
COLA-4-68-56 7 91" 45 / 8" 47½" 96½" 68° 396
3
COLA-5-56-20 8 102½" 57½" 22½" 104½" 56° 401
COLA-5-56-32 8 102½" 57½" 29½" 111½" 56° 413
COLA-5-56-44 8 102½" 57½" 36½" 118½" 56° 424
COLA-5-56-56 8 102½" 57½" 50½" 132½" 56° 456
COLA-5-68-20 8 103" 57 / 8" 20" 77½" 68° 363
3
COLA-5-68-32 8 103" 57 / 8" 27" 84½" 68° 387
3
COLA-5-68-44 8 103" 57 / 8" 34" 91½" 68° 388
3
COLA-5-68-56 8 103" 57 / 8" 48" 105½" 68° 430
3
COLA-6-56-20 10 114½" 69½" 22" 122" 56° 427
COLA-6-56-32 10 114½" 69½" 29" 129" 56° 429
COLA-6-56-44 10 114½" 69½" 36" 136" 56° 462
COLA-6-56-56 10 114½" 69½" 50" 150" 56° 495
COLA-6-68-20 10 115" 69 / 8" 19¾" 87½" 68° 366
3
COLA-6-68-32 10 115" 69 / 8" 26¾" 94½" 68° 372
3
COLA-6-68-44 10 115" 69 / 8" 33¾" 101½" 68° 431
3
COLA-6-68-56 10 115" 69 / 8" 47¾" 115½" 68° 464
3
COLA-7-56-20 12 126½" 81 / 8" 21¾" 137½" 56° 433
3
COLA-7-56-32 12 126½" 81 / 8" 28¾" 114½" 56° 466
3
COLA-7-56-44 12 126½" 81 / 8" 35¾" 151½" 56° 499
3
COLA-7-56-56 12 126½" 81 / 8" 49¾" 165½" 56° 532
3
COLA-7-68-20 12 127" 81½" 19¾" 97 / 8" 68° 400
3
COLA-7-68-32 12 127" 81½" 26¾" 104 / 8" 68° 444
3
COLA-7-68-44 12 127" 81½" 33¾" 111 / 8" 68° 475
3
COLA-7-68-56 12 127" 81½" 47¾" 125 / 8" 68° 499
3
