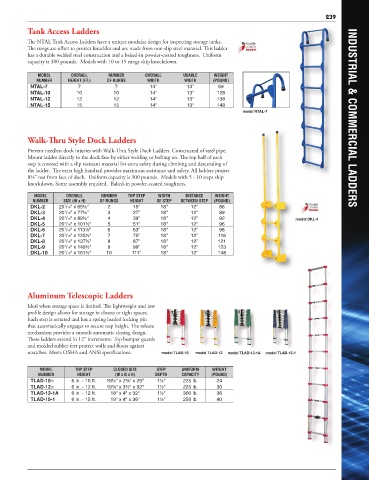

Page 233 - Vestil Catalog 112

239
Tank Access Ladders

The NTAL Tank Access Ladders have a unique modular design for inspecting storage tanks.
The rungs are offset to protect knuckles and are made from non-slip steel material. This ladder
has a durable welded steel construction and a baked-in powder-coated toughness. Uniform
capacity is 300 pounds. Models with 10 to 15 rungs ship knockdown.

MODEL OVERALL NUMBER OVERALL USABLE WEIGHT
NUMBER HEIGHT (FT.) OF RUNGS WIDTH WIDTH (POUND)
NTAL-7 7 7 14" 13" 69
NTAL-10 10 10 14" 13" 128
NTAL-12 12 12 14" 13" 138
NTAL-15 15 15 14" 13" 148
model NTAL-7 INDUSTRIAL & COMMERCIAL LADDERS

Walk-Thru Style Dock Ladders
Prevent needless dock injuries with Walk-Thru Style Dock Ladders. Constructed of steel pipe.
Mount ladder directly to the dock face by either welding or bolting on. The top half of each
step is covered with a slip resistant material for extra safety during climbing and descending of
the ladder. The extra high handrail provides maximum assistance and safety. All ladders project
8⅜" out from face of dock. Uniform capacity is 300 pounds. Models with 5 - 10 steps ship
knockdown. Some assembly required. Baked-in powder-coated toughness.
MODEL OVERALL NUMBER TOP STEP WIDTH DISTANCE WEIGHT
NUMBER SIZE (W x H) OF RUNGS HEIGHT OF STEP BETWEEN STEP (POUND)
DKL-2 20 /16" x 65½" 2 15" 18" 12" 86
7
DKL-3 20 /16" x 77½" 3 27" 18" 12" 89
7
DKL-4 20 /16" x 89½" 4 39" 18" 12" 92 model DKL-4
7
DKL-5 20 /16" x 101½" 5 51" 18" 12" 96
7
DKL-6 20 /16" x 113½" 6 63" 18" 12" 98
7
DKL-7 20 /16" x 125½" 7 75" 18" 12" 118
7
DKL-8 20 /16" x 137½" 8 87" 18" 12" 121
7
DKL-9 20 /16" x 149½" 9 99" 18" 12" 123
7
DKL-10 20 /16" x 161½" 10 111" 18" 12" 148
7
Aluminum Telescopic Ladders
Ideal when storage space is limited. The lightweight and low
profile design allows for storage in closets or tight spaces.
Each step is serrated and has a spring loaded locking pin
that automatically engages to secure step height. The release
mechanism provides a smooth automatic closing design.
These ladders extend in 12" increments. Top bumper guards
and molded rubber feet protect walls and floors against
scratches. Meets OSHA and ANSI specifications. model TLAD-10 model TLAD-12 model TLAD-12-1A model TLAD-15-1

MODEL TOP STEP CLOSED SIZE STEP UNIFORM WEIGHT
NUMBER HEIGHT (W x D x H) DEPTH CAPACITY (POUND)
TLAD-10� 6 in. - 10 ft. 18½" x 2¾" x 29" 1½" 225 lb. 24
TLAD-12� 6 in. - 12 ft. 19¼" x 3½" x 32" 1½" 225 lb. 30
TLAD-12-1A 6 in. - 12 ft. 18" x 4" x 32" 1½" 300 lb. 36
TLAD-15-1 6 in. - 15 ft. 19" x 4" x 36" 1½" 250 lb. 40
