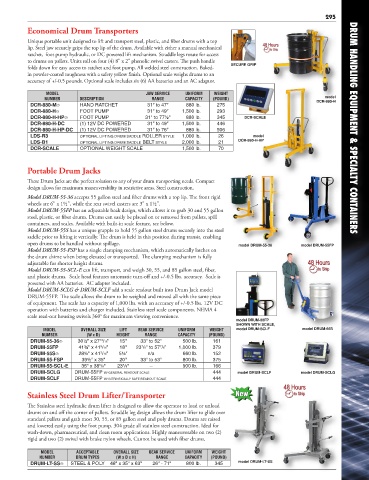

Page 289 - Vestil Catalog 112

295
Economical Drum Transporters

Unique portable unit designed to lift and transport steel, plastic, and fiber drums with a top
lip. Steel jaw securely grips the top lip of the drum. Available with either a manual mechanical
ratchet, foot pump hydraulic, or DC powered lift mechanism. Straddle legs rotate for access
to drums on pallets. Units roll on four (4) 8" x 2" phenolic swivel casters. The push handle
folds down for easy access to ratchet and foot pump. All welded steel construction. Baked- SECURE GRIP
in powder-coated toughness with a safety yellow finish. Optional scale weighs drums to an
accuracy of +/-0.5 pounds. Optional scale includes six (6) AA batteries and an AC adaptor.
MODEL JAW SERVICE UNIFORM WEIGHT
NUMBER DESCRIPTION RANGE CAPACITY (POUND) model
DCR-880-H
DCR-880-M HAND RATCHET 31" to 47" 880 lb. 275
DCR-880-H FOOT PUMP 31" to 49" 1,500 lb. 293
DCR-880-H-HP FOOT PUMP 31" to 77½" 880 lb. 345 DCR-SCALE
DCR-880-H-DC (1) 12V DC POWERED 31" to 49" 1,500 lb. 446
DCR-880-H-HP-DC (1) 12V DC POWERED 31" to 76" 880 lb. 506 DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
LDS-R3 OPTIONAL LIFTING DRUM SADDLE ROLLER STYLE 1,000 lb. 26 model
LDS-B1 OPTIONAL LIFTING DRUM SADDLE BELT STYLE 2,000 lb. 21 DCR-880-H-HP
DCR-SCALE OPTIONAL WEIGHT SCALE 1,500 lb. 70

Portable Drum Jacks
These Drum Jacks are the perfect solution to any of your drum transporting needs. Compact
design allows for maximum maneuverability in restrictive areas. Steel construction.
Model DRUM-55-36 accepts 55 gallon steel and fiber drums with a top lip. The front rigid
wheels are 6" x 1½", while the rear swivel casters are 3" x 1½".
Model DRUM-55FP has an adjustable beak design, which allows it to grab 30 and 55 gallon
steel, plastic, or fiber drums. Drums can easily be placed on or removed from pallets, spill
containers, and scales. Available with built-in scale feature, see below.
Model DRUM-55S has a unique grapple to hold 55 gallon steel drums securely into the steel
saddle prior to lifting it vertically. The drum is held in this position during transit, enabling
open drums to be handled without spillage. model DRUM-55-36 model DRUM-55FP
Model DRUM-55-FSP has a single clamping mechanism, which automatically latches on
the drum chime when being elevated or transported. The clamping mechanism is fully
adjustable for shorter height drums.
Model DRUM-55-SCL-E can lift, transport, and weigh 30, 55, and 85 gallon steel, fiber,
and plastic drums. Scale head features automatic turn-off and +/-0.5 lbs. accuracy. Scale is
powered with AA batteries. AC adapter included.
Model DRUM-SCLG & DRUM-SCLF add a scale readout built into Drum Jack model
DRUM-55FP. The scale allows the drum to be weighed and moved all with the same piece
of equipment. The scale has a capacity of 1,000 lbs. with an accuracy of +/-0.5 lbs. 12V DC
operation with batteries and charger included. Stainless steel scale components. NEMA 4
scale read-out housing swivels 360° for maximum viewing convenience.
model DRUM-55FP
SHOWN WITH SCALE,
MODEL OVERALL SIZE LIFT BEAK SERVICE UNIFORM WEIGHT model DRUM-SCLF model DRUM-55S
NUMBER (W x D) HEIGHT RANGE CAPACITY (POUND)
13
DRUM-55-36 30½" x 27 /16" 15" 33" to 52" 500 lb. 161
DRUM-55FP 41¾" x 41 /16" 18" 23 /8" to 57 /8" 1,000 lb. 379
9
7
7
3
DRUM-55S 28½" x 41 /16" 5¼" n/a 660 lb. 152
DRUM-55-FSP 39½" x 35" 20" 33" to 53" 800 lb. 375
DRUM-55-SCL-E 35" x 38 /8" 23 /8" -- 900 lb. 166
5
5
DRUM-SCLG DRUM-55FP W/ GENERAL READOUT SCALE 444 model DRUM-SCLF model DRUM-SCLG
DRUM-SCLF DRUM-55FP W/ INTRINSICALLY SAFE READOUT SCALE 444
Stainless Steel Drum Lifter/Transporter New
The Stainless steel hydraulic drum lifter is designed to allow the operator to load or unload
drums on and off the corner of pallets. Straddle leg design allows the drum lifter to glide over
standard pallets and grab most 30, 55, or 85 gallon steel and poly drums. Drums are raised
and lowered easily using the foot pump. 304 grade all stainless steel construction. Ideal for
wash-down, pharmaceutical, and clean room applications. Highly maneuverable on two (2)
rigid and two (2) swivel with brake nylon wheels. Cannot be used with fiber drums.

MODEL ACCEPTABLE OVERALL SIZE BEAK SERVICE UNIFORM WEIGHT
NUMBER DRUM TYPES (W x D x H) RANGE CAPACITY (POUND)
model DRUM-LT-SS
DRUM-LT-SS STEEL & POLY 48" x 35" x 63" 26" - 71" 800 lb. 345
