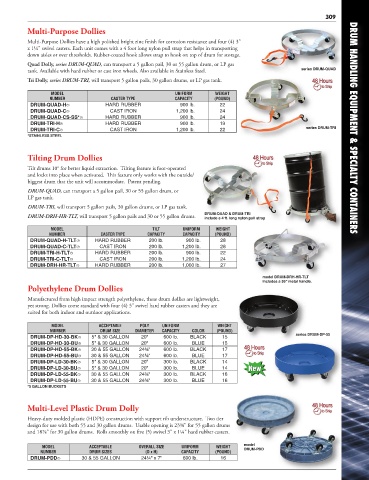

Page 303 - Vestil Catalog 112
P. 303
309
Multi-Purpose Dollies
Multi-Purpose Dollies have a high polished bright zinc finish for corrosion resistance and four (4) 3"
x 1¼" swivel casters. Each unit comes with a 4 foot long nylon pull strap that helps in transporting
down aisles or over thresholds. Rubber-coated hook allows strap to hook on top of drum for storage.
Quad Dolly, series DRUM-QUAD, can transport a 5 gallon pail, 30 or 55 gallon drum, or LP gas
tank. Available with hard rubber or cast iron wheels. Also available in Stainless Steel. series DRUM-QUAD
Tri Dolly, series DRUM-TRI, will transport 5 gallon pails, 30 gallon drums, or LP gas tank.
MODEL UNIFORM WEIGHT
NUMBER CASTER TYPE CAPACITY (POUND)
DRUM-QUAD-H HARD RUBBER 900 lb. 22
DRUM-QUAD-C CAST IRON 1,200 lb. 24
DRUM-QUAD-CS-SS* HARD RUBBER 900 lb. 24
DRUM-TRI-H HARD RUBBER 900 lb. 19
series DRUM-TRI
DRUM-TRI-C CAST IRON 1,200 lb. 22 DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
*STAINLESS STEEL
Tilting Drum Dollies
Tilt drums 10° for better liquid extraction. Tilting feature is foot-operated
and locks into place when activated. This feature only works with the outside/
biggest drum that the unit will accommodate. Patent pending.
DRUM-QUAD, can transport a 5 gallon pail, 30 or 55 gallon drum, or
LP gas tank.
DRUM-TRI, will transport 5 gallon pails, 30 gallon drums, or LP gas tank.
DRUM-DRH-HR-TLT, will transport 5 gallon pails and 30 or 55 gallon drums. DRUM-QUAD & DRUM-TRI
include a 4 ft. long nylon pull strap
MODEL TILT UNIFORM WEIGHT
NUMBER CASTER TYPE CAPACITY CAPACITY (POUND)
DRUM-QUAD-H-TLT HARD RUBBER 200 lb. 900 lb. 28
DRUM-QUAD-C-TLT CAST IRON 200 lb. 1,200 lb. 28
DRUM-TRI-H-TLT HARD RUBBER 200 lb. 900 lb. 22
DRUM-TRI-C-TLT CAST IRON 200 lb. 1,200 lb. 24
DRUM-DRH-HR-TLT HARD RUBBER 200 lb. 1,000 lb. 27
model DRUM-DRH-HR-TLT
includes a 36" metal handle.
Polyethylene Drum Dollies
Manufactured from high impact strength polyethylene, these drum dollies are lightweight,
yet strong. Dollies come standard with four (4) 3" swivel hard rubber casters and they are
suited for both indoor and outdoor applications.
MODEL ACCEPTABLE POLY UNIFORM WEIGHT
NUMBER DRUM SIZE DIAMETER CAPACITY COLOR (POUND)
series DRUM-DP-55
DRUM-DP-HD-30-BK 5* & 30 GALLON 20" 600 lb. BLACK 15
DRUM-DP-HD-30-BU 5* & 30 GALLON 20" 600 lb. BLUE 15
DRUM-DP-HD-55-BK 30 & 55 GALLON 24¾" 600 lb. BLACK 17
DRUM-DP-HD-55-BU 30 & 55 GALLON 24¾" 600 lb. BLUE 17
DRUM-DP-LD-30-BK 5* & 30 GALLON 20" 300 lb. BLACK 14
DRUM-DP-LD-30-BU 5* & 30 GALLON 20" 300 lb. BLUE 14 New
DRUM-DP-LD-55-BK 30 & 55 GALLON 24¾" 300 lb. BLACK 16
DRUM-DP-LD-55-BU 30 & 55 GALLON 24¾" 300 lb. BLUE 16
*5 GALLON BUCKETS
Multi-Level Plastic Drum Dolly
Heavy-duty molded plastic (HDPE) construction with support rib understructure. Two tier
design for use with both 55 and 30 gallon drums. Usable opening is 23⅜" for 55 gallon drums
and 18⅞" for 30 gallon drums. Rolls smoothly on five (5) swivel 3" x 1¼" hard rubber casters.
MODEL ACCEPTABLE OVERALL SIZE UNIFORM WEIGHT model
NUMBER DRUM SIZES (D x H) CAPACITY (POUND) DRUM-PDD
DRUM-PDD 30 & 55 GALLON 24¼" x 7" 600 lb. 16
