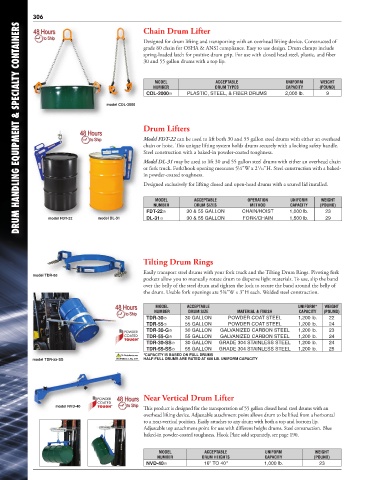

Page 300 - Vestil Catalog 112

306
DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
Chain Drum Lifter

Designed for drum lifting and transporting with an overhead lifting device. Constructed of
grade 80 chain for OSHA & ANSI compliance. Easy to use design. Drum clamps include
spring-loaded latch for positive drum grip. For use with closed head steel, plastic, and fiber
30 and 55 gallon drums with a top lip.

MODEL ACCEPTABLE UNIFORM WEIGHT
NUMBER DRUM TYPES CAPACITY (POUND)
CDL-2000 PLASTIC, STEEL, & FIBER DRUMS 2,000 lb. 9
model CDL-2000

Drum Lifters

Model FDT-22 can be used to lift both 30 and 55 gallon steel drums with either an overhead
chain or hoist. This unique lifting system holds drums securely with a locking safety handle.
Steel construction with a baked-in powder-coated toughness.
Model DL-31 may be used to lift 30 and 55 gallon steel drums with either an overhead chain
or fork truck. Fork/hook opening measures 5½"W x 2 /16"H. Steel construction with a baked-
1
in powder-coated toughness.
Designed exclusively for lifting closed and open-head drums with a scured lid installed.

MODEL ACCEPTABLE OPERATION UNIFORM WEIGHT
NUMBER DRUM SIZES METHOD CAPACITY (POUND)
FDT-22 30 & 55 GALLON CHAIN/HOIST 1,000 lb. 23
model FDT-22 model DL-31 DL-31 30 & 55 GALLON FORK/CHAIN 1,500 lb. 29

Tilting Drum Rings

Easily transport steel drums with your fork truck and the Tilting Drum Rings. Pivoting fork
model TDR-55
pockets allow you to manually rotate drum to dispense light materials. To use, slip the band
over the belly of the steel drum and tighten the lock to secure the band around the belly of
the drum. Usable fork openings are 5¾"W x 3"H each. Welded steel construction.

MODEL ACCEPTABLE UNIFORM* WEIGHT
NUMBER DRUM SIZE MATERIAL & FINISH CAPACITY (POUND)
TDR-30 30 GALLON POWDER COAT STEEL 1,200 lb. 22
TDR-55 55 GALLON POWDER COAT STEEL 1,200 lb. 24
TDR-30-G 30 GALLON GALVANIZED CARBON STEEL 1,200 lb. 23
TDR-55-G 55 GALLON GALVANIZED CARBON STEEL 1,200 lb. 24
TDR-30-SS 30 GALLON GRADE 304 STAINLESS STEEL 1,200 lb. 24
TDR-55-SS 55 GALLON GRADE 304 STAINLESS STEEL 1,200 lb. 25
CA Residents see *CAPACITY IS BASED ON FULL DRUMS
model TDR-55-SS WARNING A, Pg. 459 HALF-FULL DRUMS ARE RATED AT 600 LB. UNIFORM CAPACITY

Near Vertical Drum Lifter
model NVD-40 This product is designed for the transportation of 55 gallon closed head steel drums with an
overhead lifting device. Adjustable attachment point allows drum to be lifted from a horizontal
to a near-vertical position. Easily attaches to any drum with both a top and bottom lip.
Adjustable top attachment point for use with different height drums. Steel construction. Blue
baked-in powder-coated toughness. Hook Plate sold separately, see page 190.

MODEL ACCEPTABLE UNIFORM WEIGHT
NUMBER DRUM HEIGHTS CAPACITY (POUND)
NVD-40 16" TO 40" 1,000 lb. 23
