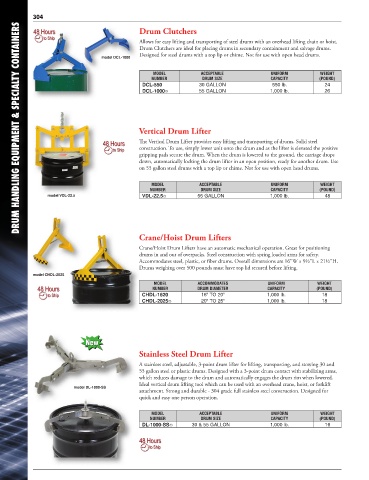

Page 298 - Vestil Catalog 112

304
DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
Drum Clutchers

Allows for easy lifting and transporting of steel drums with an overhead lifting chain or hoist.
Drum Clutchers are ideal for placing drums in secondary containment and salvage drums.
Designed for steel drums with a top lip or chime. Not for use with open head drums.
model DCL-1000

MODEL ACCEPTABLE UNIFORM WEIGHT
NUMBER DRUM SIZE CAPACITY (POUND)
DCL-550 30 GALLON 550 lb. 24
DCL-1000 55 GALLON 1,000 lb. 26

Vertical Drum Lifter
The Vertical Drum Lifter provides easy lifting and transporting of drums. Solid steel
construction. To use, simply lower unit onto the drum and as the lifter is elevated the positive
gripping pads secure the drum. When the drum is lowered to the ground, the carriage drops
down, automatically locking the drum lifter in an open position, ready for another drum. Use
on 55 gallon steel drums with a top lip or chime. Not for use with open head drums.

MODEL ACCEPTABLE UNIFORM WEIGHT
NUMBER DRUM SIZE CAPACITY (POUND)
model VDL-22.5 VDL-22.5 55 GALLON 1,000 lb. 48

Crane/Hoist Drum Lifters

Crane/Hoist Drum Lifters have an automatic mechanical operation. Great for positioning
drums in and out of overpacks. Steel construction with spring loaded arms for safety.
Accommodates steel, plastic, or fiber drums. Overall dimensions are 16"W x 9½"L x 21½"H.
Drums weighing over 500 pounds must have top lid secured before lifting.
model CHDL-2025
MODEL ACCOMMODATES UNIFORM WEIGHT
NUMBER DRUM DIAMETER CAPACITY (POUND)
CHDL-1620 16" TO 20" 1,000 lb. 18
CHDL-2025 20" TO 25" 1,000 lb. 18

New
Stainless Steel Drum Lifter

A stainless steel, adjustable, 3-point drum lifter for lifting, transporting, and stowing 30 and
55 gallon steel or plastic drums. Designed with a 3-point drum contact with stabilizing arms,
which reduces damage to the drum and automatically engages the drum rim when lowered.
Ideal vertical drum lifting tool which can be used with an overhead crane, hoist, or forklift
model DL-1000-SS
attachment. Strong and durable - 304 grade full stainless steel construction. Designed for
quick and easy one person operation.

MODEL ACCEPTABLE UNIFORM WEIGHT
NUMBER DRUM SIZE CAPACITY (POUND)
DL-1000-SS 30 & 55 GALLON 1,000 lb. 16
