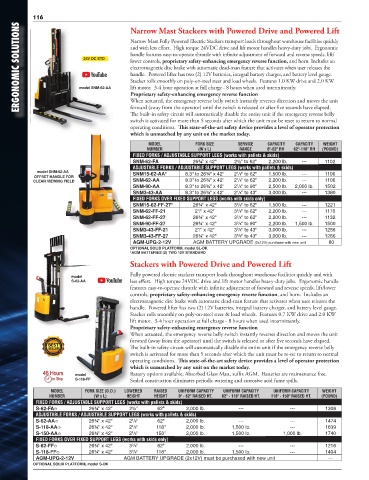

116 Narrow Mast Stackers with Powered Drive and Powered Lift
ERGONOMIC SOLUTIONS model SNM-62-AA and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly
handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/
24V DC STD
lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an
electromagnetic disc brake with automatic dead-man feature that activates when user releases the
handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge.
Stacker rolls smoothly on poly-on-steel steer and load wheels. Features 1.0 KW drive and 2.0 KW
lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit
forward (away from the operator) until the switch is released or after five seconds have elapsed.
The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly
switch is activated for more than 5 seconds after which the unit must be reset to return to normal
operating conditions. This state-of-the-art safety device provides a level of operator protection
which is unmatched by any unit on the market today.
MODEL FORK SIZE SERVICE CAPACITY CAPACITY WEIGHT
NUMBER (W x L) RANGE 0"-62" RH 62"-118" RH (POUND)
FIXED FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
SNM-62-FA 26¾" x 42" 2½" to 62" 2,200 lb. --- 1102
ADJUSTABLE FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
model SNM-62-AA 1
OFFSET HANDLE FOR SNM15-62-AA* 8.3" to 26¾" x 42" 2 /8" to 62" 1,500 lb. --- 1106
1
CLEAR VIEWING FIELD SNM-62-AA 8.3" to 26¾" x 42" 2 /8" to 62" 2,200 lb. --- 1106
SNM-90-AA 8.3" to 26¾" x 42" 2 /8" to 90" 2,500 lb. 2,000 lb. 1502
1
SNM3-43-AA 8.3" to 26¾" x 42" 2 /8" to 43" 3,000 lb. --- 1380
1
FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
SNM15-62-FF-27* 26¾" x 42" 3 /8" to 62" 1,500 lb. --- 1221
3
SNM-62-FF-21 21" x 42" 3 /8" to 62" 2,200 lb. --- 1170
3
SNM-62-FF-27 26¾" x 42" 3 /8" to 62" 2,200 lb. --- 1132
3
SNM-90-FF-27 26¾" x 42" 3 /8" to 90" 2,200 lb. 1,500 lb. 1500
3
SNM3-43-FF-21 21" x 42" 3 /8" to 43" 3,000 lb. --- 1256
3
SNM3-43-FF-27 26¾" x 42" 3 /8" to 43" 3,000 lb. --- 1266
3
AGM-UPG-2-12V AGM BATTERY UPGRADE (2x12V) purchase with new unit 80
OPTIONAL SOLID PLATFORM, model SL-DK
*AGM BATTERIES (2) TWO 12V STANDARD
Stackers with Powered Drive and Powered Lift
Fully powered electric stackers transport loads throughout warehouse facilities quickly and with
model
S-62-AA less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle
features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower
controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an
electromagnetic disc brake with automatic dead-man feature that activates when user releases the
handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge.
Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW
lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit
forward (away from the operator) until the switch is released or after five seconds have elapsed.
The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly
switch is activated for more than 5 seconds after which the unit must be re-set to return to normal
operating conditions. This state-of-the-art safety device provides a level of operator protection
which is unmatched by any unit on the market today.
model Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free.
S-118-FF Sealed construction eliminates periodic watering and corrosive acid fume spills.
MODEL FORK SIZE (O.D.) LOWERED RAISED UNIFORM CAPACITY UNIFORM CAPACITY UNIFORM CAPACITY WEIGHT
NUMBER (W x L) HEIGHT HEIGHT 0" - 62" RAISED HT. 62" - 118" RAISED HT. 118" - 150" RAISED HT. (POUND)
FIXED FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
S-62-FA� 26¾" x 42" 2½" 62" 2,000 lb. --- --- 1308
ADJUSTABLE FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
1
S-62-AA� 26¾" x 42" 2 /8" 62" 2,000 lb. --- --- 1474
1
S-118-AA� 26¾" x 42" 2 /8" 118" 2,000 lb. 1,500 lb. --- 1639
1
S-150-AA� 26¾" x 42" 2 /8" 150" 2,000 lb. 1,500 lb. 1,000 lb. 1740
FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
3
S-62-FF� 26¾" x 42" 3 /8" 62" 2,000 lb. --- --- 1216
3
S-118-FF� 26¾" x 42" 3 /8" 118" 2,000 lb. 1,500 lb. --- 1404
AGM-UPG-2-12V AGM BATTERY UPGRADE (2x12V) must be purchased with new unit ---
OPTIONAL SOLID PLATFORM, model S-DK
