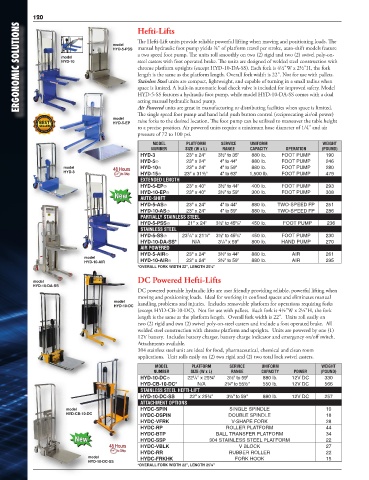

Page 114 - Vestil Catalog 112

120 Hefti-Lifts
ERGONOMIC SOLUTIONS model model manual hydraulic foot pump yields ¾" of platform travel per stroke, auto-shift models feature

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The
HYD-5-PSS
a two speed foot pump. The units roll smoothly on two (2) rigid and two (2) swivel poly-on-
steel casters with foot operated brake. The units are designed of welded steel construction with
HYD-10
chrome platform uprights (except HYD-10-DA-SS). Each fork is 4½"W x 2½"H, the fork
length is the same as the platform length. Overall fork width is 22". Not for use with pallets.
Stainless Steel units are compact, lightweight, and capable of turning in a small radius when
space is limited. A built-in automatic load check valve is included for improved safety. Model
HYD-5-SS features a hydraulic foot pump, while model HYD-10-DA-SS comes with a dual
acting manual hydraulic hand pump.
Air Powered units are great in manufacturing or distributing facilities when space is limited.
The single speed foot pump and hand held push button control (reciprocating air/oil power)
model
HYD-5-EP raise forks to the desired location. The foot pump can be utilized to maneuver the table height
to a precise position. Air powered units require a minimum hose diameter of 1/4" and air
pressure of 72 to 100 psi.
MODEL PLATFORM SERVICE UNIFORM WEIGHT
NUMBER SIZE (W x L) RANGE CAPACITY OPERATION (POUND)
HYD-3 23" x 24" 3½" to 35" 880 lb. FOOT PUMP 190
HYD-5� 23" x 24" 4" to 44" 880 lb. FOOT PUMP 246
model HYD-10� 23" x 24" 4" to 59" 880 lb. FOOT PUMP 280
HYD-3
HYD-15� 23" x 31½" 4" to 63" 1,500 lb. FOOT PUMP 479
EXTENDED LENGTH
HYD-5-EP� 23" x 40" 3½" to 44" 400 lb. FOOT PUMP 293
New HYD-10-EP� 23" x 40" 3½" to 59" 300 lb. FOOT PUMP 308
AUTO-SHIFT
HYD-5-AS� 23" x 24" 4" to 44" 880 lb. TWO-SPEED FP 251
HYD-10-AS� 23" x 24" 4" to 59" 880 lb. TWO-SPEED FP 286
PARTIALLY STAINLESS STEEL
5
HYD-5-PSS� 21" x 24" 3½" to 45 /8" 450 lb. FOOT PUMP 236
STAINLESS STEEL
5
7
HYD-5-SS� 23 /8" x 21¼" 3½" to 45 /8" 450 lb. FOOT PUMP 230
HYD-10-DA-SS* N/A 3 /8" x 59" 800 lb. HAND PUMP 270
1
AIR POWERED
HYD-5-AIR� 23" x 24" 3½" to 44" 880 lb. AIR 261
model
HYD-10-AIR HYD-10-AIR� 23" x 24" 3½" to 59" 880 lb. AIR 295
*OVERALL FORK WIDTH 22", LENGTH 25½"
model DC Powered Hefti-Lifts
HYD-10-DA-SS
DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when
moving and positioning loads. Ideal for working in confined spaces and eliminates manual
model handling problems and injuries. Includes removable platform for operations requiring forks
HYD-10-DC
(except HYD-CB-10-DC). Not for use with pallets. Each fork is 4½"W x 2½"H, the fork
length is the same as the platform length. Overall fork width is 22". Units roll easily on
two (2) rigid and two (2) swivel poly-on-steel casters and include a foot operated brake. All
welded steel construction with chrome platform and uprights. Units are powered by one (1)
12V battery. Includes battery charger, battery charge indicator and emergency on/off switch.
Attachments available.
304 stainless steel unit are ideal for food, pharmaceutical, chemical and clean room
applications. Unit rolls easily on (2) two rigid and (2) two total lock swivel casters.
MODEL PLATFORM SERVICE UNIFORM WEIGHT
NUMBER SIZE (W x L) RANGE CAPACITY POWER (POUND)
1
HYD-10-DC� 22 /8" x 25¾" 3½" to 59" 880 lb. 12V DC 330
HYD-CB-10-DC* N/A 2¾" to 55½" 550 lb. 12V DC 566
STAINLESS STEEL HEFTI-LIFT
HYD-10-DC-SS 22" x 25¾" 3½" to 59" 880 lb. 12V DC 257
ATTACHMENT OPTIONS
model HYDC-SPIN SINGLE SPINDLE 10
HYD-CB-10-DC HYDC-DSPIN DOUBLE SPINDLE 18
HYDC-VFRK V-SHAPE FORK 28
HYDC-RP ROLLER PLATFORM 44
HYDC-BTP BALL TRANSFER PLATFORM 34
New HYDC-SSP 304 STAINLESS STEEL PLATFORM 22
HYDC-VBLK V BLOCK 27
HYDC-RR RUBBER ROLLER 22
model HYDC-FRKHK FORK HOOK 15
HYD-10-DC-SS
*OVERALL FORK WIDTH 22", LENGTH 25¾"
