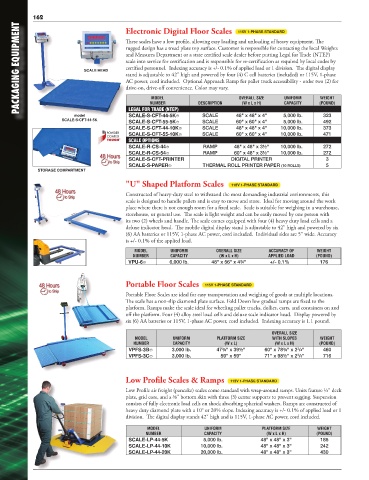

Page 156 - Vestil Catalog 112

162 Electronic Digital Floor Scales 115V 1-PHASE STANDARD
PACKAGING EQUIPMENT SCALE HEAD rugged design has a tread plate top surface. Customer is responsible for contacting the local Weights

These scales have a low profile, allowing easy loading and unloading of heavy equipment. The
and Measures Department or a state certified scale dealer before putting Legal for Trade (NTEP)
scale into service for certification and is responsible for re-certification as required by local codes by
certified personnel. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display
stand is adjustable to 42" high and powered by four (4) C cell batteries (included) or 115V, 1-phase
AC power, cord included. Optional Approach Ramp for pallet truck accessibility - order two (2) for
drive-on, drive-off convenience. Color may vary.
MODEL
WEIGHT
OVERALL SIZE
UNIFORM
(W x L x H)
CAPACITY
NUMBER
SCALE
323
model LEGAL FOR TRADE (NTEP) DESCRIPTION 48" x 48" x 4" 5,000 lb. (POUND)
SCALE-S-CFT-44-5K�
SCALE-S-CFT-44-5K SCALE 60" x 60" x 4" 5,000 lb. 492
SCALE-S-CFT-55-5K�
SCALE-S-CFT-44-10K� SCALE 48" x 48" x 4" 10,000 lb. 373
SCALE-S-CFT-55-10K� SCALE 60" x 60" x 4" 10,000 lb. 471
SCALE OPTIONS
SCALE-R-CS-44� RAMP 48" x 48" x 3½" 10,000 lb. 272
SCALE-R-CS-54� RAMP 60" x 48" x 3½" 10,000 lb. 272
SCALE-S-CFT-PRINTER DIGITAL PRINTER 3
SCALE-S-PAPER� THERMAL ROLL PRINTER PAPER (10 ROLLS) 5
STORAGE COMPARTMENT
"U" Shaped Platform Scales 115V 1-PHASE STANDARD
Constructed of heavy-duty steel to withstand the most demanding industrial environments, this
scale is designed to handle pallets and is easy to move and store. Ideal for moving around the work
place where there is not enough room for a fixed scale. Scale is suitable for weighing in a warehouse,
storehouse, or general use. The scale is light weight and can be easily moved by one person with
its two (2) wheels and handle. The scale comes equipped with four (4) heavy duty load cells and a
deluxe indicator head. The mobile digital display stand is adjustable to 42" high and powered by six
(6) AA batteries or 115V, 1-phase AC power, cord included. Individual sides are 5" wide. Accuracy
is +/- 0.1% of the applied load.
MODEL UNIFORM OVERALL SIZE ACCURACY OF WEIGHT
NUMBER CAPACITY (W x L x H) APPLIED LOAD (POUND)
VPU-6� 6,000 lb. 48" x 56" x 4¾" +/- 0.1% 176

Portable Floor Scales 115V 1-PHASE STANDARD
Portable Floor Scales are ideal for easy transportation and weighing of goods at multiple locations.
The scale has a non-slip diamond plate surface. Fold Down low gradual ramps are fixed to the
platform. Ramps make the scale ideal for wheeling pallet trucks, dollies, carts, and containers on and
off the platform. Four (4) alloy steel load cells and deluxe scale indicator head. Display powered by
six (6) AA batteries or 115V, 1-phase AC power, cord included. Indexing accuracy is 1.1 pound.
OVERALL SIZE
MODEL UNIFORM PLATFORM SIZE WITH SLOPES WEIGHT
NUMBER CAPACITY (W x L) (W x L x H) (POUND)
3
VPFS-3B� 3,000 lb. 47¾" x 39½" 60" x 78¾" x 2 /8" 460
3
VPFS-3C� 3,000 lb. 59" x 59" 71" x 98½" x 2 /8" 716
Low Profile Scales & Ramps 115V 1-PHASE STANDARD

Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature ½" deck
plate, grid core, and a ⅜" bottom skin with three (3) center supports to prevent sagging. Suspension
consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of
heavy duty diamond plate with a 10° or 20% slope. Indexing accuracy is +/- 0.1% of applied load or 1
division. The digital display stands 42" high and is 115V, 1-phase AC power, cord included.

MODEL UNIFORM PLATFORM SIZE WEIGHT
NUMBER CAPACITY (W x L x H) (POUND)
SCALE-LP-44-5K 5,000 lb. 48" x 48" x 3" 185
SCALE-LP-44-10K 10,000 lb. 48" x 48" x 3" 242
SCALE-LP-44-20K 20,000 lb. 48" x 48" x 3" 430
