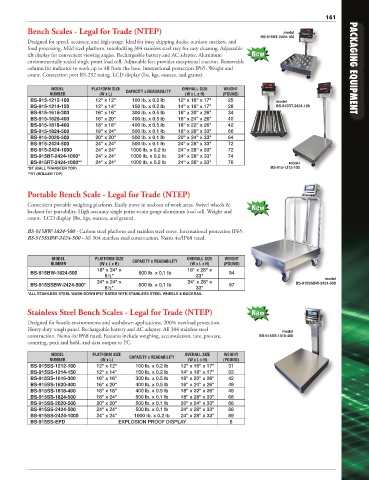

Page 155 - Vestil Catalog 112

161
Bench Scales - Legal for Trade (NTEP) model
BS-915BT-2424-100
Designed for speed, accuracy, and high usage. Ideal for busy shipping docks, outdoor markets, and
food processing. Mild steel platform, interlocking 304 stainless steel tray for easy cleaning. Adjustable
tilt display for convenient viewing angles. Rechargeable battery and AC adapter. Aluminum New
environmentally sealed single point load cell. Adjustable feet provides exceptional traction. Removable
column for indicator to work up to 4ft from the base. International protection IP65. Weight and PACKAGING EQUIPMENT
count. Connection port RS-232 rating. LCD display (lbs, kgs, ounces, and grams).

MODEL PLATFORM SIZE OVERALL SIZE WEIGHT
NUMBER (W x L) CAPACITY x READABILITY (W x L x H) (POUND)
BS-915-1212-100 12" x 12" 100 lb. x 0.2 lb 12" x 16" x 17" 25 model
BS-915-1214-150 12" x 14" 150 lb. x 0.2 lb 14" x 18" x 17" 26 BS-915RT-2424-100
BS-915-1616-300 16" x 16" 300 lb. x 0.5 lb 16" x 20" x 26" 34
BS-915-1620-400 16" x 20" 400 lb. x 0.5 lb 16" x 24" x 26" 40
BS-915-1818-400 18" x 18" 400 lb. x 0.5 lb 18" x 22" x 26" 42
BS-915-1824-500 18" x 24" 500 lb. x 0.1 lb 18" x 28" x 33" 66
BS-915-2020-500 20" x 20" 500 lb. x 0.1 lb 20" x 24" x 33" 64
BS-915-2424-500 24" x 24" 500 lb. x 0.1 lb 24" x 28" x 33" 72
BS-915-2424-1000 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 72
BS-915BT-2424-1000* 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 74
BS-915RT-2424-1000** 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 76 model
*BT (BALL TRANSFER TOP) BS-915-1212-100
**RT (ROLLER TOP)

Portable Bench Scale - Legal for Trade (NTEP)
Convenient portable weighing platform. Easily move in and out of work areas. Swivel wheels & New
backrest for portability. High accuracy single point strain gauge aluminum load cell. Weight and
count. LCD display (lbs, kgs, ounces, and grams).
BS-915BW-1824-500 - Carbon steel platform and stainless steel cover. International protection IP65.
BS-915SSBW-2424-500 - All 304 stainless steel construction. Nema 4x/IP68 rated.

MODEL PLATFORM SIZE OVERALL SIZE WEIGHT
NUMBER (W x L x H) CAPACITY x READABILITY (W x L x H) (POUND)
18" x 24" x 18" x 28" x
BS-915BW-1824-500 8½" 500 lb. x 0.1 lb 33" 94
24" x 24" x 24" x 28" x model
BS-915SSBW-2424-500* 500 lb. x 0.1 lb 97 BS-915SSBW-2424-500
8½" 33"
*ALL STAINLESS STEEL WASH-DOWN IP67 RATED WITH STAINLESS STEEL WHEELS & BACKRAIL

Stainless Steel Bench Scales - Legal for Trade (NTEP) New
Designed for hostile environments and washdown applications. 200% overload protection.
Heavy duty tough panel. Rechargeable battery and AC adapter. All 304 stainless steel model
construction. Nema 4x/IP68 rated. Features include weighing, accumulation, tare, pre-tare, BS-915SS-1818-400
counting, peak and hold, and data output to PC.

MODEL PLATFORM SIZE OVERALL SIZE WEIGHT
NUMBER (W x L) CAPACITY x READABILITY (W x L x H) (POUND)
BS-915SS-1212-100 12" x 12" 100 lb. x 0.2 lb 12" x 16" x 17" 31
BS-915SS-1214-150 12" x 14" 150 lb. x 0.2 lb 14" x 18" x 17" 33
BS-915SS-1616-300 16" x 16" 300 lb. x 0.5 lb 16" x 20" x 26" 42
BS-915SS-1620-400 16" x 20" 400 lb. x 0.5 lb 16" x 24" x 26" 49
BS-915SS-1818-400 18" x 18" 400 lb. x 0.5 lb 18" x 22" x 26" 49
BS-915SS-1824-500 18" x 24" 500 lb. x 0.1 lb 18" x 28" x 33" 68
BS-915SS-2020-500 20" x 20" 500 lb. x 0.1 lb 20" x 24" x 33" 68
BS-915SS-2424-500 24" x 24" 500 lb. x 0.1 lb 24" x 28" x 33" 88
BS-915SS-2424-1000 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 89
BS-915SS-EPD EXPLOSION PROOF DISPLAY 6
