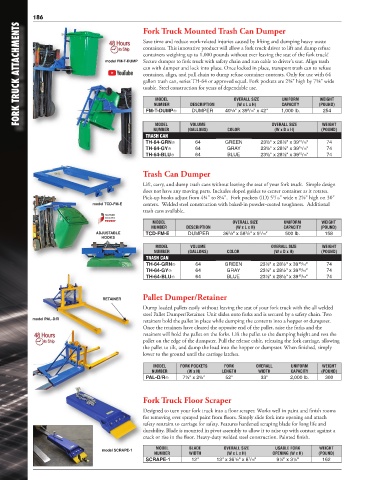

186 Fork Truck Mounted Trash Can Dumper
FORK TRUCK ATTACHMENTS model FM-T-DUMP containers. This innovative product will allow a fork truck driver to lift and dump refuse

Save time and reduce work-related injuries caused by lifting and dumping heavy waste
containers weighing up to 1,000 pounds without ever leaving the seat of the fork truck!
Secure dumper to fork truck with safety chain and run cable to driver's seat. Align trash
can with dumper and lock into place. Once locked in place, transport trash can to refuse
container, align, and pull chain to dump refuse container contents. Only for use with 64
gallon trash can, series TH-64 or approved equal. Fork pockets are 2⅝" high by 7⅝" wide
usable. Steel construction for years of dependable use.

OVERALL SIZE
UNIFORM
WEIGHT
MODEL
(W x L x H)
CAPACITY
NUMBER
DESCRIPTION
5
DUMPER
9
1,000 lb.
254
FM-T-DUMP�
VOLUME
WEIGHT
MODEL
(W x D x H)
(POUND)
NUMBER (GALLONS) 40 /8" x 39 /16" x 42" OVERALL SIZE (POUND)
COLOR
TRASH CAN
TH-64-GRN� 64 GREEN 23½" x 28½" x 39 /16" 74
15
TH-64-GY� 64 GRAY 23½" x 28½" x 39 /16" 74
15
15
TH-64-BLU� 64 BLUE 23½" x 28½" x 39 /16" 74
Trash Can Dumper
Lift, carry, and dump trash cans without leaving the seat of your fork truck. Simple design
does not have any moving parts. Includes sloped guides to center container as it rotates.
Pick-up hooks adjust from 4¼" to 8¼". Fork pockets (ID) 5 /16" wide x 2⅝" high on 30"
5
model TCD-FM-E centers. Welded steel construction with baked-in powder-coated toughness. Additional
trash cans available.
MODEL OVERALL SIZE UNIFORM WEIGHT
NUMBER DESCRIPTION (W x L x H) CAPACITY (POUND)
ADJUSTABLE TCD-FM-E DUMPER 36 /8" x 58 /8" x 9 /16" 500 lb. 158
1
3
5
HOOKS
MODEL VOLUME OVERALL SIZE WEIGHT
NUMBER (GALLONS) COLOR (W x D x H) (POUND)
TRASH CAN
15
TH-64-GRN� 64 GREEN 23½" x 28½" x 39 /16" 74
TH-64-GY� 64 GRAY 23½" x 28½" x 39 /16" 74
15
TH-64-BLU� 64 BLUE 23½" x 28½" x 39 /16" 74
15
Pallet Dumper/Retainer
RETAINER
Dump loaded pallets easily without leaving the seat of your fork truck with the all welded
steel Pallet Dumper/Retainer. Unit slides onto forks and is secured by a safety chain. Two
model PAL-D/R retainers hold the pallet in place while dumping the contents into a hopper or dumpster.
Once the retainers have cleared the opposite end of the pallet, raise the forks and the
retainers will hold the pallet on the forks. Lift the pallet to the dumping height and rest the
pallet on the edge of the dumpster. Pull the release cable, releasing the fork carriage, allowing
the pallet to tilt, and dump the load into the hopper or dumpster. When finished, simply
lower to the ground until the carriage latches.
MODEL FORK POCKETS FORK OVERALL UNIFORM WEIGHT
NUMBER (W x H) LENGTH WIDTH CAPACITY (POUND)
PAL-D/R� 7½" x 2½" 52" 33" 2,000 lb. 300
Fork Truck Floor Scraper
Designed to turn your fork truck into a floor scraper. Works well in paint and finish rooms
for removing over sprayed paint from floors. Simply slide fork into opening and attach
safety restraint to carriage for safety. Features hardened scraping blade for long life and
durability. Blade is mounted in pivot assembly to allow it to raise up with contact against a
crack or rise in the floor. Heavy-duty welded steel construction. Painted finish.
MODEL BLADE OVERALL SIZE USABLE FORK WEIGHT
model SCRAPE-1
NUMBER WIDTH (W x L x H) OPENING (W x H) (POUND)
SCRAPE-1 12" 13" x 36 /8" x 8 /16" 9¼" x 3¼" 162
7
1
