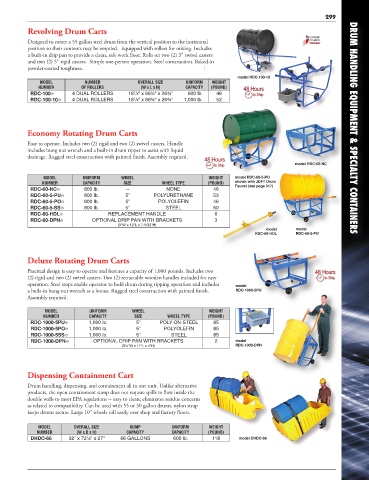

Page 293 - Vestil Catalog 112

299
Revolving Drum Carts

Designed to rotate a 55 gallon steel drum from the vertical position to the horizontal
position so their contents may be emptied. Equipped with rollers for mixing. Includes
a built-in drip pan to provide a clean, safe work floor. Rolls on two (2) 3" swivel casters
and two (2) 5" rigid casters. Simple one-person operation. Steel construction. Baked-in
powder-coated toughness.
model RDC-100-10
MODEL NUMBER OVERALL SIZE UNIFORM WEIGHT
NUMBER OF ROLLERS (W x L x H) CAPACITY (POUND)
7
RDC-100 4 DUAL ROLLERS 18 /8" x 66¾" x 26¾" 600 lb. 46
7
RDC-100-10 4 DUAL ROLLERS 18 /8" x 66¾" x 26¾" 1,000 lb. 52

Economy Rotating Drum Carts DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS

Easy to operate. Includes two (2) rigid and two (2) swivel casters. Handle
includes bung nut wrench and a built-in drum tipper to assist with liquid
drainage. Rugged steel construction with painted finish. Assembly required.
model RDC-60-NC

MODEL UNIFORM WHEEL WEIGHT model RDC-60-5-PO
NUMBER CAPACITY SIZE WHEEL TYPE (POUND) shown with JDFT Drum
Faucet (see page 317)
RDC-60-NC 800 lb. -- NONE 46
RDC-60-5-PU 800 lb. 5" POLYURETHANE 53
RDC-60-5-PO 800 lb. 5" POLYOLEFIN 46
RDC-60-5-SS 800 lb. 5" STEEL 60
RDC-60-HDL REPLACEMENT HANDLE 6
RDC-60-DPN OPTIONAL DRIP PAN WITH BRACKETS 3
(9"W x 12"L x 7-5/32"H)
model model
RDC-60-HDL RDC-60-5-PU

Deluxe Rotating Drum Carts
Practical design is easy to operate and features a capacity of 1,000 pounds. Includes two
(2) rigid and two (2) swivel casters. Two (2) retractable wooden handles included for easy
operation. Steel stops enable operator to hold drum during tipping operation and includes model
a built-in bung nut wrench as a bonus. Rugged steel construction with painted finish. RDC-1000-5PO
Assembly required.

MODEL UNIFORM WHEEL WEIGHT
NUMBER CAPACITY SIZE WHEEL TYPE (POUND)
RDC-1000-5PU 1,000 lb. 5" POLY-ON-STEEL 85
RDC-1000-5PO 1,000 lb. 5" POLYOLEFIN 85
RDC-1000-5SS 1,000 lb. 5" STEEL 85
RDC-1000-DPN OPTIONAL DRIP PAN WITH BRACKETS 2 model
(8¼"W x 11"L x 4"H) RDC-1000-DPN

Dispensing Containment Cart
Drum handling, dispensing, and containment all in one unit. Unlike alternative
products, the open containment sump does not require spills to flow inside the
double walls to meet EPA regulations -- easy to clean; eliminates residue concerns
as related to compatibility. Can be used with 55 or 30 gallon drums, nylon strap
keeps drums secure. Large 10" wheels roll easily over shop and factory floors.

MODEL OVERALL SIZE SUMP UNIFORM WEIGHT
NUMBER (W x D x H) CAPACITY CAPACITY (POUND)
DHDC-66 32" x 72¼" x 27" 66 GALLONS 600 lb. 118 model DHDC-66
