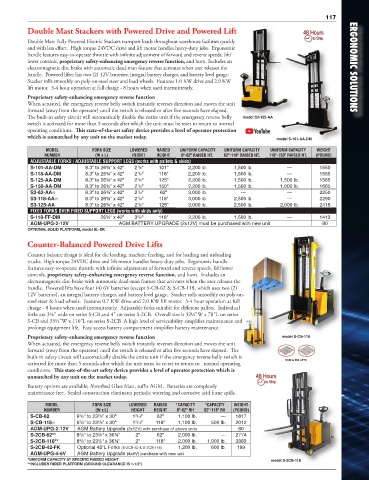

Double Mast Stackers with Powered Drive and Powered Lift

Double Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly
and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic
handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/
lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an
electromagnetic disc brake with automatic dead-man feature that activates when user releases the ERGONOMIC SOLUTIONS
handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge.
Stacker rolls smoothly on poly-on-steel steer and load wheels. Features 1.0 KW drive and 2.0 KW
lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit
forward (away from the operator) until the switch is released or after five seconds have elapsed.
The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly model S3-125-AA
switch is activated for more than 5 seconds after which the unit must be reset to return to normal
operating conditions. This state-of-the-art safety device provides a level of operator protection
which is unmatched by any unit on the market today. model S-101-AA-DM

MODEL FORK SIZE LOWERED RAISED UNIFORM CAPACITY UNIFORM CAPACITY UNIFORM CAPACITY WEIGHT
NUMBER (W x L) HEIGHT HEIGHT 0"-62" RAISED HT. 62"-118" RAISED HT. 118"-150" RAISED HT. (POUND)
ADJUSTABLE FORKS / ADJUSTABLE SUPPORT LEGS (works with pallets & skids)
S-101-AA-DM 8.3" to 26¾" x 42" 2 /8" 101" 2,200 lb. 1,500 lb. --- 1550
1
S-118-AA-DM 8.3" to 26¾" x 42" 2 /8" 118" 2,200 lb. 1,500 lb. --- 1555
1
S-125-AA-DM 8.3" to 26¾" x 42" 2 /8" 125" 2,200 lb. 1,500 lb. 1,500 lb. 1565
1
S-150-AA-DM 8.3" to 26¾" x 42" 2 /8" 150" 2,200 lb. 1,500 lb. 1,000 lb. 1665
1
1
S3-62-AA� 8.3" to 26¾" x 42" 2 /8" 62" 3,000 lb. --- --- 2250
S3-118-AA� 8.3" to 26¾" x 42" 2 /8" 118" 3,000 lb. 2,500 lb. --- 2290
1
S3-125-AA 8.3" to 26¾" x 42" 2 /8" 125" 3,000 lb. 2,500 lb. 2,000 lb. 2415
1
FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
S-118-FF-DM 26¾" x 42" 3 /8" 118" 2,200 lb. 1,500 lb. --- 1413
3
AGM-UPG-2-12V AGM BATTERY UPGRADE (2x12V) must be purchased with new unit 80
OPTIONAL SOLID PLATFORM, model SL-DK
Counter-Balanced Powered Drive Lifts
Counter balance design is ideal for die loading, machine feeding, and for loading and unloading
trucks. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle
features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower
controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an
electromagnetic disc brake with automatic dead-man feature that activates when the user releases the
handle. Powered lifts have four (4) 6V batteries (except S-CB-62 & S-CB-118, which uses two (2)
12V batteries), an integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-
steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full
charge - 8 hours when used intermittently. Adjustable forks suitable for different pallets. Individual
forks are 3⅛" wide on series S-CB and 4" on series S-2CB. Overall size is 32¼"W x 78"L on series
S-CB and 35½"W x 110"L on series S-2CB A high level of serviceability simplifies maintenance and
prolongs equipment life. Easy access battery compartment simplifies battery maintenance.
Proprietary safety-enhancing emergency reverse function model S-CB-118
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit
forward (away from the operator) until the switch is released or after five seconds have elapsed. The
built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is
activated for more than 5 seconds after which the unit must be re-set to return to normal operating SKID & PALLETS
conditions. This state-of-the-art safety device provides a level of operator protection which is
unmatched by any unit on the market today.
Battery options are available; Absorbed Glass Matt, suffix AGM. Batteries are completely
maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.

MODEL FORK SIZE LOWERED RAISED *CAPACITY *CAPACITY WEIGHT
NUMBER (W x L) HEIGHT HEIGHT 0"-62" RH 62"-118" RH (POUND)
S-CB-62 6 /8" to 23 /8" x 30" 1 /16" 62" 1,100 lb. --- 1817
5
3
3
S-CB-118� 6 /8" to 23 /8" x 30" 1 /16" 118" 1,100 lb. 500 lb. 2012
3
3
5
AGM-UPG-2-12V AGM Battery Upgrade (2x12V) with purchase of above units 80
S-2CB-62** 8 /8" to 23¼" x 36¼" 2" 62" 2,000 lb. --- 2774
3
S-2CB-118** 8 /8" to 23¼" x 36¼" 2" 118" 2,000 lb. 1,000 lb. 2883
3
S-2CB-42-FK Optional 42"L Forks (S-2CB-62 & S-2CB-118) 1,200 lb. 600 lb. 199
AGM-UPG-4-6V AGM Battery Upgrade (4x6V) purchase with new unit
*UNIFORM CAPACITY AT SPECIFIC RAISED HEIGHT model S-2CB-118
**INCLUDES RIDER PLATFORM (GROUND CLEARANCE IS 1-1/2")
