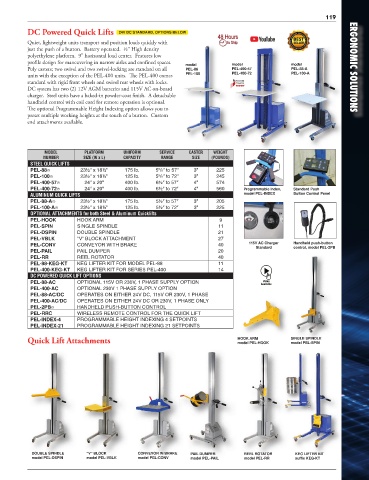

Page 113 - Vestil Catalog 112

119

DC Powered Quick Lifts 24V DC STANDARD, OPTIONS BELOW
Quiet, lightweight units transport and position loads quickly with
just the push of a button. Battery operated. ½" High density
polyethylene platform. 9" horizontal load center. Features low
profile design for maneuvering in narrow aisles and confined spaces. model model model
Poly casters; two swivel and two swivel-locking are standard on all PEL-88 PEL-400-57 PEL-88-A ERGONOMIC SOLUTIONS
units with the exception of the PEL-400 units. The PEL-400 comes PEL-100 PEL-400-72 PEL-100-A
standard with rigid front wheels and swivel rear wheels with locks.
DC system has two (2) 12V AGM batteries and 115V AC on-board
charger. Steel units have a baked-in powder-coat finish. A detachable
handheld control with coil cord for remote operation is optional.
The optional Programmable Height Indexing option allows you to
preset multiple working heights at the touch of a button. Custom
end attachments available.

MODEL PLATFORM UNIFORM SERVICE CASTER WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE SIZE (POUNDS)
STEEL QUICK LIFTS
5
PEL-88� 23½" x 18½" 175 lb. 5 /8" to 57" 3" 225
5
PEL-100� 23½" x 18½" 125 lb. 5 /8" to 72" 3" 245
PEL-400-57� 24" x 20" 400 lb. 6½" to 57" 4" 574
PEL-400-72� 24" x 20" 400 lb. 6½" to 72" 4" 560 Programmable Index, Standard Push
ALUMINUM QUICK LIFTS model PEL-INDEX Button Control Panel
PEL-88-A� 23½" x 18½" 175 lb. 5½" to 57" 3" 205
PEL-100-A� 23½" x 18½" 125 lb. 5½" to 72" 3" 225
OPTIONAL ATTACHMENTS for both Steel & Aluminum Quicklifts
PEL-HOOK HOOK ARM 9
PEL-SPIN SINGLE SPINDLE 11
PEL-DSPIN DOUBLE SPINDLE 21
PEL-VBLK "V" BLOCK ATTACHMENT 27
PEL-CONV CONVEYOR WITH BRAKE 40 115V AC Charger Handheld push-button
control, model PEL-2PB
Standard
PEL-PAIL PAIL DUMPER 20
PEL-RR REEL ROTATOR 40
PEL-88-KEG-KT KEG LIFTER KIT FOR MODEL PEL-88 11
PEL-400-KEG-KT KEG LIFTER KIT FOR SERIES PEL-400 14
DC POWERED QUICK LIFT OPTIONS
PEL-88-AC OPTIONAL 115V OR 230V, 1 PHASE SUPPLY OPTION
PEL-400-AC OPTIONAL 230V 1 PHASE SUPPLY OPTION
PEL-88-AC/DC OPERATES ON EITHER 24V DC, 115V OR 230V, 1 PHASE
PEL-400-AC/DC OPERATES ON EITHER 24V DC OR 230V, 1 PHASE ONLY
PEL-2PB� HANDHELD PUSH-BUTTON CONTROL
PEL-RRC WIRELESS REMOTE CONTROL FOR THE QUICK LIFT
PEL-INDEX-4 PROGRAMMABLE HEIGHT INDEXING 4 SETPOINTS
PEL-INDEX-21 PROGRAMMABLE HEIGHT INDEXING 21 SETPOINTS
Quick Lift Attachments HOOK ARM SINGLE SPINDLE
model PEL-SPIN
model PEL-HOOK

DOUBLE SPINDLE "V" BLOCK CONVEYOR W/BRAKE PAIL DUMPER REEL ROTATOR KEG LIFTER KIT
model PEL-DSPIN model PEL-VBLK model PEL-CONV model PEL-PAIL model PEL-RR suffix KEG-KT
