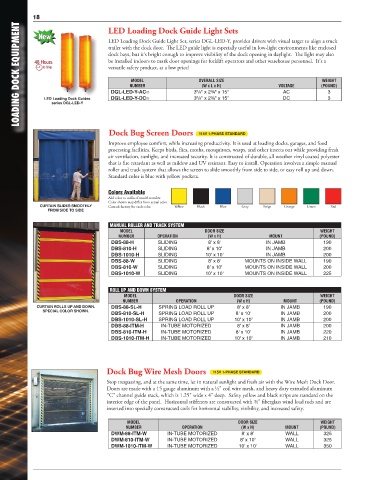

Page 12 - Vestil Catalog 112

18 New LED Loading Dock Guide Light Sets
LOADING DOCK EQUIPMENT LED Loading Dock Guides trailer with the dock door. The LED guide light is especially useful in low-light environments like enclosed

LED Loading Dock Guide Light Set, series DGL-LED-Y, provides drivers with visual target to align a truck
dock bays, but it's bright enough to improve visibility of the dock opening in daylight. The light may also
be installed indoors to mark door openings for forklift operators and other warehouse personnel. It's a
versatile safety product, at a low price!

WEIGHT
MODEL
OVERALL SIZE
VOLTAGE
(W x L x H)
(POUND)
NUMBER
3 /8" x 2¾" x 15"
DGL-LED-Y-AC�
5
AC
3
DC
5
DGL-LED-Y-DC�
3
3 /8" x 2¾" x 15"
series DGL-LED-Y
Dock Bug Screen Doors 115V 1-PHASE STANDARD
Improve employee comfort, while increasing productivity. It is used at loading docks, garages, and food
processing facilities. Keeps birds, flies, moths, mosquitoes, wasps, and other insects out while providing fresh
air ventilation, sunlight, and increased security. It is constructed of durable, all weather vinyl coated polyester
that is fire retardant as well as mildew and UV resistant. Easy to install. Operation involves a simple manual
roller and track system that allows the screen to slide smoothly from side to side, or easy roll up and down.
Standard color is blue with yellow pockets.
Colors Available
Add color to suffix of model number.
Color shown may differ from actual color.
CURTAIN SLIDES SMOOTHLY Consult factory for each color. Yellow Black Blue Gray Beige Orange Green Red
FROM SIDE TO SIDE
MANUAL ROLLER AND TRACK SYSTEM
MODEL DOOR SIZE WEIGHT
NUMBER OPERATION (W x H) MOUNT (POUND)
DBS-88-H SLIDING 8' x 8' IN JAMB 190
DBS-810-H SLIDING 8' x 10' IN JAMB 200
DBS-1010-H SLIDING 10' x 10' IN JAMB 200
DBS-88-W SLIDING 8' x 8' MOUNTS ON INSIDE WALL 190
DBS-810-W SLIDING 8' x 10' MOUNTS ON INSIDE WALL 200
DBS-1010-W SLIDING 10' x 10' MOUNTS ON INSIDE WALL 225

ROLL UP AND DOWN SYSTEM
MODEL DOOR SIZE WEIGHT
NUMBER OPERATION (W x H) MOUNT (POUND)
CURTAIN ROLLS UP AND DOWN. DBS-88-SL-H SPRING LOAD ROLL UP 8' x 8' IN JAMB 190
SPECIAL COLOR SHOWN.
DBS-810-SL-H SPRING LOAD ROLL UP 8' x 10' IN JAMB 200
DBS-1010-SL-H SPRING LOAD ROLL UP 10' x 10' IN JAMB 200
DBS-88-ITM-H IN-TUBE MOTORIZED 8' x 8' IN JAMB 200
DBS-810-ITM-H IN-TUBE MOTORIZED 8' x 10' IN JAMB 220
DBS-1010-ITM-H IN-TUBE MOTORIZED 10' x 10' IN JAMB 210

Dock Bug Wire Mesh Doors 115V 1-PHASE STANDARD
Stop trespassing, and at the same time, let in natural sunlight and fresh air with the Wire Mesh Dock Door.
Doors are made with a 15 gauge aluminum with a ½" coil wire mesh, and heavy duty extruded aluminum
“C” channel guide track, which is 1.25" wide x 4" deep. Safety yellow and black strips are standard on the
interior edge of the panel. Horizontal stiffeners are constructed with ¾" fiberglass wind load rods and are
inserted into specially constructed coils for horizontal stability, visibility, and increased safety.

MODEL DOOR SIZE WEIGHT
NUMBER OPERATION (W x H) MOUNT (POUND)
DWM-88-ITM-W IN-TUBE MOTORIZED 8' x 8' WALL 325
DWM-810-ITM-W IN-TUBE MOTORIZED 8' x 10' WALL 325
DWM-1010-ITM-W IN-TUBE MOTORIZED 10' x 10' WALL 350
