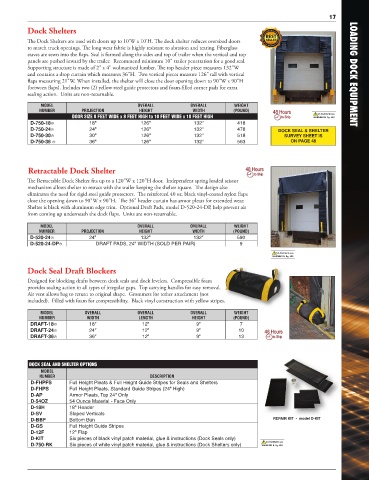

Page 11 - Vestil Catalog 112

17
Dock Shelters

The Dock Shelters are used with doors up to 10'W x 10'H. The dock shelter reduces oversized doors
to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass
staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top
panels are pushed inward by the trailer. Recommend minimum 10" trailer penetration for a good seal.
Supporting structure is made of 2" x 4" wolmanized lumber. The top header piece measures 132"W
and contains a drop curtain which measures 36"H. Two vertical pieces measure 126" tall with vertical LOADING DOCK EQUIPMENT
flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H
(between flaps). Includes two (2) yellow steel guide protectors and foam-filled corner pads for extra
sealing action. Units are non-returnable.

MODEL OVERALL OVERALL WEIGHT
NUMBER PROJECTION HEIGHT WIDTH (POUND)
CA Residents see
DOOR SIZE 8 FEET WIDE x 8 FEET HIGH to 10 FEET WIDE x 10 FEET HIGH WARNING B, Pg. 459
D-750-18� 18" 126" 132" 418
D-750-24� 24" 126" 132" 478 DOCK SEAL & SHELTER
D-750-30� 30" 126" 132" 518 SURVEY SHEET IS
D-750-36 � 36" 126" 132" 563 ON PAGE 48

Retractable Dock Shelter
The Retractable Dock Shelter fits up to a 120"W x 120"H door. Independent spring loaded scissor
mechanism allows shelter to retract with the trailer keeping the shelter square. The design also
eliminates the need for rigid steel guide protectors. The reinforced 40 oz. black vinyl-coated nylon flaps
close the opening down to 90"W x 90"H. The 36" header curtain has armor pleats for extended wear.
Shelter is black with aluminum edge trim. Optional Draft Pads, model D-520-24-DP, help prevent air
from coming up underneath the dock flaps. Units are non-returnable.

MODEL OVERALL OVERALL WEIGHT
NUMBER PROJECTION HEIGHT WIDTH (POUND)
D-520-24� 24" 132" 132" 590
D-520-24-DP� DRAFT PADS, 24" WIDTH (SOLD PER PAIR) 9
CA Residents see
WARNING B, Pg. 459
Dock Seal Draft Blockers

Designed for blocking drafts between dock seals and dock levelers. Compressible foam
provides sealing action in all types of irregular gaps. Top carrying handles for easy removal.
Air vent allows bag to return to original shape. Grommets for tether attachment (not
included). Filled with foam for compressibility. Black vinyl construction with yellow stripes.
MODEL OVERALL OVERALL OVERALL WEIGHT
NUMBER WIDTH LENGTH HEIGHT (POUND)
DRAFT-18� 18" 12" 9" 7
DRAFT-24� 24" 12" 9" 10
DRAFT-36� 36" 12" 9" 13

DOCK SEAL AND SHELTER OPTIONS
MODEL
NUMBER DESCRIPTION
D-FHPFS Full Height Pleats & Full Height Guide Stripes for Seals and Shelters
D-FHPS Full Height Pleats, Standard Guide Stripes (24" High)
D-AP Armor Pleats, Top 24" Only
D-54OZ 54 Ounce Material - Face Only
D-18H 18" Header
D-SV Sloped Verticals
D-BBF Bottom Bun REPAIR KIT • model D-KIT
D-GS Full Height Guide Stripes
D-12F 12" Flap
D-KIT Six pieces of black vinyl patch material, glue & instructions (Dock Seals only)
CA Residents see
D-750-RK Six pieces of white vinyl patch material, glue & instructions (Dock Shelters only) WARNING B, Pg. 459
