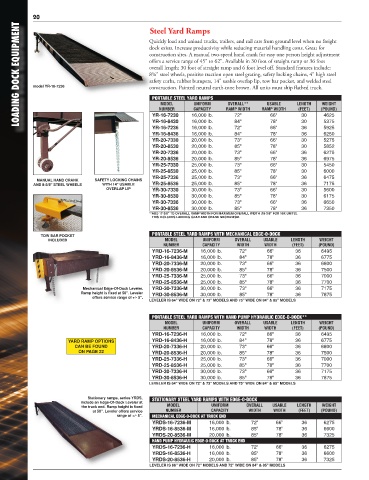

Page 14 - Vestil Catalog 112

20 Quickly load and unload trucks, trailers, and rail cars from ground level when no freight
LOADING DOCK EQUIPMENT model YR-16-7236 dock exists. Increase productivity while reducing material handling costs. Great for
Steel Yard Ramps

construction sites. A manual two-speed hand crank for easy one person height adjustment
offers a service range of 45" to 62". Available in 30 foot of straight ramp or 36 foot
overall length; 30 foot of straight ramp and 6 foot level off. Standard features include:
8⅝" steel wheels, positive traction open steel grating, safety locking chains, 4" high steel
safety curbs, rubber bumpers, 14" usable overlap lip, tow bar pocket, and welded steel
construction. Painted neutral earth-tone brown. All units must ship flatbed truck.
PORTABLE STEEL YARD RAMPS
WEIGHT
OVERALL**
MODEL
UNIFORM
USABLE
NUMBER
CAPACITY
(FEET)
YR-16-7230
66"
30
72"
4625
YR-16-8430
16,000 lb.
84"
5375
78"
30
YR-16-7236 16,000 lb. RAMP WIDTH RAMP WIDTH LENGTH (POUND)
16,000 lb.
66"
36
5925
72"
YR-16-8436 16,000 lb. 84" 78" 36 6250
YR-20-7330 20,000 lb. 73" 66" 30 5275
YR-20-8530 20,000 lb. 85" 78" 30 5852
YR-20-7336 20,000 lb. 73" 66" 36 6275
YR-20-8536 20,000 lb. 85" 78" 36 6975
YR-25-7330 25,000 lb. 73" 66" 30 5450
YR-25-8530 25,000 lb. 85" 78" 30 6000
YR-25-7336 25,000 lb. 73" 66" 36 6475
MANUAL HAND CRANK SAFETY LOCKING CHAINS
AND 8-5/8" STEEL WHEELS WITH 14" USABLE YR-25-8536 25,000 lb. 85" 78" 36 7175
OVERLAP LIP YR-30-7330 30,000 lb. 73" 66" 30 5600
YR-30-8530 30,000 lb. 85" 78" 30 6175
YR-30-7336 30,000 lb. 73" 66" 36 6650
YR-30-8536 30,000 lb. 85" 78" 36 7350
**ADD 17-3/8" TO OVERALL RAMP WIDTH FOR MAXIMUM OVERALL WIDTH (18-3/8" FOR 16K UNITS).
THIS INCLUDES LANDING GEAR AND CRANK MECHANISM.
TOW BAR POCKET PORTABLE STEEL YARD RAMPS WITH MECHANICAL EDGE-O-DOCK
INCLUDED MODEL UNIFORM OVERALL USABLE LENGTH WEIGHT
NUMBER CAPACITY WIDTH WIDTH (FEET) (POUND)
YRD-16-7236-M 16,000 lb. 72" 66" 36 6495
YRD-16-8436-M 16,000 lb. 84" 78" 36 6775
YRD-20-7336-M 20,000 lb. 73" 66" 36 6800
YRD-20-8536-M 20,000 lb. 85" 78" 36 7500
YRD-25-7336-M 25,000 lb. 73" 66" 36 7000
YRD-25-8536-M 25,000 lb. 85" 78" 36 7700
Mechanical Edge-Of-Dock Leveler. YRD-30-7336-M 30,000 lb. 73" 66" 36 7175
Ramp height is fixed at 50". Leveler YRD-30-8536-M 30,000 lb. 85" 78" 36 7875
offers service range of +/- 5".
LEVELER IS 64" WIDE ON 72" & 73" MODELS AND 75" WIDE ON 84" & 85" MODELS
PORTABLE STEEL YARD RAMPS WITH HAND PUMP HYDRAULIC EDGE-O-DOCK**
MODEL UNIFORM OVERALL USABLE LENGTH WEIGHT
NUMBER CAPACITY WIDTH WIDTH (FEET) (POUND)
YRD-16-7236-H 16,000 lb. 72" 66" 36 6495
YARD RAMP OPTIONS YRD-16-8436-H 16,000 lb. 84" 78" 36 6775
CAN BE FOUND YRD-20-7336-H 20,000 lb. 73" 66" 36 6800
ON PAGE 22 YRD-20-8536-H 20,000 lb. 85" 78" 36 7500
YRD-25-7336-H 25,000 lb. 73" 66" 36 7000
YRD-25-8536-H 25,000 lb. 85" 78" 36 7700
YRD-30-7336-H 30,000 lb. 73" 66" 36 7175
YRD-30-8536-H 30,000 lb. 85" 78" 36 7875
LEVELER IS 64" WIDE ON 72" & 73" MODELS AND 75" WIDE ON 84" & 85" MODELS
Stationary ramps, series YRDS, STATIONARY STEEL YARD RAMPS WITH EDGE-O-DOCK
include an Edge-Of-Dock Leveler at
the truck end. Ramp height is fixed MODEL UNIFORM OVERALL USABLE LENGTH WEIGHT
at 50". Leveler offers service NUMBER CAPACITY WIDTH WIDTH (FEET) (POUND)
range of +/- 5". MECHANICAL EDGE-O-DOCK AT TRUCK END
YRDS-16-7236-M 16,000 lb. 72" 66" 36 6275
YRDS-16-8536-M 16,000 lb. 85" 78" 36 6600
YRDS-20-8536-M 20,000 lb. 85" 78" 36 7325
HAND PUMP HYDRAULIC EDGE-O-DOCK AT TRUCK END
YRDS-16-7236-H 16,000 lb. 72" 66" 36 6275
YRDS-16-8536-H 16,000 lb. 85" 78" 36 6600
YRDS-20-8536-H 20,000 lb. 85" 78" 36 7325
LEVELER IS 66" WIDE ON 72" MODELS AND 72" WIDE ON 84" & 85" MODELS
