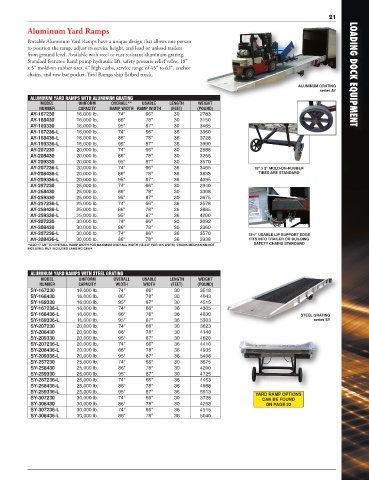

Aluminum Yard Ramps

Portable Aluminum Yard Ramps have a unique design that allows one person
to position the ramp, adjust its service height, and load or unload trailers
from ground level. Available with steel or rust resistant aluminum grating.
Standard features: hand pump hydraulic lift, safety pressure relief valve, 18"
x 5" mold-on-rubber tires, 4" high curbs, service range of 45" to 62", anchor
chains, and tow bar pocket. Yard Ramps ship flatbed truck. LOADING DOCK EQUIPMENT

ALUMINUM GRATING
series AY
ALUMINUM YARD RAMPS WITH ALUMINUM GRATING
MODEL UNIFORM OVERALL** USABLE LENGTH WEIGHT
NUMBER CAPACITY RAMP WIDTH RAMP WIDTH (FEET) (POUND)
AY-167230 16,000 lb. 74" 66" 30 2783
AY-168430 16,000 lb. 86" 78" 30 3150
AY-169330 16,000 lb. 95" 87" 30 3465
AY-167236-L 16,000 lb. 74" 66" 36 3360
AY-168436-L 16,000 lb. 86" 78" 36 3728
AY-169336-L 16,000 lb. 95" 87" 36 3990
AY-207230 20,000 lb. 74" 66" 30 2888
AY-208430 20,000 lb. 86" 78" 30 3255
AY-209330 20,000 lb. 95" 87" 30 3570
AY-207236-L 20,000 lb. 74" 66" 36 3465 18" x 5" MOLD-ON-RUBBER
AY-208436-L 20,000 lb. 86" 78" 36 3833 TIRES ARE STANDARD
AY-209336-L 20,000 lb. 95" 87" 36 4095
AY-257230 25,000 lb. 74" 66" 30 2940
AY-258430 25,000 lb. 86" 78" 30 3308
AY-259330 25,000 lb. 95" 87" 30 3675
AY-257236-L 25,000 lb. 74" 66" 36 3578
AY-258436-L 25,000 lb. 86" 78" 36 3885
AY-259336-L 25,000 lb. 95" 87" 36 4200
AY-307230 30,000 lb. 74" 66" 30 3092
AY-308430 30,000 lb. 86" 78" 30 3360
AY-307236-L 30,000 lb. 74" 66" 36 3570 13½" USABLE LIP SUPPORT EDGE
AY-308436-L 30,000 lb. 86" 78" 36 3938 FITS INTO TRAILER OR BUILDING
**ADD 17-3/8" TO OVERALL RAMP WIDTH FOR MAXIMUM OVERALL WIDTH (18-3/8" FOR 16K UNITS). CRANK MECHANISM NOT SAFETY CHAINS STANDARD
INCLUDED, BUT INCLUDES LANDING GEAR.

ALUMINUM YARD RAMPS WITH STEEL GRATING
MODEL UNIFORM OVERALL USABLE LENGTH WEIGHT
NUMBER CAPACITY WIDTH WIDTH (FEET) (POUND)
SY-167230 16,000 lb. 74" 66" 30 3518
SY-168430 16,000 lb. 86" 78" 30 4043
SY-169330 16,000 lb. 95" 87" 30 4515
SY-167236-L 16,000 lb. 74" 66" 36 4305
SY-168436-L 16,000 lb. 86" 78" 36 4830 STEEL GRATING
SY-169336-L 16,000 lb. 95" 87" 36 5303 series SY
SY-207230 20,000 lb. 74" 66" 30 3623
SY-208430 20,000 lb. 86" 78" 30 4148
SY-209330 20,000 lb. 95" 87" 30 4620
SY-207236-L 20,000 lb. 74" 66" 36 4410
SY-208436-L 20,000 lb. 86" 78" 36 4935
SY-209336-L 20,000 lb. 95" 87" 36 5408
SY-257230 25,000 lb. 74" 66" 30 3675
SY-258430 25,000 lb. 86" 78" 30 4200
SY-259330 25,000 lb. 95" 87" 30 4725
SY-257236-L 25,000 lb. 74" 66" 36 4463
SY-258436-L 25,000 lb. 86" 78" 36 4988
SY-259336-L 25,000 lb. 95" 87" 36 5513 YARD RAMP OPTIONS
SY-307230 30,000 lb. 74" 66" 30 3728 CAN BE FOUND
SY-308430 30,000 lb. 86" 78" 30 4253 ON PAGE 22
SY-307236-L 30,000 lb. 74" 66" 36 4515
SY-308436-L 30,000 lb. 86" 78" 36 5040
