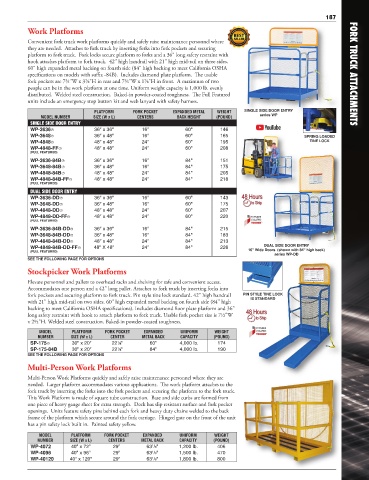

Page 181 - Vestil Catalog 112

187
Work Platforms

Convenient fork truck work platforms quickly and safely raise maintenance personnel where
they are needed. Attaches to fork truck by inserting forks into fork pockets and securing
platform to fork truck. Fork locks secure platform to forks and a 36" long safety restraint with
hook attaches platform to fork truck. 42" high handrail with 21" high mid-rail on three sides.
60" high expanded metal backing on fourth side (84" high backing to meet California OSHA
specifications on models with suffix -84B). Includes diamond plate platform. The usable FORK TRUCK ATTACHMENTS
fork pockets are 7¾"W x 3⅞"H in rear and 7¾"W x 1⅞"H in front. A maximum of two
people can be in the work platform at one time. Uniform weight capacity is 1,000 lb. evenly
distributed. Welded steel construction. Baked-in powder-coated toughness. The Full Featured
units include an emergency stop button kit and web lanyard with safety harness.
PLATFORM FORK POCKET EXPANDED METAL WEIGHT SINGLE SIDE DOOR ENTRY
MODEL NUMBER SIZE (W x L) CENTERS BACK HEIGHT (POUND) series WP
SINGLE SIDE DOOR ENTRY
WP-3636� 36" x 36" 16" 60" 146
WP-3648� 36" x 48" 16" 60" 165 SPRING LOADED
WP-4848� 48" x 48" 24" 60" 195 TINE LOCK
WP-4848-FF� 48" x 48" 24" 60" 208
(FULL FEATURED)
WP-3636-84B� 36" x 36" 16" 84" 151
WP-3648-84B� 36" x 48" 16" 84" 175
WP-4848-84B� 48" x 48" 24" 84" 205
WP-4848-84B-FF� 48" x 48" 24" 84" 218
(FULL FEATURED)
DUAL SIDE DOOR ENTRY
WP-3636-DD� 36" x 36" 16" 60" 143
WP-3648-DD� 36" x 48" 16" 60" 175
WP-4848-DD� 48" x 48" 24" 60" 207
WP-4848-DD-FF� 48" x 48" 24" 60" 220
(FULL FEATURED)
WP-3636-84B-DD� 36" x 36" 16" 84" 215
WP-3648-84B-DD� 36" x 48" 16" 84" 183
WP-4848-84B-DD� 48" x 48" 24" 84" 213
DUAL SIDE DOOR ENTRY
WP-4848-84B-DD-FF� 48" X 48" 24" 84" 226
(FULL FEATURED) 16" Wide Doors (shown with 84" high back)
series WP-DD
SEE THE FOLLOWING PAGE FOR OPTIONS
Stockpicker Work Platforms
Elevate personnel and pallets to overhead racks and shelving for safe and convenient access.
Accommodates one person and a 42" long pallet. Attaches to fork truck by inserting forks into
fork pockets and securing platform to fork truck. Pin style tine lock standard. 42" high handrail PIN STYLE TINE LOCK
with 21" high mid-rail on two sides. 60" high expanded metal backing on fourth side (84" high IS STANDARD
backing to meet California OSHA specifications). Includes diamond floor plate platform and 36"
long safety restraint with hook to attach platform to fork truck. Usable fork pocket size is 7½"W
x 2½"H. Welded steel construction. Baked-in powder-coated toughness.
MODEL PLATFORM FORK POCKET EXPANDED UNIFORM WEIGHT
NUMBER SIZE (W x L) CENTER METAL BACK CAPACITY (POUND)
SP-175� 30" x 20" 22¼" 60" 4,000 lb. 174
SP-175-84B 30" x 20" 22¼" 84" 4,000 lb. 190
SEE THE FOLLOWING PAGE FOR OPTIONS
Multi-Person Work Platforms
Multi-Person Work Platforms quickly and safely raise maintenance personnel where they are
needed. Larger platform accommodates various applications. The work platform attaches to the
fork truck by inserting the forks into the fork pockets and securing the platform to the fork truck.
This Work Platform is made of square tube construction. Base and side curbs are formed from
one piece of heavy gauge sheet for extra strength. Deck has slip resistant surface and fork pocket
openings. Units feature safety pins behind each fork and heavy duty chains welded to the back
frame of the platform which secure around the fork carriage. Hinged gate on the front of the unit
has a pin safety lock built in. Painted safety yellow.
MODEL PLATFORM FORK POCKET EXPANDED UNIFORM WEIGHT
NUMBER SIZE (W x L) CENTERS METAL BACK CAPACITY (POUND)
WP-4072 40" x 72" 29" 63 /8" 1,200 lb. 406
1
WP-4096 40" x 96" 29" 63 /8" 1,500 lb. 470
1
WP-40120 40" x 120" 29" 63 /8" 1,800 lb. 800
1
