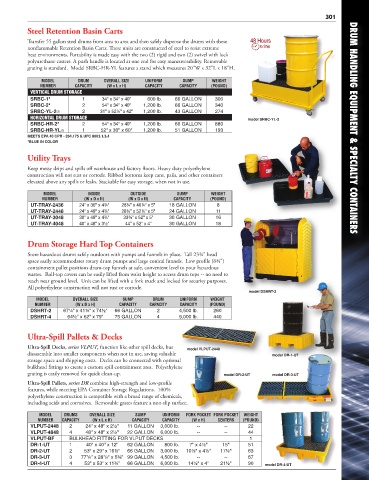

Page 295 - Vestil Catalog 112

301
Steel Retention Basin Carts

Transfer 55 gallon steel drums from area to area and then safely dispense the drums with these
nonflammable Retention Basin Carts. These units are constructed of steel to resist extreme
heat environments. Portability is made easy with the two (2) rigid and two (2) swivel with lock
polyurethane casters. A push handle is located at one end for easy maneuverability. Removable
grating is standard. Model SRBC-HR-YL features a stand which measures 20"W x 32"L x 18"H.

MODEL DRUM OVERALL SIZE UNIFORM SUMP WEIGHT
NUMBER CAPACITY (W x L x H) CAPACITY CAPACITY (POUND)
VERTICAL DRUM STORAGE
SRBC-1* 1 34" x 34" x 40" 600 lb. 66 GALLON 300
SRBC-2* 2 54" x 34" x 40" 1,200 lb. 66 GALLON 340
SRBC-YL-2 2 31" x 52¼" x 42" 1,200 lb. 43 GALLON 274
HORIZONTAL DRUM STORAGE model SRBC-YL-2
SRBC-HR-2* 2 54" x 34" x 40" 1,200 lb. 66 GALLON 880
SRBC-HR-YL 1 52" x 30" x 60" 1,200 lb. 51 GALLON 193 DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
MEETS EPA 40 CPR - 264.175 & UFC 8003.1.3.4
*BLUE IN COLOR

Utility Trays

Keep messy drips and spills off warehouse and factory floors. Heavy duty polyethylene
construction will not rust or corrode. Ribbed bottoms keep cans, pails, and other containers
elevated above any spills or leaks. Stackable for easy storage, when not in use.

MODEL INSIDE OUTSIDE SUMP WEIGHT
NUMBER (W x D x H) (W x D x H) CAPACITY (POUND)
UT-TRAY-2436 24" x 36" x 4¾" 28¼" x 40¼" x 5" 18 GALLON 8
UT-TRAY-2448 24" x 48" x 4¾" 28¼" x 52¼" x 5" 24 GALLON 11
UT-TRAY-3048 30" x 48" x 4¾" 33¾" x 52" x 5" 30 GALLON 16
UT-TRAY-4048 40" x 48" x 3½" 44" x 52" x 4" 30 GALLON 18

Drum Storage Hard Top Containers
Store hazardous drums safely outdoors with pumps and funnels in place. Tall 23¾" head
space easily accommodates rotary drum pumps and large conical funnels. Low profile (8¾")
containment pallet positions drum-top funnels at safe, convenient level to pour hazardous
wastes. Roll-top covers can be easily lifted from waist height to access drum tops -- no need to
reach near ground level. Unit can be lifted with a fork truck and locked for security purposes.
All polyethylene construction will not rust or corrode.
model DSHRT-2
MODEL OVERALL SIZE SUMP DRUM UNIFORM WEIGHT
NUMBER (W x D x H) CAPACITY CAPACITY CAPACITY (POUND)
DSHRT-2 67¼" x 41¼" x 74½" 66 GALLON 2 4,500 lb. 260
DSHRT-4 64½" x 62" x 79" 75 GALLON 4 9,000 lb. 440

Ultra-Spill Pallets & Decks
Ultra-Spill Decks, series VLPUT, function like other spill decks, but model VLPUT-2448
disassemble into smaller components when not in use, saving valuable model DR-1-UT
storage space and shipping costs. Decks can be connected with optional
bulkhead fittings to create a custom spill containment area. Polyethylene
grating is easily removed for quick clean-up. model DR-2-UT model DR-3-UT
Ultra-Spill Pallets, series DR combine high-strength and low-profile
features, while meeting EPA Container Storage Regulations. 100%
polyethylene construction is compatible with a broad range of chemicals,
including acids and corrosives. Removable grates feature a non-slip surface.
MODEL DRUMS OVERALL SIZE SUMP UNIFORM FORK POCKET FORK POCKET WEIGHT
NUMBER CAPACITY (W x L x H) CAPACITY CAPACITY (W x H) CENTERS (POUND)
VLPUT-2448 2 24" x 48" x 2½" 11 GALLON 3,000 lb. -- -- 22
VLPUT-4848 4 48" x 48" x 2½" 22 GALLON 6,000 lb. -- -- 44
VLPUT-BF BULKHEAD FITTING FOR VLPUT DECKS 1
DR-1-UT 1 40" x 40" x 12" 62 GALLON 800 lb. 7" x 4½" 15" 51
DR-2-UT 2 53" x 29" x 16½" 66 GALLON 3,000 lb. 10½" x 4½" 17½" 63
DR-3-UT 3 77 /8" x 28 /8" x 5¾" 99 GALLON 4,500 lb. -- -- 67
7
7
DR-4-UT 4 53" x 53" x 11¾" 66 GALLON 6,000 lb. 14½" x 4" 21½" 90 model DR-4-UT
